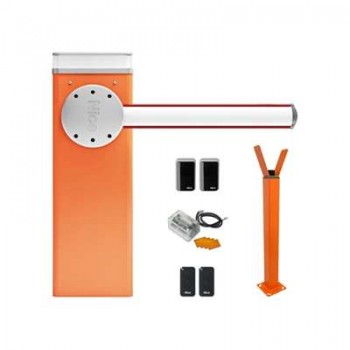

NICE M5BAR Parking Boom Gate Barrier 5 Meter in Dubai

NICE M5BAR Parking Boom Gate Barrier 5 meter in UAE

• NICE M5BAR Parking Gate Barrier up to 5m
• M-Bar Electromechanical road barrier system for control of road access
• For bars up from 3 to 7 m. 24 Vdc gear motor with built-in control unit.
• Simplified programming control unit with display
• and joystick to make setting operating parameters even faster.
• The control unit has an output to power 24 Vdc devices
• and two inputs to control loop detectors with the LP21 and LP22 accessories.
• Modular: bars are easily assembled using the aluminium eWpansion Ioint
• M3BAR With specific 5 m bar

NICE M5BAR Technical Data:

• Code M3BAR
• ELECTRICAL DATA
• Power supply (Vac 50/60 Hz) 230
• Power supply (Vdc) 24
• Power (W) 110
• PERFORMANCE DATA
• Speed min.Ŭmax. (s) 1,5 Ŭ 4
• Torque (Nm) 200
• Work cycle (cycles/hour) 3500
• DIMENSIONAL AND GENERAL DATA
• Protection level (IP) 54
• Working temp. (°C Min/Max) -20 Ŭ +55
• Dimensions (mm) 400x299x1215 h
• Weight (kg) 80

NICE M5BAR Kit Includes:

• 1 x NICE M5BAR Parking Gate Barrier.
• 1 x 5m Boom Bar.
• 1 x EPMB Photocell Sensor.
• 1 x Push Button.
• 1 x Fixing Plate.
