NICE ROX 1000 ROX1000KCE Sliding Gate Motor Kit – 1000 KG

NICE ROX1000 Automatic Sliding Gate Motor UAE

The NICE ROX 1000 ROX1000KCE is a powerful 230V automatic sliding gate motor kit designed for sliding gates weighing up to 1000 KG. Built for dependable residential, commercial and compatible industrial gate automation, the ROX1000 combines strong electromechanical construction, an integrated electronic control unit and built-in radio receiver in a compact and reliable sliding gate operator.

With 350 W nominal power, 24 Nm peak torque and a no-load speed of 11 m/min, the NICE ROX1000 sliding gate motor provides reliable automatic opening and closing for larger gates. It is suitable for villas, residential compounds, warehouses, commercial buildings, factories and private parking entrances throughout the UAE.

NICE ROX 1000 ROX1000 Key Features

• Designed for sliding gates weighing up to 1000 KG
• Powerful 230V AC electromechanical gate motor
• 350 W nominal power
• Peak torque: 24 Nm
• Nominal torque: 9 Nm
• No-load speed up to 11 m/min
• Nominal torque speed: 8.5 m/min
• Up to 20 operating cycles per hour
• Maximum continuous operating time: 4 minutes
• Integrated electronic control unit
• Built-in 433.92 MHz radio receiver
• Electromechanical limit switch system
• Step-by-step control input
• Photocell safety input
• STOP safety input
• Manual emergency release system
• IP44 protection rating
• Suitable for residential and commercial sliding gates

NICE ROX1000 Technical Specifications

Powerful 1000 KG Sliding Gate Automation

The NICE ROX 1000 is designed for larger sliding gates requiring more power than a standard residential gate motor. With a maximum gate capacity of 1000 KG and a peak torque of 24 Nm, the ROX1000 provides dependable movement for correctly installed and mechanically balanced sliding gates.

Gate weight is only one factor when selecting a motor. Gate length, wheel condition, track alignment, rolling resistance, wind exposure and daily operating frequency should also be checked before installation.

350 W 230V Gate Motor

The NICE ROX1000 operates directly from a 230V AC, 50/60 Hz power supply and has a nominal power rating of 350 W. Its robust electromechanical design makes it suitable for applications where simple, powerful and reliable sliding gate automation is required.

The ROX1000 is particularly suitable for properties that require a strong conventional 230V sliding gate operator without the more advanced electronics found in some 24V automation systems.

Integrated Control Unit

The NICE ROX1000 gate motor includes an integrated electronic control unit, creating a compact automatic gate solution without requiring a separate external control enclosure for normal operation.

The control system provides dedicated connections for gate commands and compatible safety accessories, including step-by-step command, STOP input and photocell safety input.

Built-In 433.92 MHz Radio Receiver

The NICE ROX1000 incorporates a 433.92 MHz four-channel radio receiver for compatible NICE remote controls. The integrated receiver simplifies remote-control automation by eliminating the need for a separate standard receiver in compatible installations.

According to NICE technical specifications, the incorporated receiver can memorize up to 1024 transmitters when programmed in the applicable operating mode.

Electromechanical Limit Switch

The NICE ROX 1000 sliding gate opener uses an electromechanical limit switch system to determine the gate's fully open and fully closed positions.

Correct limit switch adjustment is important for consistent stopping positions and reliable long-term gate operation. The opening and closing limits should be carefully adjusted during professional installation.

Photocell Safety Connection

The NICE ROX1000 control system provides a dedicated photocell input for compatible gate safety sensors. During automatic closing, interruption of the photocell beam can cause the control system to change the gate movement according to the programmed safety logic.

Photocells are strongly recommended for automatic sliding gates, particularly at residential driveways, commercial entrances and vehicle access points.

Manual Emergency Release

The NICE ROX1000 includes a manual release mechanism that allows the gate motor to be disengaged when required. This enables the sliding gate to be moved manually during a power failure, maintenance or other situations where automatic operation is unavailable.

The manual release system should remain accessible to authorized users after installation.

Operating Cycles & Usage

The NICE ROX1000 is rated for approximately 20 operating cycles per hour under the manufacturer's specified test conditions, with a maximum continuous operating time of approximately 4 minutes.

For entrances requiring significantly higher operating frequency, the required number of daily cycles should be evaluated before selecting the motor. A higher-duty NICE sliding gate operator may be more suitable for intensive commercial or industrial applications.

NICE ROX1000 Compatible Accessories

• NICE compatible remote controls
• NICE photocell safety sensors
• NICE flashing warning lights
• Nylon gate gear racks
• Steel gate gear racks
• Push button switches
• Key selector switches
• GSM gate opener systems
• Wi-Fi gate controllers
• RFID access control systems
• UHF long-range RFID readers
• Vehicle loop detectors
• Intercom and access control systems

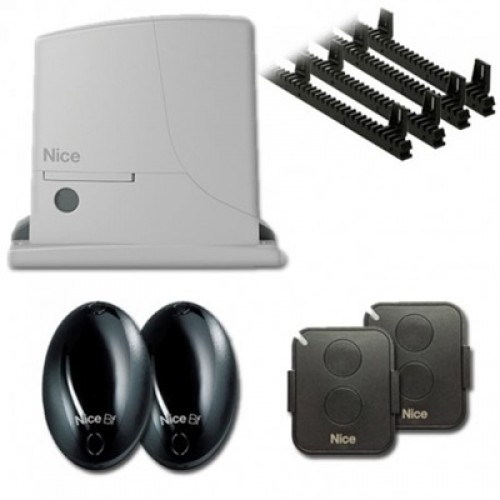

NICE ROX1000KCE Kit Includes

• 1 × NICE ROX1000 Sliding Gate Motor
• 1 × Integrated Electronic Control Unit
• 2 × NICE Remote Controls
• 1 × Photocell Safety Sensor Pair
• 1 × Flashing Warning Light
• 4 × 1 Metre Nylon Gear Rack Sections
• 1 × Push Button
• 1 × Foundation / Motor Fixing Plate
• Manual Release Keys

Note: Kit contents can vary according to stock, market and package configuration. Please confirm the exact accessories included with the ROX1000KCE package before ordering.

NICE ROX 1000 Applications

• Large villa sliding gates
• Residential compound entrances
• Apartment building gates
• Commercial sliding gates
• Office and business entrances
• Warehouse sliding gates
• Factory entrances
• Private parking gates
• Controlled vehicle entrances
• Sliding gates weighing up to 1000 KG

NICE ROX 1000 for Villas UAE

The NICE ROX1000 1000 KG gate motor is suitable for larger villa sliding gates where additional motor capacity is required. Its 230V electromechanical design provides a straightforward and powerful solution for automatic residential gate operation.

Before selecting the ROX1000, the actual gate weight and mechanical condition should be checked. A properly aligned sliding gate with good wheels and a clean, level track helps reduce motor load and improves long-term reliability.

NICE ROX1000 for Commercial Gates

The NICE ROX 1000 sliding gate motor can also be used for compatible commercial entrances, warehouses and private parking gates where the gate weight and required operating frequency remain within the manufacturer's specifications.

For high-traffic commercial or industrial entrances, the required duty cycle should be carefully considered. The ROX1000 is rated at approximately 20 cycles per hour and should not be selected only according to gate weight.

NICE ROX 1000 vs ROX 600

The NICE ROX1000 provides greater capacity and torque than the ROX600. The ROX1000 is designed for sliding gates up to 1000 KG with 350 W power and 24 Nm peak torque, while the ROX600 is designed for gates up to 600 KG with 300 W power and 18 Nm peak torque.

For heavier sliding gates, the ROX1000 provides the additional motor capacity required for reliable automatic operation.

NICE ROX 1000 vs ROBUS 1000

The NICE ROX1000 and NICE ROBUS 1000 RB1000 are both designed for sliding gates up to 1000 KG, but they use different automation technologies.

The ROX1000 is a straightforward 230V electromechanical gate motor with integrated control electronics and radio receiver. The ROBUS 1000 uses 24V motor technology with NICE BlueBUS and more advanced automation functions. The correct model depends on the gate, usage frequency and required features.

Professional NICE ROX1000 Installation UAE

Professional installation of the NICE ROX 1000 ROX1000KCE sliding gate motor is available throughout the UAE. Installation can include gate inspection, foundation preparation, motor mounting, gear rack installation, electromechanical limit switch adjustment, photocell installation, remote programming and complete control system setup.

After installation, the complete automatic gate should be tested for smooth opening and closing, correct limit positions, photocell safety operation, remote-control operation and manual emergency release.

NICE ROX1000 Repair & Spare Parts UAE

Technical support is available for NICE ROX1000 gate motor repair, programming, maintenance and spare parts. Compatible components may include electronic control components, remote controls, photocell sensors, flashing lights, limit switch components, capacitors, gear racks and other gate automation accessories.

Professional fault diagnosis is recommended before replacing electronic or mechanical components.

Why Choose NICE ROX 1000?

• Suitable for sliding gates up to 1000 KG
• Reliable NICE electromechanical technology
• 230V AC operation
• 350 W nominal power
• 24 Nm peak torque
• 11 m/min no-load speed
• 20 operating cycles per hour
• Integrated electronic control unit
• Built-in 433.92 MHz radio receiver
• Electromechanical limit switch
• Dedicated photocell safety input
• Manual emergency release
• IP44 protection rating
• Professional UAE installation available

Buy NICE ROX 1000 ROX1000KCE UAE

Buy the NICE ROX 1000 ROX1000KCE sliding gate motor in UAE for powerful and reliable automatic sliding gate operation. Contact us for product availability, price, UAE delivery, professional installation, programming, maintenance and NICE gate motor spare parts.

Supply and installation support is available across Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is the maximum gate weight for NICE ROX1000?
The NICE ROX1000 is designed for compatible sliding gates weighing up to 1000 KG.

Is NICE ROX1000 a 230V gate motor?
Yes. The ROX1000 operates from a 230V AC, 50/60 Hz mains power supply.

What is the power of NICE ROX1000?
The NICE ROX1000 has a nominal power rating of 350 W.

What is the torque of NICE ROX1000?
The ROX1000 provides a peak torque of 24 Nm and nominal torque of 9 Nm.

How fast is NICE ROX1000?
The ROX1000 has a no-load speed of 11 m/min, approximately 0.18 m/s. Its specified speed at nominal torque is 8.5 m/min, approximately 0.14 m/s.

How many cycles per hour can NICE ROX1000 perform?
NICE specifies approximately 20 operating cycles per hour under the manufacturer's stated operating conditions.

Does NICE ROX1000 have a built-in radio receiver?
Yes. The ROX1000 incorporates a 433.92 MHz four-channel radio receiver for compatible NICE remote controls.

What type of limit switch does NICE ROX1000 use?
The NICE ROX1000 uses an electromechanical limit switch system.

Is NICE ROX1000 suitable for commercial gates?
Yes. It can be used for compatible commercial sliding gates when the gate weight and required operating frequency are within the manufacturer's specifications.

What is the difference between NICE ROX600 and ROX1000?
The ROX600 is designed for gates up to 600 KG with 300 W power and 18 Nm peak torque. The ROX1000 increases capacity to 1000 KG with 350 W power and 24 Nm peak torque.

Do you provide NICE ROX1000 installation in UAE?
Yes. Professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman and other UAE locations.

Are NICE ROX1000 spare parts available in UAE?
Compatible NICE gate automation spare parts and accessories can be supplied according to the motor and installation requirements.
