NICE TOO3000KCE Swing Gate Motor Kit – 300 KG / 3 M

NICE TOO3000 230V Automatic Swing Gate Opener UAE

The NICE TOO3000KCE is a complete 230V automatic swing gate motor kit designed for residential double-leaf swing gates with leaves up to 3 metres long and 300 KG each. The kit uses two NICE TOO3000 surface-mounted telescopic electromechanical motors, combining compact Italian design, reliable mechanical construction and simple professional installation.

The NICE TOO3000 features a robust powder-coated aluminium structure, stainless-steel telescopic rod, convenient top-access connection compartment and manual release with a personalized NICE key. The current NICE system uses the MC800 electronic control unit for intelligent management of both gate motors and compatible safety and radio accessories.

With a 230V AC power supply, 250 W nominal power, 0.016 m/s movement speed and 24 cycles/hour, the TOO3000KCE is particularly suitable for villas, private homes, residential compounds and other residential swing gate applications throughout the UAE.

NICE TOO3000KCE Key Features

• Complete double swing gate automation kit
• Uses 2 × NICE TOO3000 telescopic gate motors
• Suitable for gate leaves up to 3 metres each
• Maximum gate weight up to 300 KG per leaf
• 230V AC electromechanical motor technology
• Nominal power: 250 W per motor
• Nominal current absorption: 1.1 A
• Linear movement speed: 0.016 m/s
• Nominal force: 300 N
• Maximum force up to approximately 2000 N
• Working cycle: 24 cycles/hour
• Telescopic linear actuator design
• Rod travel up to approximately 400 mm
• Stainless-steel telescopic rod
• Robust powder-coated aluminium body
• Surface-mounted installation
• No welding required with supplied adjustable mounting brackets
• Convenient upper connection compartment
• Manual release with personalized NICE key
• NICE MC800 recommended control unit
• Compatible with NICE radio and safety accessories
• IP54 weather protection
• Operating temperature: -20°C to +50°C
• Designed primarily for residential swing gate automation

NICE TOO3000 Technical Specifications

Brand	NICE
Kit Model	TOO3000KCE
Motor Model	TOO3000
Motor Quantity	2 Motors
Gate Type	Double-Leaf Swing Gate
Maximum Gate Leaf Length	3 Metres per Leaf
Maximum Gate Leaf Weight	300 KG per Leaf
Motor Type	Telescopic Electromechanical Gearmotor
Power Supply	230V AC
Nominal Current Absorption	1.1 A
Nominal Power	250 W
Nominal Force	300 N
Maximum Force	Up to Approx. 2000 N
Movement Speed	0.016 m/s – 16 mm/s
Work Cycle	24 Cycles/Hour
Maximum Rod Travel	Approx. 400 mm
Control Unit	NICE MC800
Protection Rating	IP54
Operating Temperature	-20°C to +50°C
Dimensions	700 × 100 × 177 mm
Weight per Motor	5.5 KG
Installation	Surface Mounted

Up to 300 KG per Gate Leaf

The NICE TOO3000 is designed for compatible swing gate leaves weighing up to approximately 300 KG each.

For a double-leaf entrance, TOO3000KCE uses two motors so that each gate leaf is operated independently by its own telescopic actuator.

Gate weight should never be considered alone. Gate length, hinge condition, wind resistance, installation geometry and the mechanical condition of the gate must also be checked before selecting the automation.

Up to 3 Metres per Gate Leaf

NICE specifies TOO3000KCE for swing gate leaves measuring up to approximately 3 metres each.

This means a compatible double swing gate entrance may have two leaves of up to approximately 3 metres each, subject to the manufacturer's operating limits and correct installation geometry.

300 KG / 3 M Gate Capacity

The current NICE catalogue describes TOO3000KCE as a kit for swing gates with leaves up to 3 metres and 300 KG.

For gates that exceed these limits, a larger NICE swing gate operator should be selected rather than operating TOO3000 continuously near or beyond its intended application range.

230V AC Telescopic Gate Motor

The NICE TOO3000 is a 230V AC telescopic electromechanical swing gate operator. It is designed for straightforward residential gate automation using a proven 230V motor architecture.

NICE recommends the MC800 electronic control unit for TOO3000 and TOO4500 230V motors.

250 W Motor Power

The NICE TOO3000 has a nominal absorbed power of approximately 250 W and nominal current absorption of approximately 1.1 A.

Some technical documentation also specifies higher short-duration maximum electrical values. For product comparison, the nominal 250 W / 1.1 A figures provide the clearest description of normal rated operation.

Up to 2000 N Maximum Force

The TOO3000 provides approximately 300 N nominal force, while detailed technical data for the motor gives maximum force up to approximately 2000 N.

The maximum figure should therefore not be presented as the continuous nominal operating force.

Correct rear and front bracket geometry is essential for transferring the available motor force efficiently to the swing gate.

16 mm/s Telescopic Movement

NICE specifies a linear actuator speed of approximately 0.016 m/s or 16 mm/s for TOO3000.

The actual time required to fully open a gate depends on installation dimensions, gate opening angle, actuator travel and control-unit settings.

24 Cycles per Hour

The TOO3000 has a published working frequency of approximately 24 cycles/hour.

This rating makes TOO3000 particularly suitable for normal residential applications rather than describing it as an intensive-use industrial motor.

Actual permissible usage can also be influenced by ambient temperature, gate resistance and installation conditions.

Telescopic Motor Design

The NICE TOO series uses a practical telescopic rod design. TOO3000 provides actuator travel up to approximately 400 mm, allowing it to adapt to a wide range of residential swing gate installations.

The longer TOO4500 version uses greater travel for longer gate leaves.

Stainless-Steel Telescopic Rod

NICE uses a stainless-steel rod in the TOO motor to provide reliable mechanical movement and resistance to normal outdoor environmental exposure.

This is combined with a strong aluminium motor structure for a durable yet relatively lightweight actuator.

Powder-Coated Aluminium Body

The NICE TOO motor uses a robust powder-coated aluminium structure. This construction provides mechanical strength while helping protect the actuator during outdoor gate automation applications.

The slim linear design also gives TOO3000 a clean appearance suitable for modern villa and residential gate designs.

IP54 Weather Protection

The NICE TOO3000 has an IP54 protection rating, providing protection appropriate for correctly installed outdoor gate automation.

Professional installation remains important in UAE conditions. Cable entries, electrical connections and control panels should be correctly sealed and positioned to minimise exposure to water, dust and excessive heat.

Easy Access Connection Compartment

NICE designed the TOO series with a convenient connection compartment accessible from the upper section of the motor.

This provides technicians with easier access to internal electrical connections during installation and servicing.

No Welding Required for Standard Bracket Installation

NICE highlights simplified installation as one of the advantages of the TOO series. The supplied fixing brackets and adjustable rear mounting arrangement allow installation without requiring the brackets themselves to be welded in the standard configuration.

The actual fixing method must still be suitable for the construction and strength of the gate and posts.

Manual Release with Personalized NICE Key

The TOO3000 includes a practical manual release mechanism located in the upper section of the motor and operated using a personalized NICE key.

During a power failure or maintenance procedure, the motor can be released so that the gate leaf can be moved manually.

The gate should always move freely and safely by hand before automatic motors are installed.

NICE MC800 Control Unit

NICE currently recommends the MC800 electronic control unit for TOO3000 and TOO4500 230V swing gate motors.

The MC800 manages both motors in a double-gate installation and provides connections and programming for compatible safety devices, radio controls and gate automation functions.

Pedestrian Opening

The complete TOO3000KCE automation can be configured with a pedestrian opening function through the compatible control system.

This allows partial access without requiring the complete double gate to perform a full vehicle-opening cycle.

Automatic Closing

The MC800 system can be configured for automatic closing after a programmed pause period.

When automatic closing is enabled, appropriate safety photocells and any other required safety devices must be correctly installed, configured and tested.

Phototest Safety Function

The compatible NICE control system supports Phototest functionality for appropriate photocell installations.

Phototest allows the control system to check the operation of connected safety photocells as part of the automation's safety management.

NICE Radio Control Compatibility

The TOO3000KCE can be integrated with compatible NICE radio receivers and remote-control systems.

The exact remote-control compatibility depends on the receiver fitted to the MC800 control unit, so the transmitter and receiver should always use the same NICE radio technology.

Professional Programming

Current NICE catalogue information lists the TOO platform as programmable using compatible professional NICE tools such as Pro-View and, with the appropriate interface, BiDi-WiFi and the MyNice Pro app.

Compatibility depends on the control unit and interface installed with the automation.

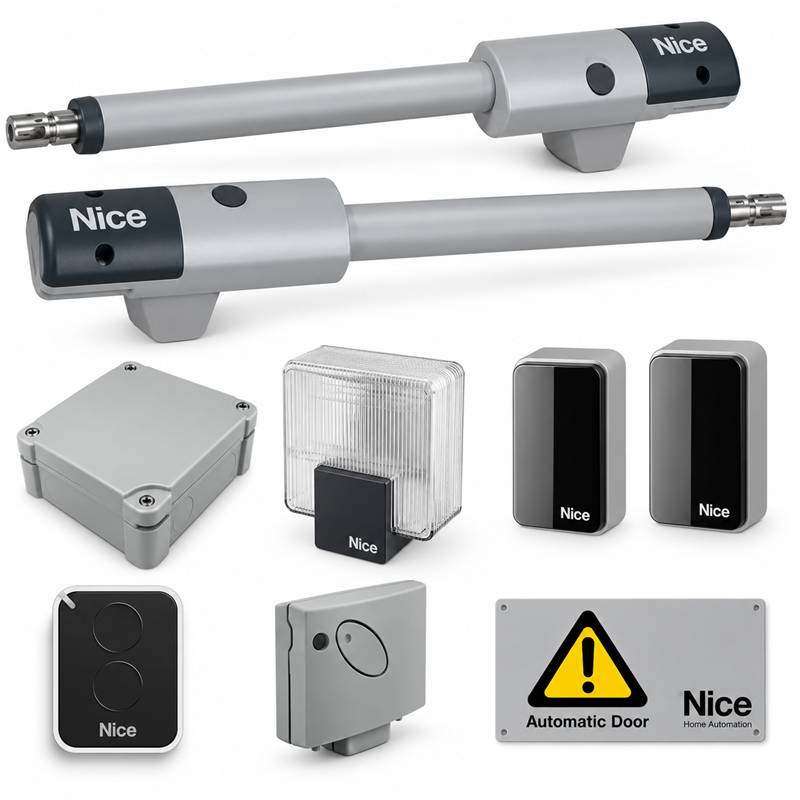

NICE TOO3000KCE Kit Contents

• 2 × NICE TOO3000 230V Telescopic Swing Gate Motors
• 1 × NICE MC800 Control Unit
• Compatible NICE Radio Receiver
• Compatible NICE Remote Controls
• 1 Pair × NICE Safety Photocells
• 1 × NICE Flashing Warning Light
• Motor Mounting Brackets
• Installation Accessories according to supplied package

Important: NICE states that kit contents may vary. The exact remote controls, receiver, photocells and flashing light should therefore match the actual TOO3000KCE package supplied in the UAE.

Compatible NICE Accessories

• NICE MC800 control unit
• NICE OXIBD compatible radio receiver
• NICE remote controls
• NICE EPM photocells
• NICE ELAC flashing light
• NICE key selector
• Push button switch
• Electric gate lock where required
• GSM gate opener
• Wi-Fi gate controller
• RFID access control
• Video intercom system

NICE TOO3000KCE Applications

• Residential villa swing gates
• Private house entrances
• Residential compounds
• Double-leaf driveway gates
• Private parking entrances
• Steel swing gates within operating limits
• Aluminium swing gates
• Gate leaves up to 3 metres
• Gate leaves up to 300 KG

NICE TOO3000KCE for Villas UAE

The NICE TOO3000KCE swing gate motor kit is particularly suitable for UAE villas using medium-size double swing gates.

The slim telescopic actuator has a clean appearance and can be surface mounted without the civil work required for an underground gate operator.

Surface-Mounted Swing Gate Automation

The TOO3000 is installed above ground between the gate post and gate leaf. This makes installation and future maintenance straightforward compared with an underground swing gate motor.

Correct positioning of the motor brackets is essential for obtaining the required opening angle and effective motor leverage.

Gate Weight, Length & Wind Load

A gate motor should never be selected using weight alone. For the NICE TOO3000, installers should check:

• Actual gate leaf length
• Actual gate leaf weight
• Gate construction and surface area
• Wind exposure
• Hinge condition
• Gate-post strength
• Opening angle
• Motor mounting geometry
• Daily operating frequency

Solid-panel gates can create substantial wind resistance even when their physical weight is within the motor's nominal limits.

Professional NICE TOO3000KCE Installation UAE

Professional installation of the NICE TOO3000KCE automatic swing gate motor is available throughout the UAE.

Installation can include gate inspection, motor mounting, bracket adjustment, MC800 control-panel installation, electrical wiring, photocell installation, flashing-light connection, radio receiver setup, remote programming, pedestrian opening, automatic closing and complete operational testing.

NICE TOO3000 Repair & Spare Parts UAE

Technical support is available for NICE TOO3000 repair, maintenance, programming and spare parts throughout the UAE.

Service requirements can include TOO3000 mechanical components, manual release parts, mounting brackets, motor components, MC800 control units, radio receivers, remote controls, photocells and flashing lights.

NICE TOO3000 vs TOO4500

Specification	TOO3000	TOO4500
Motor Voltage	230V AC	230V AC
Maximum Leaf Length	Up to 3 m	Up to 4.5 m
Maximum Published Leaf Weight	Up to 300 KG	Up to 250 KG
Telescopic Travel	Up to Approx. 400 mm	Up to Approx. 500 mm
Recommended Control Unit	MC800	MC800

Choose TOO3000 for compatible residential leaves up to approximately 3 metres. Choose TOO4500 when a longer telescopic actuator is required for compatible gate leaves up to approximately 4.5 metres.

NICE TOO3000 vs TOO3024

The TOO3000 is the 230V AC version, while the TOO3024 is the 24V DC version of the 3 metre TOO platform.

The 24V version uses a different electronic control system and provides features associated with NICE 24V automation. These models should therefore be maintained as separate products.

Why Choose NICE TOO3000KCE?

• Complete NICE double swing gate automation kit
• 2 × NICE TOO3000 telescopic motors
• Gate leaves up to 3 metres each
• Gate leaves up to 300 KG each
• 230V AC motor technology
• 250 W nominal motor power
• Up to approximately 2000 N maximum force
• 16 mm/s actuator speed
• 24 cycles/hour
• Stainless-steel telescopic rod
• Robust aluminium construction
• IP54 protection
• Easy surface-mounted installation
• Manual NICE key release
• NICE MC800 control unit
• Professional UAE installation available

Buy NICE TOO3000KCE Swing Gate Motor UAE

Buy the NICE TOO3000KCE 300 KG / 3 M swing gate motor kit in UAE for reliable residential automatic gate operation. Contact us for product availability, UAE delivery, professional installation, programming, maintenance, repair and NICE spare parts.

Supply and installation support is available across Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE TOO3000KCE?
TOO3000KCE is a NICE automatic swing gate kit based on two TOO3000 230V telescopic electromechanical gate motors.

What is the maximum gate leaf length?
NICE specifies gate leaves up to approximately 3 metres each.

What is the maximum gate leaf weight?
The current NICE catalogue specifies up to approximately 300 KG per leaf, subject to correct gate condition and installation.

Can TOO3000KCE automate a 6 metre double gate?
Potentially yes when the entrance consists of two suitable swing leaves of up to approximately 3 metres each. The manufacturer's 3 m limit applies to each individual leaf.

What voltage is NICE TOO3000?
TOO3000 operates from 230V AC.

What is the motor power?
The nominal motor power is approximately 250 W.

What is the maximum force?
Detailed TOO3000 technical data gives approximately 2000 N maximum force, with approximately 300 N nominal force.

How fast is NICE TOO3000?
The linear actuator speed is approximately 0.016 m/s or 16 mm/s.

How many cycles per hour can TOO3000 perform?
NICE specifies approximately 24 cycles/hour.

What control unit is recommended for TOO3000?
NICE's current catalogue recommends the MC800 for TOO3000 and TOO4500.

Does TOO3000 have manual release?
Yes. It includes a convenient manual release with a personalized NICE key.

Is TOO3000 suitable for industrial gates?
NICE primarily positions the TOO range for residential use. For high-frequency industrial applications, select an operator specifically rated for the required gate size and duty cycle.

Is TOO3000 suitable for UAE villas?
Yes. It is a suitable residential swing gate solution when gate dimensions, weight, wind load and installation geometry comply with NICE operating limits.

Do you provide NICE TOO3000KCE installation in UAE?
Yes. Professional installation, programming, maintenance and repair support is available throughout the UAE.
