NICE WINGO4KIT WG4000 Swing Gate Motor Kit – 400 KG

NICE WINGO4KIT Automatic Swing Gate Opener UAE

The NICE WINGO4KIT is a complete automatic swing gate motor kit designed for residential double-leaf swing gates with leaves up to 2 metres long and up to 400 KG per leaf. The kit uses two NICE WG4000 surface-mounted electromechanical linear gate motors powered by 230V AC.

Designed for reliable residential gate automation, the NICE WINGO4KIT combines strong 1500 N maximum thrust, quiet electromechanical operation, mechanical opening stops and the NICE MC800 electronic control system. It is suitable for villas, residential compounds and private properties throughout the UAE.

NICE WINGO4KIT Key Features

• Complete automatic double swing gate motor kit
• Uses 2 × NICE WG4000 electromechanical motors
• Suitable for swing gate leaves up to 2 metres each
• Maximum gate weight up to 400 KG per leaf
• 230V AC motor technology
• Maximum motor power absorption: 200 W
• Nominal absorbed power: 130 W
• Maximum current absorption: 1.5 A
• Maximum thrust: 1500 N
• Nominal thrust: 500 N
• No-load speed: 0.016 m/s
• Up to 30 cycles/hour at nominal torque
• Mechanical stop on opening
• Nice key manual release system
• Surface-mounted installation
• Built-in motor capacitor
• MC800 electronic control unit
• Automatic gate travel learning
• Automatic fault diagnostics
• Programmable automatic closing time
• Pedestrian opening function
• Programmable maintenance warning
• Compatible with NICE radio controls
• IP44 protection
• Designed for residential swing gate automation

NICE WG4000 Technical Specifications

Brand	NICE
Kit	WINGO4KIT / WINGO4BDKCE
Motor Model	WG4000
Motor Quantity	2 Motors
Gate Type	Double-Leaf Swing Gate
Maximum Leaf Length	2 Metres per Leaf
Maximum Leaf Weight	400 KG per Leaf
Power Supply	230V AC, 50 Hz
Maximum Current Absorption	1.5 A
Nominal Current Absorption	0.5 A
Maximum Absorbed Power	200 W
Nominal Absorbed Power	130 W
Maximum Thrust	1500 N
Nominal Thrust	500 N
No-Load Speed	0.016 m/s
Travel	320 mm
Cycles / Hour	30 at Nominal Torque
Limit / Travel Stop	Mechanical Opening Stop
Protection Rating	IP44
Operating Temperature	-20°C to +50°C
Insulation Class	F
Dimensions per Motor	770 × 98 × 95 mm
Weight per Motor	6 KG
Control Unit	NICE MC800

Maximum 400 KG per Gate Leaf

The NICE WG4000 motor used in WINGO4KIT is designed for compatible swing gate leaves weighing up to approximately 400 KG.

This rating applies together with the permitted gate-leaf length. Gate weight and gate length must always be considered together when choosing a swing gate motor.

Maximum Gate Leaf Length 2 Metres

NICE specifies the WG4000 for swing gate leaves up to 2 metres long. This means a double WINGO4KIT installation can automate two gate leaves, each up to approximately 2 metres, giving a total entrance width of approximately 4 metres where the gate geometry is suitable.

The product should therefore be described as 2 m per leaf, rather than simply saying “4 metre gate motor,” because NICE defines the operating limit per individual swing gate leaf.

Important Gate Weight & Length Selection

For swing gate motors, maximum leaf weight cannot be considered independently from leaf length. A longer gate places greater mechanical load on the motor because of leverage and wind pressure.

Before installation, the gate should be checked for leaf length, actual weight, hinge condition, opening angle, post dimensions and wind exposure.

1500 N Maximum Thrust

The NICE WG4000 produces up to approximately 1500 N maximum thrust. Nominal thrust is approximately 500 N.

Correct mounting geometry is important because the actual force applied to the gate depends on the positioning of the rear and front motor brackets.

230V NICE Swing Gate Motor

The WG4000 is a 230V AC electromechanical linear swing gate motor. Nice specifies maximum electrical absorption of approximately 1.5 A / 200 W.

During nominal operation the figures are approximately 0.5 A / 130 W.

30 Cycles per Hour

NICE specifies approximately 30 cycles per hour at nominal torque for the WG4000. This makes WINGO4KIT suitable for normal residential swing gate automation.

Actual operating frequency can be affected by gate weight, leaf length, environmental conditions, solid gate construction and wind exposure.

Estimated Motor Durability

NICE estimates Wingo motor durability between approximately 80,000 and 250,000 operating cycles, depending on the severity of the installation.

Factors that increase mechanical demand include heavier gate leaves, longer leaves, operation in demanding temperatures, solid or blind gates and installation in windy locations.

Mechanical Opening Stop

The NICE WG4000 incorporates a mechanical travel stop for the opening position. The stop can be adjusted during installation to determine the required fully open gate position.

Correct adjustment reduces the need for the gate leaf to impact heavily against an external opening stop.

Manual Release with NICE Key

The WG4000 includes a convenient manual release system operated by a NICE key. During a power failure or maintenance procedure, the motor can be mechanically released so the gate leaf can be moved manually.

The gate should always be mechanically balanced and move freely by hand before the automatic motors are installed.

Quiet & Reliable Linear Motor Design

The NICE Wingo design uses a compact internal mechanical arrangement with fewer moving components. This helps provide reliable and relatively quiet movement for residential swing gates.

The slim linear body also makes WINGO4KIT suitable for many villa gate installations where a discreet surface-mounted motor is preferred.

NICE MC800 Control Unit

The official WINGO4KIT configuration uses the NICE MC800 electronic control unit. The MC800 manages both WG4000 motors and provides the automation logic for opening, closing, safety devices and radio controls.

NICE lists simple programming, automatic travel learning, diagnostics, automatic closing-time programming, pedestrian opening and maintenance warning among the MC800 functions supplied with WINGO4KIT.

Automatic Gate Travel Learning

The MC800 control unit can automatically learn the opening and closing travel during system setup. This simplifies professional commissioning and allows the control unit to establish the operating sequence for both swing gate leaves.

Travel learning should only be performed after motors, brackets, mechanical stops and safety devices are correctly installed.

Pedestrian Opening Function

The NICE WINGO4KIT supports a pedestrian opening function. This can allow only part of the gate system to open for pedestrian access rather than performing a complete vehicle opening cycle.

The exact operation is configured through the MC800 control unit.

Automatic Closing

The MC800 allows the installer to configure an automatic closing pause time. After the gate has opened and the programmed pause has elapsed, the control unit can automatically initiate the closing movement.

Photocells and other appropriate safety devices should be correctly installed and tested whenever automatic closing is enabled.

Automatic Fault Diagnostics

The NICE MC800 control system includes automatic diagnostic functions that help installers identify faults and abnormal operating conditions.

This can simplify servicing when diagnosing problems with gate movement, safety devices or connected accessories.

Programmable Maintenance Warning

The MC800 supports a programmable maintenance warning function. This can help indicate when the gate automation has reached a configured level of use and should be professionally inspected.

Regular maintenance is especially useful in UAE installations exposed to heat, dust, sand and outdoor environmental conditions.

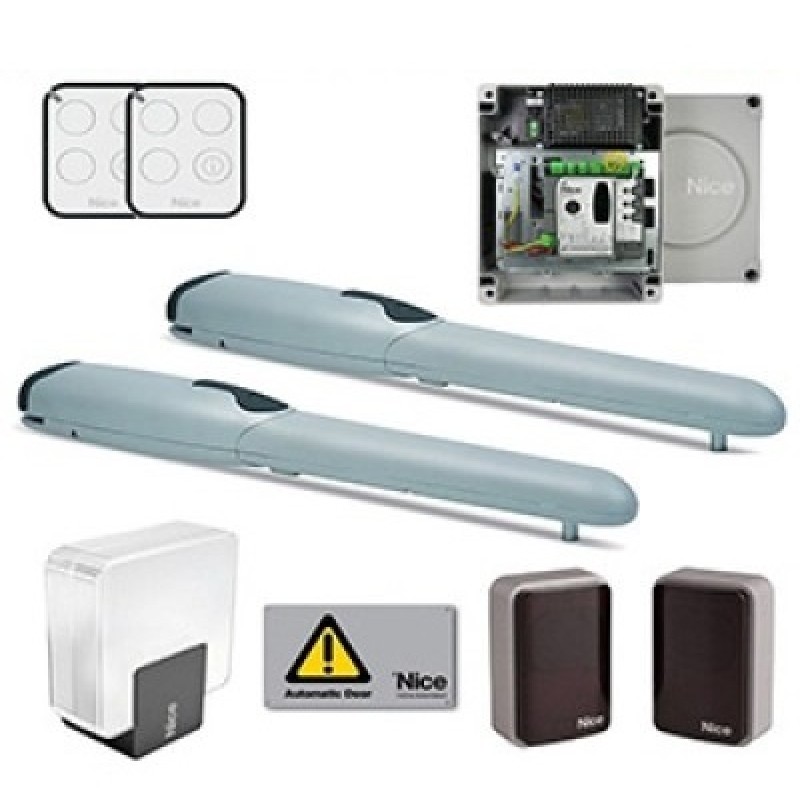

NICE WINGO4KIT Official Kit Contents

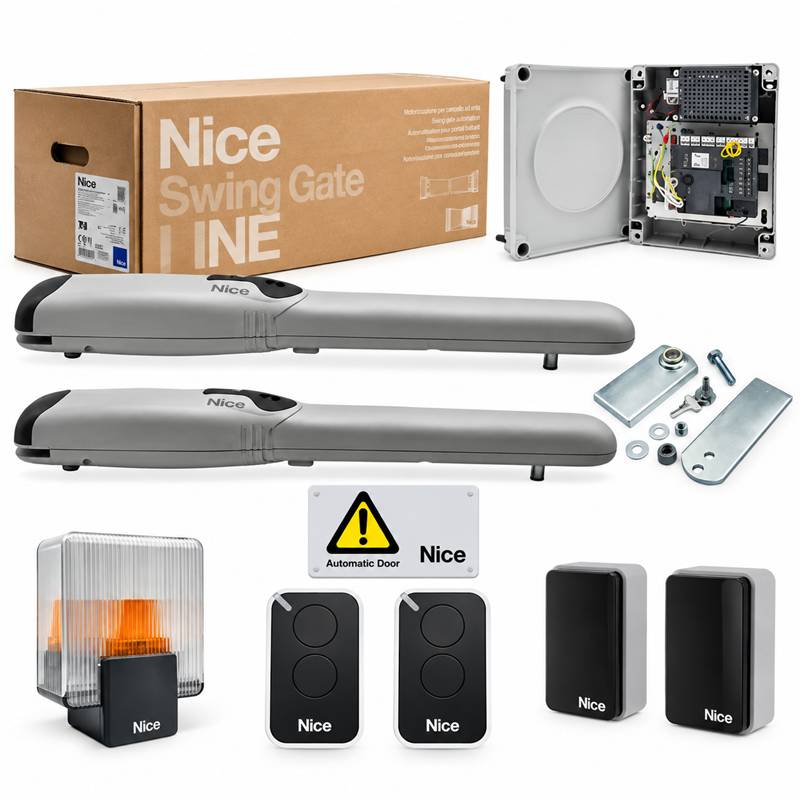

The current official NICE WINGO4BDKCE configuration includes:

• 2 × WG4000 surface-mounted electromechanical swing gate motors
• 2 × INTI2 433.92 MHz two-channel transmitters
• 1 × MC800 control unit
• 1 × Integrated OXIBD bidirectional radio receiver
• 1 Pair × EPM surface-mounted photocells
• 1 × ELAC LED flashing light with integrated antenna
• 1 × TS warning sign

Important: NICE states that kit contents can vary. Confirm the exact remote controls, receiver, photocells, flashing light and other accessories included with the stock supplied in the UAE before ordering.

Older NICE WINGO4KIT Package

Older WINGO4KIT catalogue versions may show different accessories, including a FLO2RE remote control, separate OXI receiver and EKS key selector. These are valid for older package generations, but they should not automatically be mixed with the latest WINGO4BDKCE configuration.

If your actual stock contains the older accessories, list them as your supplied package rather than describing them as the current factory kit.

NICE WINGO4KIT Applications

• Villa swing gates
• Residential double gates
• Private house entrances
• Residential compounds
• Small apartment entrances
• Private parking entrances
• Steel swing gates
• Aluminium swing gates
• Double-leaf gates up to 2 m per leaf
• Gate leaves up to approximately 400 KG each

NICE WINGO4KIT for Villas UAE

The NICE WINGO4KIT swing gate motor is particularly suitable for UAE villas using standard double-leaf driveway gates. Its surface-mounted design allows the motors to be fitted to the inside of the gate posts without requiring underground installation.

For solid gates exposed to strong wind, motor suitability should be checked carefully because wind load can substantially increase the force required to open or close the gate.

Suitable for Double Swing Gates

WINGO4KIT includes two WG4000 motors, making it suitable for a conventional two-leaf swing gate. The MC800 control unit manages the movement sequence of both leaves.

Proper gate-leaf delay and synchronization are important where one gate leaf overlaps the other during closing.

Surface-Mounted Installation

The WG4000 is installed above ground using front and rear mounting brackets. This makes installation and future servicing simpler than an underground swing gate motor system.

Correct bracket dimensions are extremely important because they determine the opening angle, gate speed and effective motor force.

Gate Opening Angle

The achievable opening angle depends on the installation geometry and the A/B bracket dimensions. NICE provides specific mounting charts for the WG4000 rather than one universal maximum opening angle for every installation.

The installer should therefore determine the required opening angle and post geometry before welding or fixing the motor brackets.

Professional NICE WINGO4KIT Installation UAE

Professional installation of the NICE WINGO4KIT WG4000 automatic swing gate opener is available throughout the UAE.

Installation can include gate inspection, motor bracket installation, electrical wiring, MC800 control panel installation, photocell wiring, flashing-light connection, receiver setup, remote programming, gate travel learning, pedestrian opening setup and automatic-closing programming.

Installation Checks Before Fitting WG4000

• Confirm each gate leaf is within the permitted weight and length limits
• Check hinges for excessive play or friction
• Confirm both leaves move freely by hand
• Check gate posts are strong enough for the motor brackets
• Calculate correct rear bracket dimensions
• Check required gate opening angle
• Assess wind loading for solid gate leaves
• Install and test photocell safety devices
• Set opening mechanical stops correctly
• Program and test automatic closing carefully

NICE WINGO4KIT Repair & Spare Parts UAE

Repair and technical support are available for NICE WINGO4KIT, WG4000 and MC800 automation systems throughout the UAE.

Common replacement and service items can include motor capacitors, WG4000 mechanical components, manual release parts, mounting brackets, MC800 control units, radio receivers, NICE remote controls, photocells, flashing lights and wiring accessories.

NICE WINGO4KIT vs WINGO5KIT

The WINGO4KIT is designed primarily for gate leaves up to approximately 2 metres, while the larger WINGO5 platform is designed for longer swing gate leaves.

WINGO4KIT is therefore normally a better match for standard residential villa gates, while WINGO5 should be considered where longer leaves require the longer-stroke motor.

NICE WG4000 vs WG4024

The WG4000 used in WINGO4KIT is a 230V AC motor, whereas WG4024 is a 24V DC version.

Both are designed for gate leaves up to approximately 2 metres, but their electrical characteristics, compatible control units and operating performance differ. They should therefore be maintained as separate product variants.

Why Choose NICE WINGO4KIT?

• Complete NICE double swing gate automation kit
• Two genuine NICE WG4000 motors
• Suitable for gates up to 400 KG per leaf
• Suitable for leaves up to 2 metres each
• 230V AC reliable motor technology
• 1500 N maximum thrust
• 30 cycles/hour at nominal torque
• Mechanical opening stop
• Manual NICE key release
• MC800 control system
• Automatic travel learning
• Pedestrian opening
• Automatic closing programming
• Fault diagnostics
• Maintenance warning function
• Professional UAE installation available

Buy NICE WINGO4KIT Swing Gate Motor UAE

Buy the NICE WINGO4KIT WG4000 swing gate motor kit in UAE for reliable automatic opening and closing of residential double swing gates. Contact us for product availability, UAE delivery, professional installation, programming, repair and NICE spare parts.

Supply and installation support is available across Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What motor is used in NICE WINGO4KIT?
WINGO4KIT uses 2 × NICE WG4000 surface-mounted electromechanical swing gate motors.

What is the maximum gate leaf length for WG4000?
NICE specifies a maximum leaf length of approximately 2 metres per leaf.

What is the maximum gate weight for NICE WG4000?
The WG4000 is rated for compatible gate leaves weighing up to approximately 400 KG per leaf, subject to the gate length and installation conditions.

Can WINGO4KIT automate a 4 metre wide gate?
Yes, where the entrance consists of two suitable swing gate leaves of approximately 2 metres each. The 2 m specification applies to each individual leaf.

What voltage is NICE WINGO4KIT?
The WG4000 motors operate from 230V AC, 50 Hz.

What is the power of NICE WG4000?
Maximum absorbed power is approximately 200 W, while nominal absorbed power is approximately 130 W.

What is the thrust of NICE WG4000?
Maximum thrust is approximately 1500 N, while nominal thrust is approximately 500 N.

How fast is NICE WG4000?
NICE specifies a no-load linear speed of approximately 0.016 m/s.

How many cycles per hour can NICE WG4000 perform?
NICE specifies approximately 30 cycles/hour at nominal torque.

What control board does WINGO4KIT use?
The official current WINGO4KIT configuration uses the NICE MC800 control unit.

Does WINGO4KIT include photocells?
The current official WINGO4BDKCE package includes one pair of NICE EPM photocells. Exact kit contents should still be confirmed before ordering.

Does WINGO4KIT have manual release?
Yes. Each WG4000 motor has a manual release operated using the supplied NICE key.

Does NICE WG4000 need a gate stopper?
The motor has an adjustable mechanical stop for the opening position. The complete gate installation should still be configured according to NICE instructions and the actual gate mechanics.

Is NICE WINGO4KIT suitable for villas?
Yes. NICE specifies Wingo for residential swing gate automation, making WINGO4KIT suitable for many UAE villa and private residential gate installations.

Do you provide NICE WINGO4KIT installation in UAE?
Yes. Professional installation, programming, maintenance and repair support can be provided throughout the UAE.
