NICE WINGO WG3524HS High-Speed Swing Gate Motor – Up to 3 M

NICE WG3524HS High-Speed Automatic Swing Gate Opener UAE

The NICE WINGO WG3524HS is a professional 24V DC high-speed swing gate motor designed for residential automatic gates requiring significantly faster opening and closing than conventional swing gate operators. The WG3524HS combines high-speed movement, magnetic encoder technology, precise obstacle detection and smooth electronic control for premium villa and residential gate automation.

NICE designed the WINGO 3524 HS for compatible swing gate leaves up to approximately 3 metres or 200 KG, subject to the official gate weight-versus-leaf-length operating limits. With a linear motor speed of up to 0.04 m/s, a correctly installed gate can complete approximately a 90° opening in around 10 seconds under standard test conditions.

The WG3524HS provides up to 1500 N force, operates from 24V DC and uses a magnetic encoder for accurate movement control and obstacle detection. It is an excellent solution for villas, private homes and residential entrances throughout the UAE where faster vehicle access is required.

NICE WINGO WG3524HS Key Features

• High-speed automatic swing gate motor
• Official NICE model: WG3524HS
• 24V DC electromechanical gearmotor
• Suitable for residential swing gate automation
• Gate leaves up to approximately 3 metres
• Gate weight up to approximately 200 KG, depending on leaf length
• High-speed linear movement: 0.04 m/s
• Approximately 10-second 90° opening under standard installation conditions
• Maximum force: 1500 N
• Power: 120 W
• Maximum current absorption: 5 A
• Working cycle: 30 cycles/hour
• Magnetic encoder
• Precise obstacle detection
• Electronic slowdown on opening and closing
• Mechanical stops for opening and closing
• Manual release with personalized NICE key
• Optional battery backup with compatible control unit
• Surface-mounted installation
• IP44 weather protection
• Operating temperature: -20°C to +50°C

NICE WG3524HS Technical Specifications

Brand	NICE
Series	WINGO Hi-Speed
Model	WG3524HS
Product Type	High-Speed Swing Gate Motor
Motor Technology	24V DC Electromechanical Gearmotor
Maximum Gate Leaf Length	Up to 3 Metres
Maximum Gate Leaf Weight	Up to Approx. 200 KG – Depends on Leaf Length
Motor Power Supply	24V DC
Current Absorption	5 A
Motor Power	120 W
Maximum Speed	0.04 m/s – 40 mm/s
Maximum Force	1500 N
Work Cycle	30 Cycles/Hour
Approx. 90° Opening Time	About 10 Seconds*
Position Detection	Magnetic Encoder
Mechanical Stops	Opening & Closing
Protection Rating	IP44
Operating Temperature	-20°C to +50°C
Dimensions	920 × 98 × 95 mm
Weight	6 KG
Installation	Surface Mounted

*Approximate opening time based on a standard installation and excluding acceleration and deceleration phases. Actual opening time depends on gate geometry, opening angle and programming.

High-Speed 10-Second Gate Opening

The main advantage of the NICE WG3524HS is speed. NICE developed this model specifically as part of its Hi-Speed automation range.

The actuator reaches a linear movement speed of approximately 40 mm/s or 0.04 m/s. Under standard installation conditions, NICE specifies approximately 10 seconds for a 90° gate opening.

This makes the WG3524HS particularly useful for villa driveways where reducing the amount of time a vehicle waits outside the property is important.

Up to 3 Metres per Gate Leaf

NICE specifies the WG3524HS for compatible swing gate leaves measuring up to approximately 3 metres.

For a double swing gate system, two WG3524HS motors can therefore be used for two compatible leaves, each up to approximately 3 metres subject to the manufacturer's operating limits.

Important Gate Weight & Length Limits

The WG3524HS should not be described simply as a fixed 200 KG motor for every gate length. The maximum permitted gate weight decreases as the leaf becomes longer.

NICE provides an official operating-limit graph showing approximately 200 KG capacity on shorter gate leaves, with the permitted weight progressively decreasing as the leaf approaches the full 3 metre length.

Always check both the actual gate weight and gate leaf length before selecting the motor.

1500 N Maximum Force

The NICE WG3524HS provides up to approximately 1500 N maximum force. This gives the actuator strong movement capability while maintaining the high-speed performance required by the WINGO HS design.

The actual force transferred to the gate depends heavily on installation geometry. Correct positioning of the front and rear mounting brackets is therefore essential.

24V DC Motor Technology

The NICE WG3524HS uses a 24V DC electromechanical motor rather than the 230V AC architecture used by WG4000 and WG5000.

The 24V platform enables advanced electronic movement management, encoder feedback, obstacle detection, acceleration/deceleration control and optional battery backup when used with the appropriate NICE control system.

120 W Motor Power

NICE specifies approximately 120 W motor power with maximum current absorption of approximately 5 A at 24V DC.

The power supply for the complete automation is provided through the compatible NICE electronic control unit rather than connecting the motor directly to a 230V mains supply.

Magnetic Encoder

A major feature of the WG3524HS is its integrated magnetic encoder. The encoder provides accurate feedback about motor movement and position to the electronic control system.

NICE specifically highlights the magnetic encoder for maintaining programmed values over time and enabling precise obstacle detection.

Precise Obstacle Detection

When used with the appropriate NICE control system and correctly configured, encoder feedback helps the automation identify unexpected resistance during gate movement.

The control unit can react according to the programmed safety logic if an obstacle or abnormal mechanical resistance is detected.

Photocells and any other safety devices required for the installation should still be correctly installed and tested.

Electronic Slowdown

The compatible NICE control platform provides deceleration during opening and closing. Instead of operating at full high speed all the way to the final gate position, the motor can slow before reaching its travel limit.

This provides smoother operation and helps reduce mechanical impact on the gate, hinges, brackets and motor assembly.

Mechanical Stops on Opening & Closing

The NICE WG3524HS is supplied with pre-assembled mechanical travel stops for both opening and closing.

These mechanical stops simplify installation and allow the installer to establish the required travel positions according to the gate geometry.

Manual Release with NICE Key

The WG3524HS includes a convenient manual release mechanism operated using a personalized NICE key.

If manual operation is required during maintenance or a power failure without battery backup, the motor can be mechanically released so the gate can be moved by hand.

30 Cycles per Hour

NICE specifies a work cycle of approximately 30 cycles/hour for WG3524HS.

This makes the motor suitable for residential gate automation where fast access is required. The actual allowable frequency of operation depends on gate weight, gate length, environmental conditions and installation severity.

Optional Battery Backup

When WG3524HS is operated with a compatible NICE 24V control unit, optional rechargeable battery backup can allow gate operation during a mains power failure.

For example, NICE's MC824H control platform supports the optional PS324 backup battery.

NICE MC824H Control Unit

The NICE MC824H is an excellent control-unit choice for a complete WG3524HS high-speed swing gate system.

The MC824H supports advanced functions including automatic position learning, automatic diagnostics, programmable pause time, pedestrian opening, opening and closing slowdown, obstacle detection and optional PS324 battery backup.

NICE BlueBUS Technology

When the WG3524HS is installed with a compatible BlueBUS control unit such as MC824H, compatible NICE safety accessories can use BlueBUS two-wire technology.

This simplifies the connection of compatible photocells and other safety devices while allowing communication with the electronic control system.

Compatible NICE Control Units

NICE documentation lists WG3524HS compatibility with several control platforms depending on system generation and required functions, including:

• NICE MC824H
• NICE MC824HR
• NICE MC424L
• NICE MC800
• Other compatible NICE control systems according to installation requirements

For a new high-speed 24V installation, the control unit should be selected specifically for WG3524HS and the required safety, radio and backup functions.

Compatible NICE Photocells

The WG3524HS can be integrated with compatible NICE photocell systems according to the selected control unit, including conventional and BlueBUS variants.

Compatible families include NICE EPM, EPMB, EPL, EPLB, EPS, EPSB, F210 and F210B according to system configuration.

Compatible NICE Remote Controls

Radio-control compatibility depends on the receiver installed in the control panel. NICE documentation lists compatible transmitter families including ERA ONE, ERA INTI, ERA FLOR and NICEWAY.

For current installations, use remote controls that match the exact receiver installed in the control unit.

Compatible NICE Accessories

• NICE MC824H control unit
• NICE MC824HR control unit
• NICE OXI compatible radio receiver
• NICE remote controls
• NICE EPMB BlueBUS photocells
• NICE EPM photocells
• NICE ELDC flashing light
• NICE ELAC flashing light
• NICE PS324 backup battery
• Push button switches
• Key selector switches
• Electric gate locks where required
• Safety edges
• GSM gate opener
• Wi-Fi gate control
• RFID access control
• Intercom systems

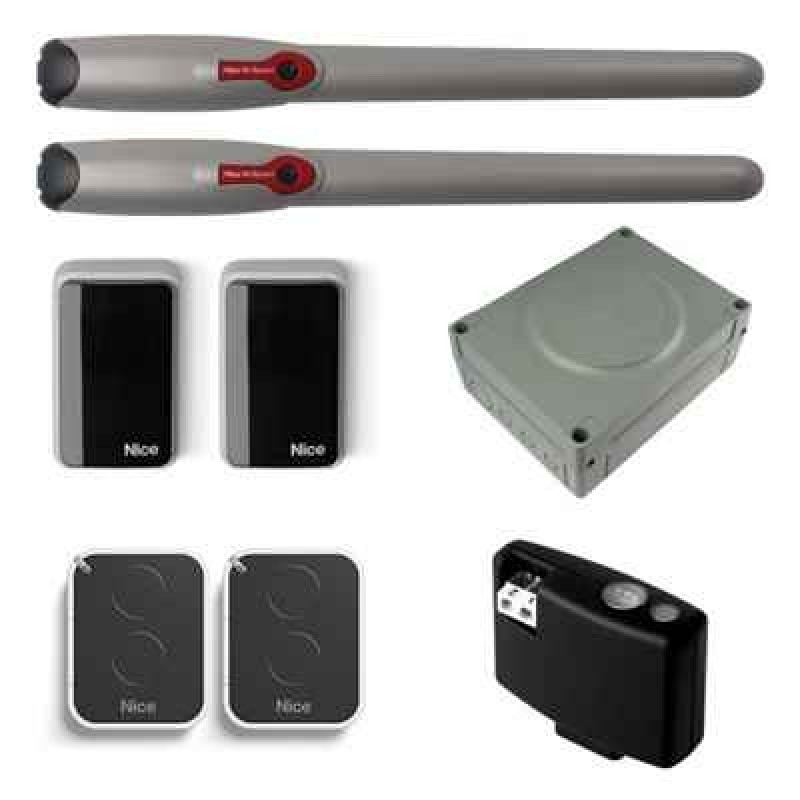

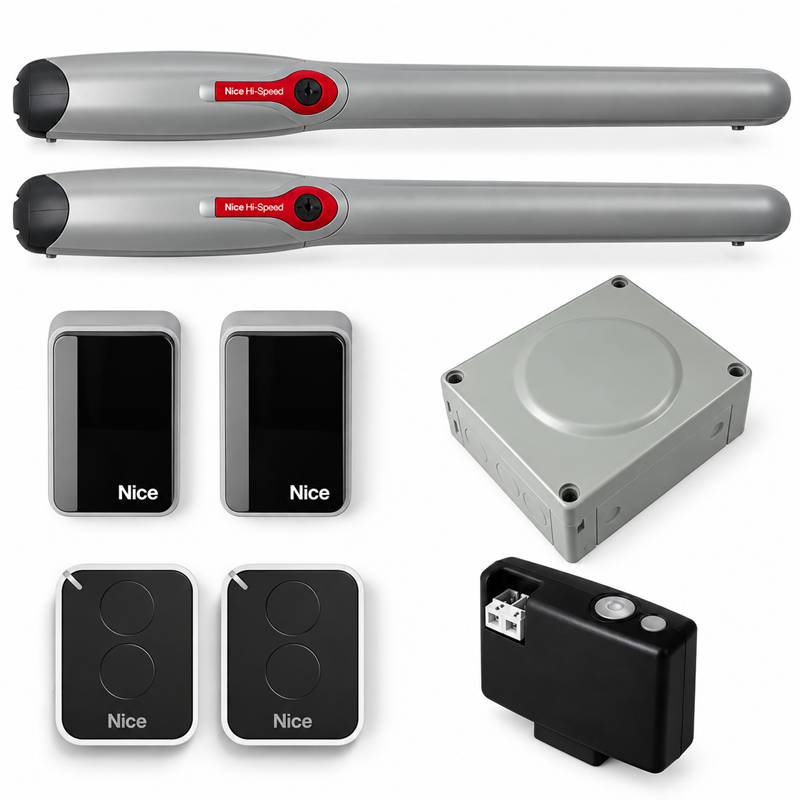

Recommended Double Gate Package

• 2 × NICE WG3524HS High-Speed Swing Gate Motors
• 1 × NICE MC824H Compatible Control Unit
• 1 × Compatible NICE Radio Receiver
• 2 × Compatible NICE Remote Controls
• 1 Pair × NICE BlueBUS Photocells
• 1 × NICE Flashing Warning Light
• Motor Mounting Brackets
• Mechanical Travel Stops

Important: The WG3524HS is also sold as an individual motor. Package contents depend on the actual kit supplied by the seller. Confirm the exact control unit, receiver, remote controls, photocells and other accessories before ordering.

NICE WG3524HS Applications

• Villa swing gates
• Luxury residential entrances
• Private homes
• Residential compounds
• Fast-opening driveway gates
• Private parking entrances
• Steel swing gates within operating limits
• Aluminium swing gates
• Single swing gates
• Double swing gates
• Gate leaves up to approximately 3 metres

NICE WG3524HS for Villas UAE

The NICE WINGO WG3524HS high-speed swing gate motor is particularly suitable for UAE villas where fast driveway access is preferred.

A conventional swing gate can take considerably longer to fully open. With WG3524HS, a correctly designed standard installation can achieve approximately a 90° opening in around 10 seconds.

Why High-Speed Gate Opening Matters

Faster gate movement reduces the amount of time a vehicle needs to wait outside a property while the gate opens.

This can improve convenience at villas located near busy roads and helps reduce unnecessary waiting time when entering or leaving the property.

Surface-Mounted Installation

The WG3524HS is a surface-mounted linear actuator installed between the gate post and gate leaf.

This allows easier access for servicing than an underground gate motor and avoids the need to install an underground foundation box.

Correct Installation Geometry

High-speed swing gate motors require particularly accurate installation geometry. Front and rear motor brackets must be positioned according to NICE mounting dimensions.

Incorrect geometry can reduce opening angle, increase mechanical stress, reduce effective motor force or prevent the motor from achieving its intended high-speed performance.

Wind Load Consideration

Solid swing gates can create substantial wind resistance. This is especially important with long gate leaves and high-speed automation.

For UAE installations, motor selection should consider gate weight, gate length, gate surface area, wind exposure, hinge condition and opening geometry.

Professional NICE WG3524HS Installation UAE

Professional installation of the NICE WG3524HS high-speed swing gate motor is available throughout the UAE.

Installation can include gate inspection, motor bracket installation, control-panel wiring, BlueBUS photocells, flashing light, receiver setup, remote-control programming, travel learning, obstacle-detection adjustment, slowdown programming and complete safety testing.

NICE WG3524HS Repair & Spare Parts UAE

Technical support is available for NICE WG3524HS repair, programming, maintenance and spare parts.

Compatible service items can include WG3524HS mechanical components, encoder-related parts, mounting brackets, manual release components, MC824H control units, radio receivers, remote controls, photocells, flashing lights and PS324 backup batteries.

NICE WG3524HS vs WG5000

Specification	WG3524HS	WG5000
Motor Voltage	24V DC	230V AC
Primary Design	High Speed	Long Residential Gates
Maximum Leaf Length	Up to 3 m	Up to 3.5 m
Speed	0.04 m/s	0.013 m/s
Force	1500 N	1700 N
Encoder	Magnetic Encoder	No Magnetic Encoder
Cycles / Hour	30	30
Motor Length	920 mm	920 mm

Choose WG3524HS when fast opening, 24V technology and encoder-controlled movement are priorities. Choose WG5000 when the installation requires a conventional 230V motor for longer compatible gate leaves up to 3.5 metres.

NICE WG3524HS vs Standard WINGO

The WG3524HS is substantially faster than conventional NICE WINGO motors. Its 0.04 m/s linear speed is specifically designed for rapid gate movement.

The standard WINGO range remains suitable for normal residential automation, while WG3524HS is the better choice where reducing opening and closing time is important.

Why Choose NICE WINGO WG3524HS?

• Genuine NICE Hi-Speed swing gate technology
• Fast 90° opening in approximately 10 seconds
• 24V DC motor
• 0.04 m/s high-speed movement
• 1500 N maximum force
• 120 W motor power
• 30 cycles/hour
• Magnetic encoder
• Precise obstacle detection
• Electronic opening and closing slowdown
• Mechanical opening and closing stops
• Manual NICE key release
• Optional battery backup
• Ideal for premium villa entrances
• Professional UAE installation available

Buy NICE WG3524HS High-Speed Gate Motor UAE

Buy the NICE WINGO WG3524HS high-speed swing gate motor in UAE for fast, smooth and reliable residential gate automation. Contact us for product availability, UAE delivery, professional installation, programming, repair and NICE spare parts.

Supply and installation support is available across Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE WG3524HS?
The WG3524HS is a 24V DC high-speed NICE WINGO electromechanical swing gate motor with magnetic encoder.

What is the maximum gate leaf length?
NICE's main Hi-Speed catalogue specifies compatible swing gate leaves up to approximately 3 metres.

What is the maximum gate weight?
The official operating range reaches approximately 200 KG with shorter gate leaves. The permitted weight decreases as the gate leaf becomes longer.

Can WG3524HS handle 200 KG at 3 metres?
No. The 200 KG figure should not be treated as the capacity at the full 3 metre leaf length. NICE's operating-limit graph shows a significantly lower allowable weight near 3 metres.

How fast is NICE WG3524HS?
The actuator reaches approximately 0.04 m/s or 40 mm/s.

How long does the gate take to open?
NICE states approximately 10 seconds for a 90° opening in a standard installation, excluding acceleration and deceleration phases.

What is the motor voltage?
WG3524HS is a 24V DC motor.

What is the motor power?
NICE specifies approximately 120 W.

What is the maximum force?
The WG3524HS provides approximately 1500 N maximum force.

How many cycles per hour can WG3524HS perform?
NICE specifies approximately 30 cycles/hour.

Does WG3524HS have an encoder?
Yes. It uses a magnetic encoder for accurate movement feedback and obstacle detection.

Does WG3524HS have mechanical stops?
Yes. NICE specifies pre-assembled mechanical stops for both opening and closing.

Can WG3524HS work during a power failure?
Optional battery backup is available when the motor is used with a compatible NICE control unit such as MC824H and PS324 battery.

Is WG3524HS suitable for UAE villas?
Yes. It is particularly suitable for residential and villa entrances where fast gate opening is required, provided the gate complies with NICE operating limits.

Do you provide NICE WG3524HS installation in UAE?
Yes. Professional installation, programming, maintenance and repair support is available throughout the UAE.
