NICE OXIFM 868.46 MHz Plug-In Radio Receiver UAE

NICE OXIFM 4-Channel O-Code Gate Receiver for Opera Systems

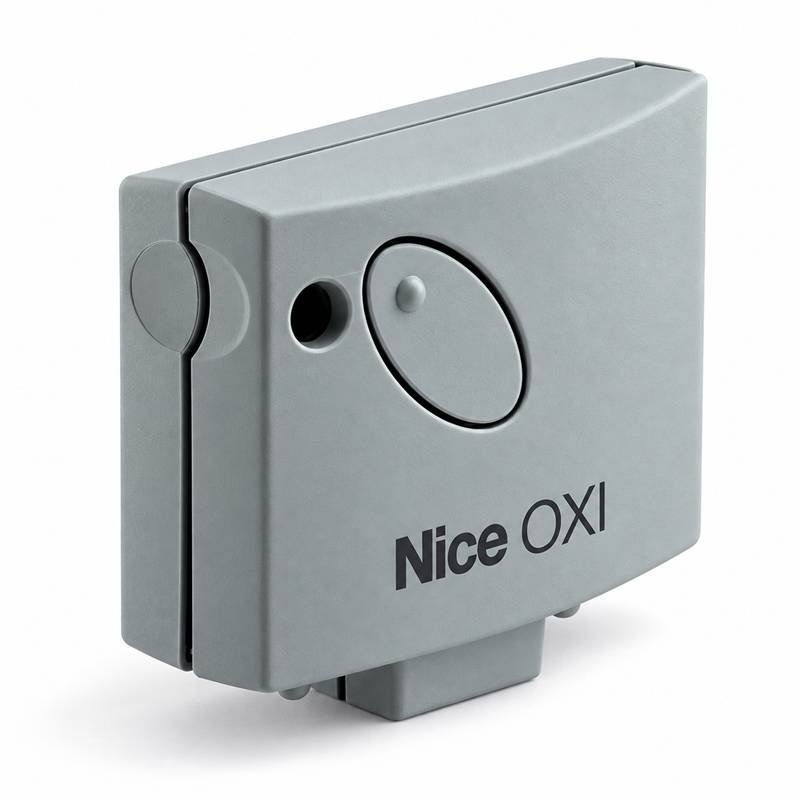

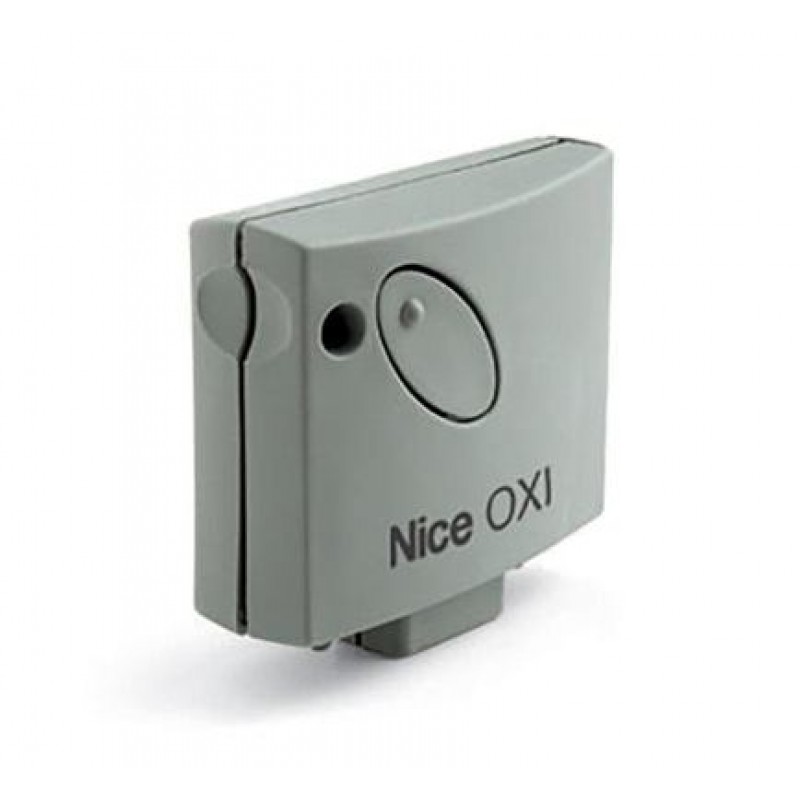

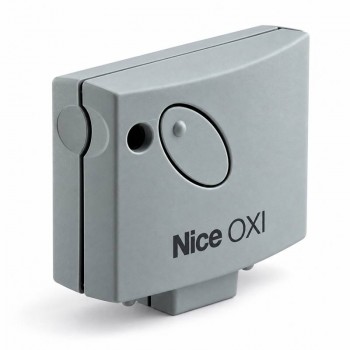

The NICE OXIFM Radio Receiver is a genuine NICE 868.46 MHz plug-in receiver designed for compatible NICE automatic gates, garage doors, parking barriers and other automation control systems.

The OXIFM belongs to the NICE Opera receiver family and uses O-Code radio technology. It provides up to 4 standard receiver channels through the NICE SM connector and can support up to 15 commands through BusT4 on compatible Opera automation systems.

Unlike the 433.92 MHz NICE OXI and OXIBD receiver families, the OXIFM operates specifically at 868.46 MHz. Therefore, transmitter frequency and radio protocol must be checked carefully before programming.

NICE OXIFM Key Features

• Original NICE radio receiver
• Official model: OXIFM
• 868.46 MHz reception frequency
• NICE O-Code radio decoding
• 4 standard channels through SM connector
• Up to 15 commands through BusT4 on compatible Opera systems
• Plug-in receiver design
• NICE Opera system support
• 5 VDC power supply from compatible NICE control unit
• 30 mA maximum current consumption
• 50 Ω input impedance
• Receiver sensitivity greater than 0.8 µV for valid signals
• IP30 protection rating
• Operating temperature -20°C to +55°C
• Compact 50 × 19 × 45 mm dimensions
• Approx. 20 g weight
• Suitable for compatible NICE gate, barrier and garage automation

NICE OXIFM Technical Specifications

Brand	NICE
Model	OXIFM
Product Type	Plug-In Radio Receiver
Reception Frequency	868.46 MHz
Transmission Frequency	None – OXIFM has no built-in transmitter
Input Impedance	50 Ω
Receiver Sensitivity	>0.8 µV for Successful Signals
Radio Coding	NICE O-Code
Standard Channels	4 via SM Connector
BusT4 Commands	Up to 15 on Compatible Opera Systems
Relay Contacts	No Separate External Relay Contacts
Power Supply	5 VDC from Compatible NICE Control Unit
Maximum Current Draw	30 mA
Protection Rating	IP30
Operating Temperature	-20°C to +55°C
Dimensions	50 × 19 × 45 mm
Weight	Approx. 20 g

868.46 MHz Radio Frequency

The NICE OXIFM operates at 868.46 MHz.

This is the most important technical specification for this receiver and should be clearly displayed in the product name, technical table and compatibility information.

Do not describe OXIFM as a 433.92 MHz receiver.

OXIFM Is Not a 433.92 MHz Receiver

NICE separates its receiver families by radio frequency.

OXIFM = 868.46 MHz

OXI / OXIBD = 433.92 MHz families

This means a standard 433.92 MHz transmitter should not be assumed compatible with OXIFM.

NICE O-Code Technology

The official NICE technical specification lists O-Code as the radio coding system used by OXIFM.

Compatibility therefore requires both:

• Correct 868.46 MHz operating frequency
• Compatible NICE O-Code radio protocol

Frequency Alone Does Not Guarantee Compatibility

An 868 MHz transmitter is not automatically compatible simply because its frequency is close to 868.46 MHz.

The transmitter must use the correct NICE-supported coding protocol.

Always verify:

• Remote model
• Exact radio frequency
• O-Code compatibility
• Receiver programming procedure
• Available receiver memory

4 Standard Receiver Channels

NICE specifies 4 channels for OXIFM through its plug-in connector.

The exact automation functions assigned to these channels depend on the connected control unit and programming method.

Up to 15 Commands Through BusT4

On compatible NICE Opera systems, the receiver can provide up to 15 functions through BusT4.

This extended functionality depends on the automation control unit supporting the NICE Opera / BusT4 system.

NICE Opera System

The OXIFM is part of the NICE Opera-compatible receiver family.

Opera allows compatible NICE automation components to exchange additional information and support extended programming and control functions through BusT4.

Plug-In Receiver Design

The NICE OXIFM is a plug-in receiver with connector.

It is designed to plug directly into the appropriate receiver socket of a compatible NICE control unit.

It should not be described as a flush-mount wall receiver.

Not a Flush-Mount Access-Control Receiver

The term “flush mount” normally refers to equipment recessed into a wall, electrical box or panel.

That is not the correct description of OXIFM.

The correct wording is:

NICE OXIFM plug-in radio receiver with connector.

OXIFM vs OX2FM

Feature	NICE OXIFM	NICE OX2FM
Frequency	868.46 MHz	868.46 MHz
Radio Coding	O-Code	O-Code
Installation	Plug-In Connector	Pre-Wired External Receiver
Channels	4 / up to 15 via BusT4	2
Output	Via NICE Connector	Relay Output
Power Supply	5 VDC	12–28 VAC/VDC

OXIFM vs OXITFM

The OXIFM is the 868.46 MHz receiver without a built-in transmitter.

The related OXITFM version adds a built-in transmitter for compatible Opera functions.

Do not list OXIFM as transmitting at 868.46 MHz; that specification belongs to OXITFM.

OXIFM vs OXIBD

Feature	NICE OXIFM	NICE OXIBD
Frequency	868.46 MHz	433.92 MHz
Main Coding	O-Code	BD, O-Code, FloR, TTS, Flo, Smilo
Bidirectional Radio	No Built-In Transmitter	Yes with Compatible BD Functions
Standard Channels	4	4
Power	5 VDC	5 VDC

5 VDC Power Supply

The OXIFM receives approximately 5 VDC from the compatible NICE control board through its receiver connector.

Do not connect an external 12V, 24V or 230V supply directly to the module.

30 mA Maximum Current Consumption

The official NICE specification lists a maximum electrical draw of approximately 30 mA.

50 Ohm Input Impedance

The radio input impedance is approximately 50 Ω.

Where an appropriate external antenna is connected, use the antenna arrangement recommended for the receiver and frequency.

Receiver Sensitivity

NICE specifies a sensitivity greater than approximately 0.8 µV for successfully received signals.

Actual usable remote-control range still depends on:

• Transmitter model
• Transmitter battery
• Antenna installation
• Walls and reinforced concrete
• Metal structures
• Electrical and radio interference

No Guaranteed Remote Range

Do not advertise an absolute remote-control distance for OXIFM.

Radio range depends strongly on installation conditions.

IP30 Protection

The official NICE protection rating is IP30.

OXIFM must therefore be installed inside a suitable automation control enclosure or motor housing.

It should not be mounted directly outdoors or described as waterproof.

Operating Temperature

The NICE manual specifies an operating-temperature range of approximately -20°C to +55°C.

For UAE installations, the receiver should remain inside a protected control enclosure within this temperature range.

Compact Dimensions

The OXIFM measures approximately 50 × 19 × 45 mm.

Its compact size allows direct installation inside compatible NICE automation control units.

Approx. 20 g Weight

The official listed weight is approximately 20 grams.

Compatible NICE Automation Systems

The OXIFM can be used with compatible NICE automation control units equipped with the correct plug-in receiver connector and supporting the required Opera / radio functions.

Compatibility should always be based on the control-board model, not simply the gate motor name.

Sliding Gate Applications

The receiver can be used with compatible NICE sliding gate control units where the proper receiver socket is provided.

Typical applications include villa entrances, commercial sliding gates and industrial access systems.

Swing Gate Applications

OXIFM can also be used with compatible swing gate control units equipped with the required receiver connector.

The motor itself does not determine radio receiver compatibility.

Parking Barrier Applications

Compatible NICE road and parking barrier control units can use OXIFM where the correct receiver interface is provided.

Garage Door Applications

The OXIFM may be used with compatible NICE garage-door automation controllers supporting the appropriate receiver module.

Do Not List Every NICE Motor as Compatible

The safest wording is:

Compatible with NICE automation control units equipped with the appropriate plug-in receiver connector and supporting the NICE OXIFM / Opera radio architecture.

Incorrect 433.92 MHz Remote Compatibility

Do not list standard 433.92 MHz NICE transmitters as compatible with OXIFM simply because they work with OXI or OXIBD.

For example, standard 433.92 MHz versions of the following should not automatically be listed as OXIFM-compatible:

• FLO2RE
• FLO4RE
• FLO2R-S
• INTI 433.92 MHz versions
• ON2E 433.92 MHz
• MYGO 433.92 MHz versions

OXIFM requires the correct 868.46 MHz NICE O-Code transmitter.

Compatible 868.46 MHz NICE Transmitters

Use transmitter models specifically produced for NICE 868.46 MHz O-Code.

Examples from NICE radio families may include dedicated FM / 868.46 MHz versions where officially specified.

Always verify the exact suffix and frequency printed on the transmitter before programming.

NICE ONE FM Series

Older NICE ONE transmitters were produced in dedicated 868.46 MHz versions such as ON-series FM models.

These should not be confused with visually similar 433.92 MHz ON transmitters.

Remote Frequency Must Match

A very useful customer check is to inspect the label on the existing remote.

If the remote is marked 433.92 MHz, it should not be assumed compatible with OXIFM.

For OXIFM, look for the correct 868.46 MHz version and compatible coding.

Programming Remote Controls

Compatible transmitters must be memorised into the OXIFM using the official NICE programming procedure.

The exact procedure can depend on receiver configuration and control-unit architecture.

Mode 1 Programming

In supported NICE programming arrangements, Mode 1 assigns transmitter buttons according to the standard receiver command mapping.

Mode 2 Programming

Mode 2 can allow individual transmitter buttons to be associated with specific automation commands where the connected controller supports that function.

Opera / BusT4 Extended Functions

When installed in a compatible NICE Opera system, BusT4 can provide additional command and programming possibilities beyond the receiver's four basic channels.

NICE technical data specifies up to 15 commands on BusT4.

Remote Will Not Program

If a transmitter cannot be memorised, check:

• Exact remote frequency
• 868.46 MHz compatibility
• O-Code protocol
• Receiver memory status
• Programming procedure
• Remote battery
• Control-unit receiver socket

433.92 MHz Remote Does Not Work

If a 433.92 MHz NICE remote does not work with OXIFM, this is normally expected because OXIFM operates at 868.46 MHz.

Use the correct receiver or transmitter frequency rather than repeatedly attempting programming.

Receiver Does Not Power Up

If OXIFM appears inactive, check:

• Correct installation orientation
• Compatible receiver connector
• Control-board power
• Damaged connector pins
• Control-board fault

Poor Radio Range

Reduced range may be caused by:

• Weak remote battery
• Incorrect-frequency antenna
• Metal motor enclosures
• Concrete walls
• Nearby RF interference
• Poor antenna positioning

Installation Procedure

1. Disconnect automation power.
2. Confirm the control board accepts the NICE plug-in receiver.
3. Check that OXIFM 868.46 MHz is the required radio frequency.
4. Insert the receiver in the correct orientation.
5. Restore power.
6. Program compatible 868.46 MHz O-Code transmitters.
7. Test every memorised command.

Do Not Install with Power Applied

Disconnect power before inserting or removing the OXIFM receiver unless the exact control-unit instructions explicitly state otherwise.

UAE Applications

The NICE OXIFM receiver can be used in compatible residential, commercial and industrial automation throughout the UAE, including:

• Villa gates
• Apartment parking entrances
• Commercial gates
• Warehouse entrances
• Garage doors
• Parking barriers

NICE OXIFM Supply & Programming UAE

Supply, receiver replacement, compatible remote programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Why Choose NICE OXIFM?

• Original NICE receiver
• 868.46 MHz radio frequency
• NICE O-Code technology
• 4 standard channels
• Up to 15 BusT4 commands on compatible Opera systems
• Plug-in connector installation
• 5 VDC operation
• Only 30 mA maximum current draw
• IP30 protected installation
• -20°C to +55°C operating range
• Compact 50 × 19 × 45 mm size

Buy NICE OXIFM Receiver UAE

Buy the NICE OXIFM 868.46 MHz gate receiver in UAE for compatible NICE automatic gates, garage doors and parking-barrier automation systems.

Supply, programming, receiver replacement and technical support are available throughout Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE OXIFM?
OXIFM is a 4-channel NICE plug-in radio receiver operating at 868.46 MHz and using O-Code technology.

What frequency does OXIFM use?
868.46 MHz.

Is OXIFM 433.92 MHz?
No. OXIFM is an 868.46 MHz receiver.

Is OXIFM flush mounted?
No. NICE classifies it as a plug-in receiver with connector.

How many channels does it have?
Four standard channels, with up to 15 functions through BusT4 on compatible Opera systems.

What radio coding does it use?
NICE O-Code.

What voltage does OXIFM use?
Approximately 5 VDC supplied by the compatible NICE control unit.

What is its current consumption?
Approximately 30 mA maximum.

What is the operating temperature?
Approximately -20°C to +55°C.

What is the IP rating?
IP30.

Can OXIFM be mounted outdoors?
No. It should be installed inside a suitable automation control enclosure.

What are the dimensions?
Approximately 50 × 19 × 45 mm.

What is the weight?
Approximately 20 g.

Will FLO2RE work with OXIFM?
The standard FLO2RE is a 433.92 MHz transmitter, so it should not be listed as compatible with OXIFM.

Will NICE INTI work with OXIFM?
Only an exact transmitter version using the required 868.46 MHz frequency and compatible coding should be used. Standard 433.92 MHz INTI versions are not suitable.

Will ON2E work with OXIFM?
Standard ON2E is 433.92 MHz and should not be listed as compatible. Use the appropriate 868.46 MHz version where available and officially supported.

Can OXIFM work with any NICE gate motor?
No. Compatibility depends on the control board having the appropriate receiver connector and supporting the required NICE receiver architecture.

Do you provide NICE OXIFM programming in UAE?
Yes. Receiver installation, compatible remote programming and technical support are available for suitable NICE systems throughout the UAE.
