NICE OXIBD Bidirectional 433.92 MHz Gate Receiver UAE

NICE OXIBD Plug-In Radio Receiver for Gate Automation

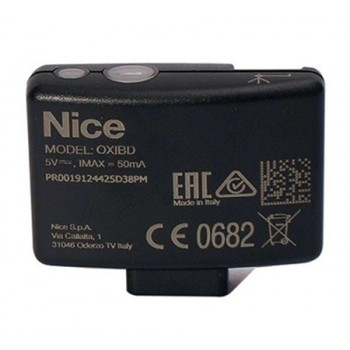

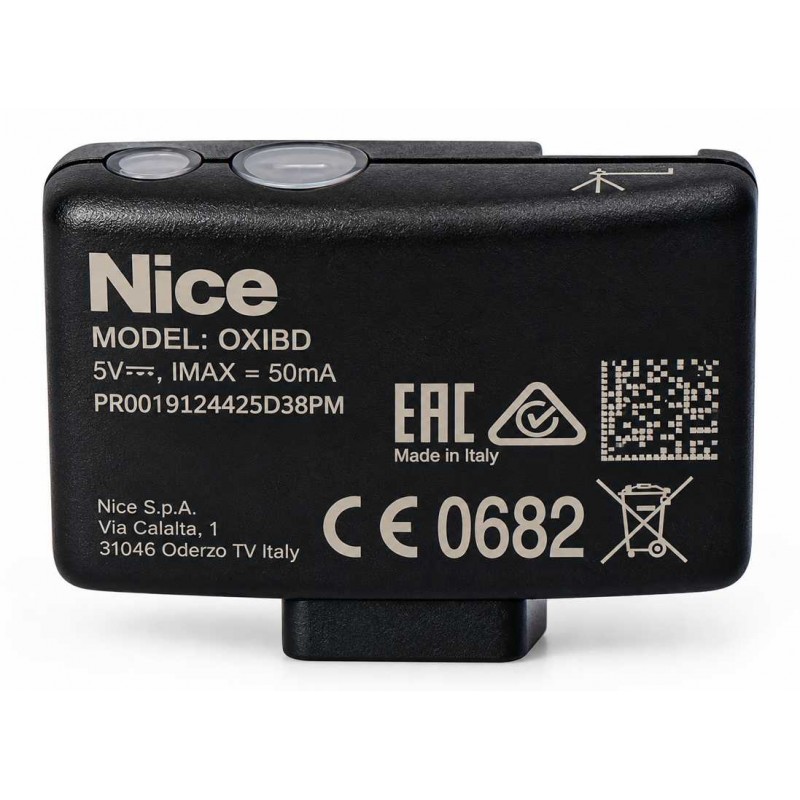

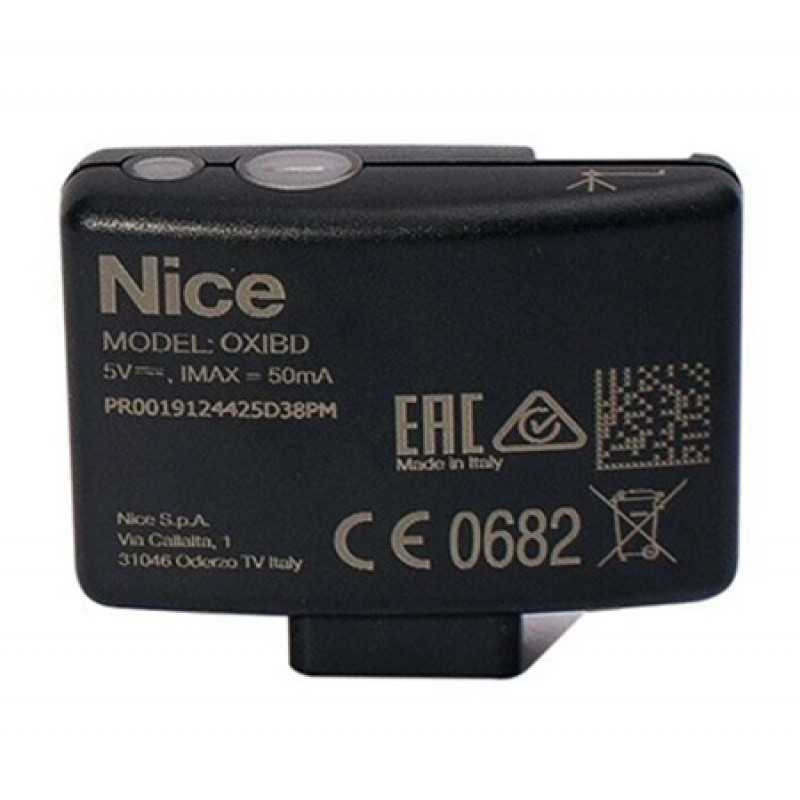

The NICE OXIBD Bidirectional Radio Receiver is a genuine NICE 433.92 MHz plug-in receiver designed for compatible automatic gate, garage-door and parking-barrier control units using the NICE SM receiver connector.

The OXIBD supports several NICE radio coding families, including BD, O-Code, FloR, TTS, Flo and Smilo, making it a versatile replacement or upgrade receiver for many compatible NICE automation systems.

When used with suitable bidirectional NICE transmitters, the OXIBD can also transmit information back to the remote control, enabling confirmation and status functions supported by the exact transmitter and control unit.

NICE OXIBD Key Features

• Original NICE bidirectional radio receiver
• Official model: OXIBD
• 433.92 MHz reception frequency
• 433.92 MHz transmission for bidirectional operation
• Supports BD coding
• Supports O-Code
• Supports FloR
• Supports TTS
• Supports Flo
• Supports Smilo
• 4 channels through NICE SM plug-in connector
• 5 VDC power supply from compatible control board
• Maximum current draw 50 mA
• 50 Ω radio input impedance
• -108 dBm receiver sensitivity
• IP30 protection
• Compact 49.5 × 18 × 41.9 mm design
• Approx. 22 g weight
• Suitable for compatible NICE Gate & Door automation

NICE OXIBD Technical Specifications

Brand	NICE
Model	OXIBD
Product Type	Bidirectional Plug-In Radio Receiver
Reception Frequency	433.92 MHz
Transmission Frequency	433.92 MHz – BD Operation
Input Impedance	50 Ω
Receiver Sensitivity	-108 dBm
Supported Coding	BD, O-Code, FloR, TTS, Flo, Smilo
Channels	4 through NICE SM Plug-In Connector
Relay Contacts	Not Separate – Output via SM Connector
Power Supply	5 VDC from Compatible NICE Control Unit
Maximum Current Draw	50 mA
Protection Rating	IP30
Dimensions	49.5 × 18 × 41.9 mm
Weight	Approx. 22 g

433.92 MHz Radio Receiver

The NICE OXIBD operates at 433.92 MHz for radio reception.

For compatible bidirectional operation, the receiver also transmits at 433.92 MHz.

This allows supported NICE bidirectional transmitters to receive confirmation or automation-status information where the complete system supports that function.

Bidirectional Communication

The OXIBD is designed for NICE bidirectional radio technology.

With compatible bidirectional transmitters, information can travel in both directions:

• Remote control sends a command to the receiver
• Receiver/control system can send compatible confirmation information back to the transmitter

The exact feedback available depends on the remote-control model, receiver programming and automation control unit.

Bidirectional Does Not Apply to Every Remote

Older or one-way NICE transmitters may still be accepted by OXIBD when their coding family is supported, but they do not automatically gain bidirectional feedback.

Bidirectional functions require a compatible BD transmitter.

Supported NICE Radio Coding

The official NICE technical catalogue lists OXIBD compatibility with the following coding families:

• BD
• O-Code
• FloR
• TTS
• Flo
• Smilo

This makes OXIBD more versatile than a receiver limited to only one NICE radio family.

O-Code Compatibility

OXIBD supports NICE O-Code transmitters.

This includes compatible NICE ERA ONE, INTI, MYGO and other transmitters where the exact model uses a supported O-Code or BD protocol.

FloR Compatibility

The receiver also supports NICE FloR coding.

Compatible FloR-series remotes can therefore be used where correctly memorised into the receiver.

Flo Compatibility

Classic NICE Flo coding is also included in the official OXIBD decoding list.

Smilo Compatibility

OXIBD supports NICE Smilo coding as well.

Always verify the exact remote model before promising compatibility because physical appearance and 433.92 MHz frequency alone are not sufficient.

Frequency Alone Does Not Guarantee Compatibility

This is very important for customer support.

A remote operating at 433.92 MHz is not automatically compatible with NICE OXIBD.

The radio coding protocol must also be supported.

Always check:

• Remote model
• Radio frequency
• Coding protocol
• Receiver programming method
• Available receiver memory

4-Channel Receiver

The official NICE catalogue lists OXIBD as a 4-channel receiver through the SM plug-in connector.

The available command functions depend on how the receiver is configured within the automation control unit.

NICE SM Plug-In Connector

The OXIBD is not a conventional external relay receiver with separate power and NO/NC/COM terminals.

It plugs directly into the compatible NICE SM receiver socket on the automation control board.

Power and control communication are provided through this connector.

No Separate Relay Contacts

The official catalogue lists no independent external relay contact for OXIBD.

This means the receiver should not be wired like a universal external two-channel relay receiver.

5 VDC Power Supply

The OXIBD operates from approximately 5 VDC supplied by the compatible NICE control unit through the SM connector.

Do not connect external 12V, 24V or 230V power directly to the OXIBD module.

50 mA Maximum Current Draw

The official NICE technical specification gives a maximum current draw of approximately 50 mA.

-108 dBm Receiver Sensitivity

The OXIBD has a specified receiver sensitivity of approximately -108 dBm.

Actual usable remote range still depends on:

• Remote transmitter power
• Antenna installation
• Walls and buildings
• Metal structures
• Electrical interference
• Remote-control battery condition

50 Ohm Antenna Input

The official specification gives an input impedance of 50 Ω.

Where an external antenna or a compatible NICE flashing-light aerial is used, it should be connected according to the control-board and receiver installation instructions.

External Aerial Applications

OXIBD can be used with suitable antenna arrangements where supported by the NICE control unit.

For example, compatible NICE flashing lights with integrated aerials may provide a more favourable antenna position than leaving the receiver antenna inside a metal enclosure.

No Guaranteed Remote Range

Do not advertise a fixed guaranteed remote-control distance for OXIBD.

Radio range can vary significantly according to site conditions and transmitter model.

IP30 Protection

The OXIBD has an official IP30 protection rating.

This receiver is intended to be installed inside a suitable automation control enclosure or motor housing.

It should not be described as waterproof or mounted directly outdoors.

Compact Plug-In Design

The OXIBD measures approximately 49.5 × 18 × 41.9 mm.

Its compact design allows it to fit directly inside compatible NICE control units.

Approx. 22 g Weight

The official listed weight is approximately 22 grams.

Compatible NICE Sliding Gate Systems

The OXIBD can be used with compatible NICE sliding gate control units providing the correct SM receiver connector.

Common compatible families may include selected NICE ROBUS and RUN control units.

Always check the exact control-board model rather than assuming every motor in the same product family accepts OXIBD.

NICE ROBUS Applications

Many NICE ROBUS control units provide the SM-type receiver connection used by OXIBD.

The exact ROBUS generation and board should still be verified before installation.

NICE RUN Applications

Compatible NICE RUN control boards can also use plug-in receivers where the required receiver socket is present.

NICE Swing Gate Applications

OXIBD can be used with compatible NICE swing gate control units that accept the SM plug-in receiver module.

This may include selected installations using NICE TOONA, WINGO, HYKE, HOPP, M-FAB or L-FAB motors depending on the control unit fitted.

The control board, not simply the motor model, determines receiver compatibility.

Parking Barrier Applications

The OXIBD can also be used in compatible NICE parking-barrier control units equipped with the correct receiver socket.

This may include selected M-BAR and WIDE systems.

Garage Door Applications

Compatible NICE garage-door operators can use OXIBD where their control board accepts the SM plug-in receiver.

Do Not Say Compatible with Every NICE Control Unit

The safest product-page wording is:

Compatible with NICE automation control units equipped with the appropriate SM plug-in radio receiver socket. Check the exact control-board model before purchase.

OXIBD vs OXI

OXIBD is the newer bidirectional receiver family.

Older OXI receivers are associated primarily with earlier unidirectional radio operation, while OXIBD adds support for NICE bidirectional BD transmitters and related feedback functions.

Do not assume the programming procedures are identical across all OXI generations.

OXIBD vs OX2

Feature	NICE OXIBD	NICE OX2
Installation	SM Plug-In Module	External Receiver
Reception Frequency	433.92 MHz	433.92 MHz
Bidirectional Transmission	Yes – BD Compatible	No
Channels	4	2
Output	Via SM Connector	Separate Relay Contacts
Power Supply	5 VDC	12–28 VAC/VDC

OXIBD vs Universal External Receiver

The NICE OXIBD is designed specifically for compatible NICE automation boards.

A universal external receiver normally uses separate power supply and relay contacts and can often be connected to a wider range of third-party controllers.

OXIBD should therefore not be marketed as a universal dry-contact receiver.

Remote Programming

Remote controls must be memorised into OXIBD using the correct NICE programming procedure.

The exact method can depend on the automation control board, receiver mode and transmitter family.

Mode 1 Programming

In supported NICE receiver programming, Mode 1 generally assigns the transmitter buttons according to the receiver's standard command mapping.

The exact mapping should be verified in the current OXIBD and control-unit instructions.

Mode 2 Programming

Mode 2 allows individual transmitter buttons to be associated with specific automation commands where supported.

This can be useful when only one particular command is required from a remote button.

Do Not Copy Programming from Another Receiver

OXIBD should be programmed according to its own official instructions.

Do not assume that programming steps for OXI, OX2, FLOX2R or another NICE receiver are identical.

Remote Will Not Program

If a remote cannot be memorised, check:

• Remote-control model
• 433.92 MHz frequency
• Supported coding family
• Receiver memory
• Receiver programming mode
• Remote battery
• Whether the transmitter has already been stored incorrectly

Remote Programs but Gate Does Not Move

If the receiver accepts a transmitter but the automation does not respond correctly, check:

• Assigned receiver channel
• Control-unit command mapping
• Mode 1 / Mode 2 programming
• Automation safety inputs
• Gate controller status

Bidirectional Feedback Does Not Work

If the remote operates the gate but no confirmation is received, check:

• Whether the transmitter is genuinely bidirectional
• Whether BD coding is enabled and supported
• Receiver programming
• Automation compatibility
• Radio range

One-way remotes cannot provide bidirectional feedback simply because OXIBD is installed.

NICE MYGO Compatibility

Compatible NICE MYGO transmitters can be used with OXIBD when their radio coding matches the receiver's supported protocol.

MYGO4 is a one-way O-Code transmitter, while MYGO4BD is the bidirectional version.

Do not describe standard MYGO4 as bidirectional.

NICE ERA ONE Compatibility

Compatible NICE ERA ONE transmitters using supported O-Code or BD coding can be memorised into OXIBD.

Again, exact model matters: not every ERA ONE transmitter provides bidirectional feedback.

NICE INTI Compatibility

The OXIBD decoding list includes O-Code, allowing compatible NICE INTI transmitters to be used.

Standard INTI transmitters remain one-way transmitters even when stored in OXIBD.

NICE FLO2RE / FLO4RE Compatibility

Compatible FloR-family transmitters such as FLO2RE and FLO4RE can be used because OXIBD officially supports FloR coding.

Security Wording

Instead of claiming that OXIBD provides absolute protection against cloning or unauthorised access, describe it as supporting NICE rolling-code and bidirectional radio protocols.

Security also depends on transmitter management, receiver programming and removal of lost credentials.

Deleting a Lost Remote

If a remote control is lost, remove its stored credential from the receiver where the receiver programming procedure allows individual deletion.

This is preferable to leaving an unknown transmitter permanently authorised.

Replacing OXIBD

When replacing a receiver, check whether existing transmitter credentials need to be re-memorised or transferred using an approved NICE programming procedure.

Do not assume that installing a new OXIBD automatically preserves the memory of the old receiver.

Installation Procedure

1. Disconnect power from the automation control unit.
2. Confirm that the board has the correct NICE SM receiver socket.
3. Insert the OXIBD module in the correct orientation.
4. Reconnect automation power.
5. Follow the official OXIBD learning procedure.
6. Memorise compatible transmitters.
7. Test every programmed command.
8. Test bidirectional feedback where supported.

Do Not Insert or Remove with Power On

For safe installation, isolate the automation before fitting or removing the OXIBD receiver.

Follow the exact control-board installation instructions.

UAE Applications

The NICE OXIBD is suitable for compatible residential, commercial and industrial automation systems throughout the UAE, including:

• Villa gates
• Apartment parking gates
• Commercial entrances
• Parking barriers
• Warehouses
• Industrial gates
• Garage doors

NICE OXIBD Supply & Installation UAE

Supply, replacement, remote programming and technical support are available for compatible NICE automation systems across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Why Choose NICE OXIBD?

• Original NICE plug-in receiver
• 433.92 MHz reception
• 433.92 MHz bidirectional transmission
• Supports BD, O-Code, FloR, TTS, Flo and Smilo
• 4-channel operation through SM connector
• 5 VDC low-power operation
• 50 mA maximum draw
• -108 dBm sensitivity
• Compact 49.5 × 18 × 41.9 mm design
• Suitable for compatible NICE gates, barriers and garage systems

Buy NICE OXIBD Receiver UAE

Buy the NICE OXIBD bidirectional 433.92 MHz gate receiver in UAE for compatible NICE automatic gate, garage-door and parking-barrier control units.

Supply, receiver replacement, remote programming and technical support are available throughout Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE OXIBD?
OXIBD is a 433.92 MHz bidirectional plug-in radio receiver for compatible NICE automation control units.

What frequency does OXIBD use?
433.92 MHz for reception and, in bidirectional operation, 433.92 MHz for transmission.

Which coding systems does OXIBD support?
BD, O-Code, FloR, TTS, Flo and Smilo.

How many channels does OXIBD have?
Four channels through the NICE SM plug-in connector.

What voltage does OXIBD use?
Approximately 5 VDC supplied by the compatible control board.

Can I connect OXIBD directly to 12V or 24V?
No. It is designed to plug into the correct NICE SM receiver socket and receive its supply through that connector.

Does OXIBD have NO / NC / COM relay contacts?
No separate external relay contacts are specified. Its outputs are handled through the SM plug-in connector.

What is the receiver sensitivity?
Approximately -108 dBm.

What is the IP rating?
IP30.

Can OXIBD be installed outdoors?
Not directly. It should be installed inside a suitable compatible automation enclosure.

What are the dimensions?
Approximately 49.5 × 18 × 41.9 mm.

What is the weight?
Approximately 22 g.

Does every 433.92 MHz remote work?
No. The remote's coding protocol must also be supported by OXIBD.

Does standard NICE INTI become bidirectional with OXIBD?
No. Standard INTI remains a one-way transmitter even though it can be compatible through O-Code.

Does standard MYGO4 provide bidirectional feedback?
No. MYGO4 is one-way. Use an appropriate BD model such as MYGO4BD where bidirectional functionality is required.

Can OXIBD work with NICE ROBUS or RUN?
Yes, with compatible control units equipped with the appropriate NICE SM receiver socket.

Can OXIBD work with swing gate motors?
Yes, where the swing gate control unit accepts the OXIBD plug-in receiver.

Do you provide OXIBD programming in UAE?
Yes. Receiver replacement, remote programming and technical support are available for compatible NICE systems throughout the UAE.
