NICE RONDO RN2040 Rolling Shutter Motor in UAE

NICE RONDO RN2040 Rolling Shutter Motor in UAE

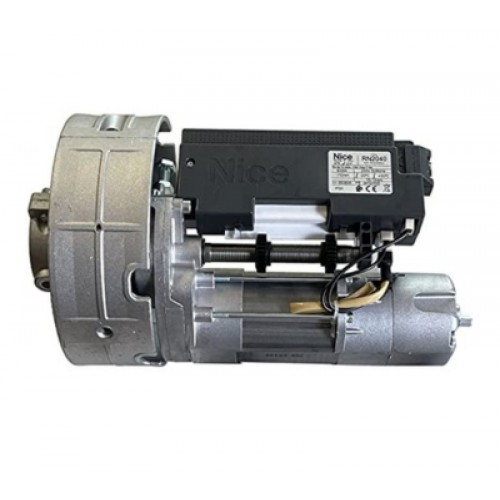

NICE RONDO RN2040 Rolling Shutter Motor:

• Rondo For balanced rolling doors up to 360 kg
• Irreversible electromechanical gearmotor.
• Easy to programme Simple adjustment of the mechanical limit switches
• thanks to the new white tab that allows the wheels used to adjust
• the rolling door opening and closing positions to be disengaged easily.
• Easy to install: A few simple steps are all it takes to
• efficiently install the gearmotor on the spring shaft.
• Thanks to the crown and spring shaft adapters available,
• the product can satisfy a wide range of installation requirements.

NICE RONDO RN2040:

• Code RN2040
• ELECTRICAL DATA
• Power supply (Vac 50 Hz) 230
• Absorption (A) 2,7
• Power (W) 630
• PERFORMANCE DATA
• Speed (rpm) 10
• Torque (Nm) 170
• Continuous operating time (min) 4
• Limit switch (mt) 7
• DIMENSIONAL AND GENERAL DATA
• Shaft diameter (mm) 60
• Shaft adapters 48
• Crown diameter (mm) 200
• Crown adapters 220
• Electro-brake Yes
• Release cable (mt) 5
• Power cable (length in m) 4x0.75 mm2 (4 m)
• Protection level (IP) 20
• Working temp. (°C Min/Max) -20 ÷ +50
• Dimensions (mm) 200x350
• Weight (kg) 8
