NICE TOONA 5 Swing Gate Motor in UAE

NICE TOONA 5 Automatic Swing Gate Motor in UAE

NICE TOONA 5 Swing Gate Motor:

• Made in Italy
• TO5016 For swing gates with leaves up to 5 m
• Ideal for residential and industrial applications.
• Electromechanical gear motor, surface mounted.
• Also available in 24 Vdc version, with magnetic encoder.
• Reliability and durability over time:
• thanks to the housing, made up of two tough aluminium shells with
• polyester paint finish; more resistant to atmospheric agents.
• Internal moving parts completely in steel,
• light alloys and technopolymers.
• Generously sized and practical connection compartment:
• rapid and easy access from above to internal parts
• located in the upper section of the motor.
• Simple installation and maintenance: with built-in capacitor.
• Recommended control units: MC800,
• Moonclever MC824H for TO5024 and TO5024I.
• 24 Vdc version with magnetic encoder.
• Perfect for intensive use,
• compatible with the control unit Moonclever MC824H:
• simple programming, by means of a single key;
• automatic memorization of limit switches on opening
• and closing with self-learning function;
• automatic fault diagnostics;
• programming of pause time;
• pedestrian pass door;
• deceleration on opening and closing;
• obstacle detection with dual technology;
• operation in event of power failure
• by means of optional rechargeable batteries
• provision for connection of latest generation resistive sensitive edges.

NICE TOONA 5:

• Code TO5016

• ELECTRICAL DATA
• Power supply (Vac 50 Hz)* - 230
• Absorption (A) 1,5
• Power (W) 340
• PERFORMANCE DATA
• Speed (m/s) 0,013
• Force (N) 1800
• Work cycle (cycles/hour) 54
• DIMENSIONAL AND GENERAL DATA
• Protection level (IP) 44
• Working temp. (°C Min/Max) -20 ÷ +50
• Dimensions (mm) 965x115x105 h
• Weight (kg) 7

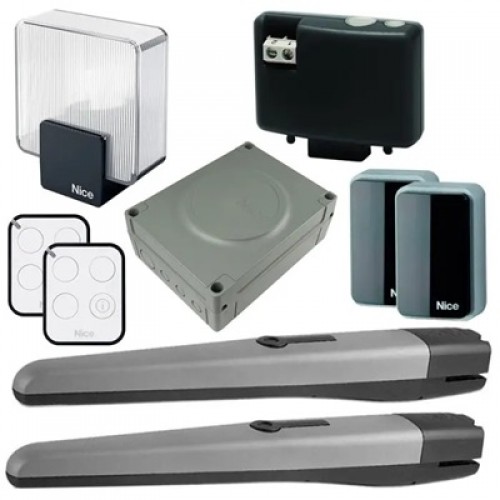

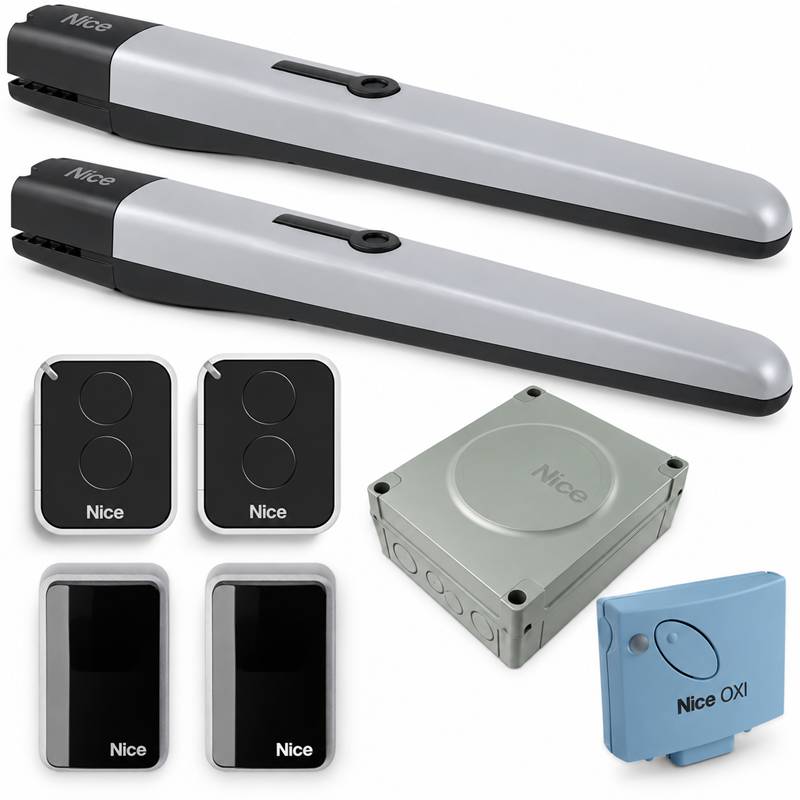

NICE TOONA 5 Kit Includes:

• 2 x Nice Toona TO5016 Swing Gate Motor.
• 1x  Nice MC800 for 2 electric drives 230V.
• 1 x Nice OXI Receiver 433.92 MHz
• 2 x Nice Flo2RE remote control.
• 1 x EPM Pair of Blue bus Photocells.
• 1 x Nice Flashing Light.
• 2 x Fixing Bracket.
• 1 x Push  Button.
