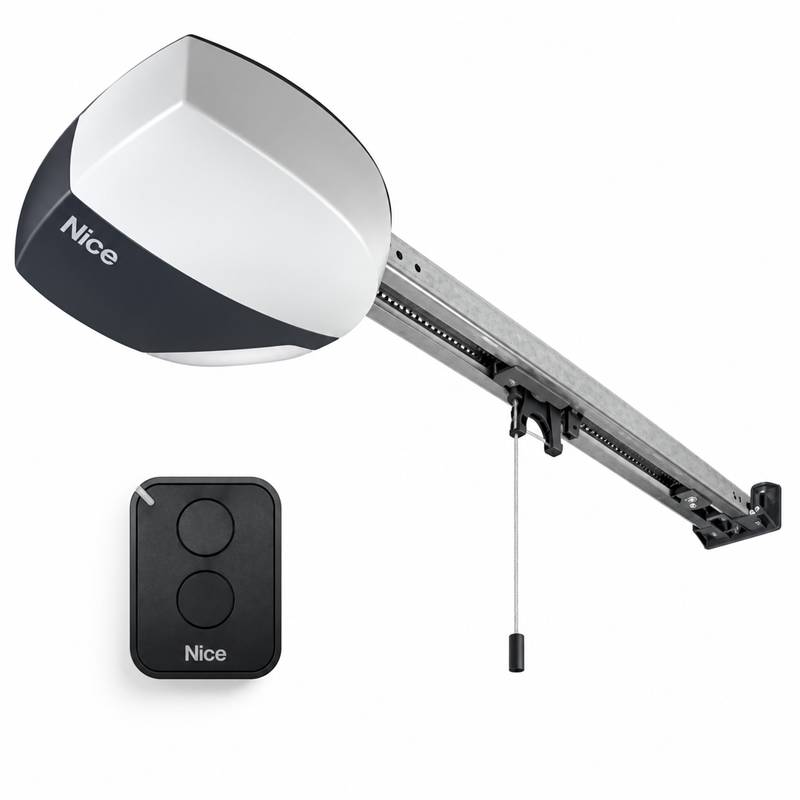

NICE SPINBUSKIT 20 / 22 / 23 BD Garage Door Opener – 650 N

NICE SN6021 24V Belt-Drive Garage Door Motor UAE

The NICE SPINBUSKIT 20 / 22 / 23 BD is a professional 24V automatic garage door opener system designed for residential sectional and compatible up-and-over garage doors. The SPINBUSKIT BD range uses the NICE SN6021 electromechanical gearmotor with integrated control electronics, BlueBUS connectivity and bidirectional radio technology for smooth, quiet and intelligent garage door automation.

NICE rates the SPINBUSKIT range for sectional garage doors up to approximately 10.5 m² and compatible up-and-over garage doors up to approximately 11.8 m². The SN6021 motor provides approximately 650 N maximum force, 270 W maximum power and 0.20 m/s maximum travel speed.

The SPINBUSKIT 20, 22 and 23 BD versions use the same motor platform but differ mainly in the supplied guide-rail configuration. This allows the installer to select the rail arrangement best suited to the garage door height and installation layout.

NICE SPINBUSKIT Key Features

• Original NICE garage door automation system
• Models: SPIN20BDKCE / SPIN22BDKCE / SPIN23BDKCE
• Motor model: SN6021
• Suitable for sectional garage doors up to approximately 10.5 m²
• Suitable for compatible up-and-over doors up to approximately 11.8 m²
• 230V AC mains input
• 24V DC electromechanical motor system
• Maximum force: 650 N
• Maximum absorbed power: 270 W
• Maximum current absorption: 0.8 A
• Maximum travel speed: 0.20 m/s
• BlueBUS technology
• Bidirectional NICE radio technology
• Integrated control unit
• Integrated LED courtesy light
• Obstacle detection through motor current monitoring
• Automatic programming of working times
• Adjustable acceleration and deceleration
• Self-diagnostics
• Compatible with 8.2 kΩ sensitive safety edges
• Manual emergency release
• Optional PS124 backup battery
• Compatible with Nice Opera programming systems
• Suitable for residential garage automation

NICE SPINBUSKIT Technical Specifications

Brand	NICE
Series	SPINBUSKIT BD
Kit Models	SPIN20BDKCE / SPIN22BDKCE / SPIN23BDKCE
Motor Model	SN6021
Product Type	Automatic Garage Door Opener
Door Type	Sectional & Compatible Up-and-Over Garage Doors
Maximum Sectional Door Area	Up to 10.5 m²
Maximum Up-and-Over Door Area	Up to 11.8 m²
Mains Power Supply	230V AC, 50/60 Hz
Motor System	24V DC Electromechanical
Maximum Current Absorption	0.8 A
Maximum Power	270 W
Maximum Force	650 N
Maximum Speed	0.20 m/s
Control Technology	BlueBUS
Radio Technology	NICE Bidirectional 433.92 MHz with Compatible Receiver
Protection Rating	IP40
Operating Temperature	-20°C to +55°C
Motor Head Dimensions	311 × 327 × 105 mm
Motor Weight	Approx. 3.6 KG
Working Duty	Up to 50 Cycles/Day
Courtesy Light	Integrated LED
Backup Battery	Optional NICE PS124

SPIN20BDKCE vs SPIN22BDKCE vs SPIN23BDKCE

Kit	Motor	Guide Rail
SPIN20BDKCE	SN6021	3 × 1 m Rail Sections
SPIN22BDKCE	SN6021	1 × 3 m Rail + 1 × 1 m Rail
SPIN23BDKCE	SN6021	1 × Pre-Assembled 3 m Rail

All three kits use the same core SN6021 650 N motor platform. The main difference is the supplied guide-rail arrangement.

650 N Maximum Pulling Force

The NICE SN6021 provides approximately 650 N maximum force. This makes the SPINBUSKIT suitable for properly balanced residential garage doors within the manufacturer's size and movement limits.

The 650 N figure should not be treated as a direct door-weight rating. A garage door must be correctly balanced by its springs so that the motor moves the door rather than carrying the full physical weight of the door.

Important Garage Door Balance Requirement

Before installing the SPINBUSKIT, the garage door should move smoothly and remain correctly balanced throughout its travel.

Damaged springs, excessive guide friction, bent tracks or a poorly balanced door can substantially increase the force required from the motor and reduce operating reliability.

Sectional Doors Up to 10.5 m²

NICE specifies the SPINBUSKIT 20 / 22 / 23 BD range for sectional garage doors with a surface area up to approximately 10.5 square metres.

This is a better capacity specification to use on your product page than an unsupported fixed KG rating.

Up-and-Over Doors Up to 11.8 m²

The SPINBUSKIT can also automate compatible up-and-over garage doors with a surface area up to approximately 11.8 m², subject to correct installation accessories, door balancing and geometry.

24V DC Garage Door Motor

The SN6021 uses a 24V DC motor architecture powered through its integrated control system from a 230V AC mains supply.

This 24V platform allows precise electronic control of acceleration, slowdown, obstacle detection and optional battery-backup operation.

0.20 m/s Maximum Speed

NICE specifies maximum travel speed of approximately 0.20 metres per second.

The actual garage-door opening time depends on door height, rail configuration, programmed speed, acceleration, slowdown and mechanical resistance.

270 W Maximum Power

The SPINBUSKIT motor system has approximately 270 W maximum absorbed power and approximately 0.8 A maximum current absorption.

NICE BlueBUS Technology

The integrated control unit supports NICE BlueBUS, allowing compatible devices such as BlueBUS photocells to communicate and receive power through a simplified two-wire connection.

This reduces wiring complexity while allowing the control unit to recognize compatible safety devices.

Bidirectional NICE Radio Technology

The BD versions are designed for NICE bidirectional radio technology using a compatible OXIBD receiver and compatible NICE transmitters.

Bidirectional operation can provide feedback between compatible transmitter and receiver devices rather than only sending a one-way radio command.

Important: Remote Model Depends on Kit Revision

Older SPINBUSKIT packages may include transmitters such as FLO2RE, while newer bidirectional kits may include ON3EBD or MYGO-series transmitters depending on market and production revision.

For this reason, your UAE product page should list the exact remote model physically supplied with your current stock rather than saying every SPINBUSKIT always includes two identical remotes.

Obstacle Detection

The control system monitors motor absorption during movement to detect abnormal resistance.

When correctly configured, this supports obstacle detection and allows the system to react according to its programmed safety logic.

Obstacle detection does not eliminate the need for correctly installed photocells and other required safety devices.

Automatic Working-Time Programming

The SPINBUS control unit can automatically learn the garage door working times during commissioning.

This simplifies setup and allows the electronics to manage door travel according to the actual installation.

Adjustable Acceleration & Deceleration

The system provides controlled acceleration at the beginning of movement and deceleration before the end of travel.

This improves smoothness and reduces mechanical shock to the door, rail, trolley and motor assembly.

Integrated LED Courtesy Light

The motor head includes an integrated LED courtesy light that illuminates automatically during garage-door operation.

This is useful for residential garages and eliminates the need to depend entirely on separate garage lighting during entry or exit.

Self-Diagnostics

The SPINBUS system includes diagnostic functions that can communicate operating conditions through the built-in electronics and compatible warning devices.

This assists technicians when commissioning or troubleshooting the garage-door automation.

8.2 kΩ Safety Edge Compatibility

The control system can be connected to compatible 8.2 kΩ resistive safety edges.

This can provide additional protection on the lower edge of the garage door where required by the installation.

Optional NICE PS124 Battery Backup

The SPINBUS platform supports the optional NICE PS124 backup battery.

This allows limited garage-door operation during a mains power failure, depending on battery condition, door resistance and system configuration.

Manual Emergency Release

A manual release allows the garage door to be disconnected from the motor trolley during a power failure or maintenance situation.

The garage door should only be moved manually when its springs and balancing system are in safe operating condition.

Low Standby Consumption

NICE documentation for the SPINBUS family has specified approximately 5.2 W standby consumption with radio connected to mains power, with substantially lower standby demand in compatible battery or Solemyo configurations.

NICE Opera Compatibility

SPINBUS systems support NICE Opera programming and management through compatible interfaces.

Depending on the controller generation, installers can use compatible Nice programming tools for diagnostics, configuration and advanced setup.

Smart Home Integration

Compatible SPINBUS BD systems can be integrated with supported NICE smart-home interfaces such as IT4WIFI or the Yubii ecosystem where the specific controller, receiver and interface combination supports it.

Smart-home compatibility should always be confirmed against the actual control-board revision installed.

SPIN20BDKCE Rail Configuration

The SPIN20BDKCE kit uses a guide rail supplied as three separate 1 metre sections.

This configuration can be practical where transporting or handling one long rail is difficult.

SPIN22BDKCE Rail Configuration

The SPIN22BDKCE version uses a 3 metre guide plus an additional 1 metre section.

This version provides additional rail length for installations requiring a longer guide system.

SPIN23BDKCE Rail Configuration

The SPIN23BDKCE version includes a pre-assembled 3 metre guide rail, simplifying installation where a standard 3 metre rail is suitable.

Recommended SPINBUSKIT Package

• 1 × NICE SN6021 Garage Door Motor
• 1 × Integrated NICE Control Unit
• 1 × Compatible OXIBD Bidirectional Receiver
• 1 × Compatible NICE Remote Control according to kit revision
• 1 × Rail System according to SPIN20 / 22 / 23 version
• Installation Accessories
• Installation Manual

Important: NICE factory kit contents can vary by market and production revision. Seller-added accessories such as a second remote, push button or photocells should be clearly identified as part of the UAE seller package rather than described as factory-included unless verified.

About Your Current UAE Kit

If your physical UAE package includes:

• 2 remote controls
• 1 push button
• 1 pair of photocells

you can keep these items in the description, but write them under a separate heading such as “Our UAE Package Includes”.

NICE SPINBUSKIT Applications

• Residential sectional garage doors
• Villa garage doors
• Private home garages
• Single-car garages
• Double-width compatible garage doors within size limits
• Compatible up-and-over garage doors
• Quiet garage automation installations

Ideal for UAE Villas

The NICE SPINBUSKIT is particularly suitable for residential villas in the UAE where quiet and smooth garage-door operation is important.

The integrated LED light, remote-control operation, BlueBUS safety support and optional backup battery provide a practical residential automation system.

Professional Installation UAE

Professional installation of the NICE SPINBUSKIT garage door opener is available throughout the UAE.

Installation can include motor-head mounting, rail installation, trolley connection, door balancing inspection, control-board programming, limit learning, remote programming, photocell installation, push-button connection and complete safety testing.

Installation Checks Before Fitting SPINBUSKIT

• Measure garage door width and height
• Calculate total door area
• Check the door against the 10.5 m² sectional limit
• Inspect garage-door springs
• Verify correct door balancing
• Check tracks and rollers
• Ensure the door moves freely by hand
• Select the correct rail version
• Confirm ceiling mounting space
• Check 230V power supply
• Program force and obstacle detection correctly
• Install and test safety photocells where required
• Test manual emergency release

NICE SPINBUSKIT Repair & Spare Parts UAE

Technical support is available for NICE SPINBUSKIT repair, maintenance, programming and spare parts throughout the UAE.

Service parts can include SN6021 motor components, control units, rail and belt components, trolleys, OXIBD receivers, remote controls, photocells, manual-release parts, LED components and backup batteries.

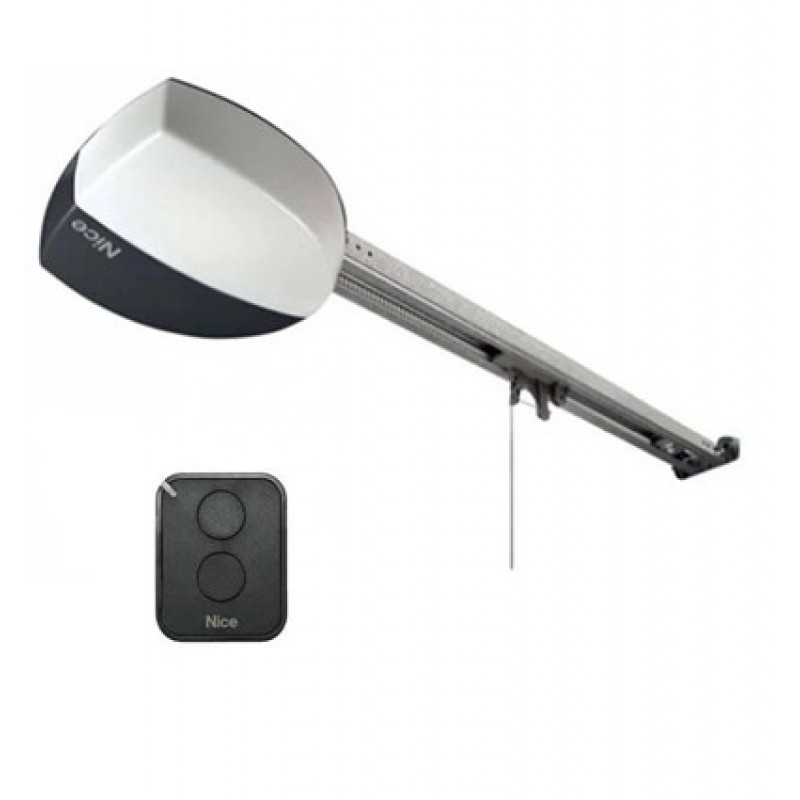

NICE SPINBUSKIT vs SPIN30

Feature	SPINBUSKIT 20/22/23 BD	SPIN30
Motor Platform	SN6021	SN6031 Platform
Maximum Force	650 N	Model-Specific Higher-Capacity Platform
Sectional Door Area	Up to 10.5 m²	Up to Approx. 12 m²
Primary Application	Residential Garage Doors	Larger Residential Garage Doors

Why Choose NICE SPINBUSKIT?

• Genuine NICE garage-door automation
• 650 N maximum force
• 24V DC motor system
• Sectional doors up to 10.5 m²
• Up-and-over doors up to 11.8 m²
• 0.20 m/s maximum speed
• BlueBUS technology
• Bidirectional radio compatibility
• Obstacle detection
• Automatic travel programming
• Soft acceleration and deceleration
• Integrated LED courtesy light
• Optional PS124 battery backup
• Three rail configurations
• Professional UAE installation available

Buy NICE SPINBUSKIT Garage Door Opener UAE

Buy the NICE SPINBUSKIT 20 / 22 / 23 BD garage door opener in UAE for smooth and reliable automation of residential sectional and compatible up-and-over garage doors.

Supply, professional installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What motor is used in NICE SPINBUSKIT?
The SPINBUSKIT 20 / 22 / 23 BD range uses the NICE SN6021 motor platform.

What is the maximum force?
The motor provides approximately 650 N maximum force.

What size sectional garage door can it automate?
NICE specifies sectional garage doors up to approximately 10.5 m².

Can it automate an up-and-over door?
Yes, compatible up-and-over doors up to approximately 11.8 m² can be automated subject to correct accessories and balancing.

What is the difference between SPIN20BDKCE, SPIN22BDKCE and SPIN23BDKCE?
The motor is essentially the same SN6021 platform. The main difference is the guide-rail configuration supplied with each kit.

What rail comes with SPIN20BDKCE?
Three 1 metre rail sections.

What rail comes with SPIN22BDKCE?
One 3 metre rail plus one 1 metre extension.

What rail comes with SPIN23BDKCE?
One pre-assembled 3 metre guide rail.

What voltage is the motor?
The system uses a 24V DC motor with a 230V AC mains input.

What is the maximum power?
Approximately 270 W.

How fast is the motor?
Maximum travel speed is approximately 0.20 m/s.

Does SPINBUSKIT support BlueBUS?
Yes. The integrated controller supports NICE BlueBUS compatible devices.

Does it have obstacle detection?
Yes, through motor-current monitoring when correctly configured.

Does it have a courtesy light?
Yes. An integrated LED courtesy light is built into the motor head.

Does it support battery backup?
Yes. NICE documentation lists the optional PS124 backup battery for the SPINBUS platform.

Is it suitable for residential villas?
Yes. NICE positions the SPINBUSKIT as a residential garage-door automation solution.

Do you provide installation in UAE?
Yes. Professional installation, programming, maintenance and repair support is available throughout the UAE.
