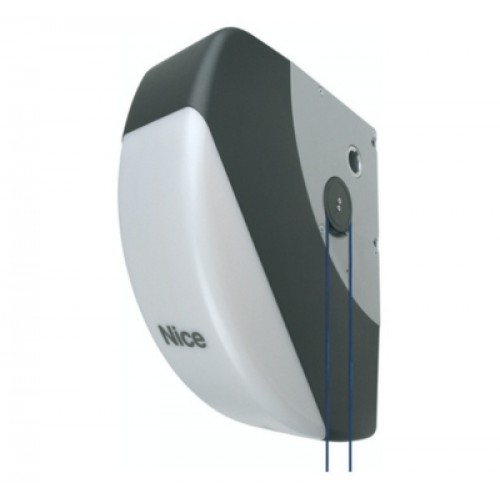

NICE SOON SO2000 Sectional Garage Door Motor – Up to 20 m²

NICE SO2000 Shaft-Mounted Garage Door Opener UAE

The NICE SOON SO2000 is a professional shaft-mounted electromechanical garage door motor designed specifically for large sectional doors with a surface area up to approximately 20 m². The compact operator mounts directly onto the sectional door drive shaft, eliminating the need for a conventional ceiling-mounted motor rail, belt or chain system.

The SO2000 combines a robust electromechanical gearbox with an integrated control unit, absolute encoder, BlueBUS technology, programmable acceleration and slowdown, obstacle detection, self-learning functions and optional PS124 backup battery. It is suitable for large residential garages, multi-user parking facilities, commercial premises and compatible small industrial sectional doors.

NICE specifies a maximum door height of approximately 5 metres and maximum door area of 20 m². Actual suitability also depends on door balancing, guide friction, shaft compatibility, required moving force and installation conditions.

NICE SOON SO2000 Key Features

• Professional sectional garage door operator
• Official NICE model: SO2000
• Suitable for sectional doors up to approximately 20 m²
• Maximum recommended door height: approximately 5 metres
• Direct shaft-mounted installation
• No conventional ceiling motor rail required
• 230V AC mains power supply
• Integrated electromechanical gearmotor
• Maximum current draw: 1.5 A
• Nominal current draw: 1 A
• Maximum power consumption: 350 W
• Nominal power consumption: 220 W
• Maximum torque: 50 Nm
• Rated torque: 30 Nm
• Static holding torque: 130 Nm
• Maximum speed: 30 rpm
• Nominal speed: 18 rpm
• Absolute encoder
• Integrated control unit
• NICE BlueBUS accessory system
• Automatic learning of connected BlueBUS devices
• Automatic learning of door travel
• Programmable acceleration and deceleration
• Obstacle detection when correctly configured
• STOP, Step-by-Step, OPEN and CLOSE command inputs
• Integrated LED courtesy light
• Optional NICE PS124 emergency battery
• SM connector for compatible NICE radio receiver
• Compatible with Oview programming system
• Compatible with Solemyo solar system
• IP40 protection
• Operating temperature from -20°C to +50°C

NICE SO2000 Technical Specifications

Brand	NICE
Series	SOON
Model	SO2000
Product Type	Electromechanical Gearmotor for Sectional Doors
Maximum Door Surface Area	Up to 20 m²
Maximum Door Height	Up to 5 m
Maximum Indicative Door Width	Up to 4 m
Power Supply	230V AC, 50/60 Hz
Maximum Current Draw	1.5 A
Nominal Current Draw	1 A
Maximum Power Consumption	350 W
Nominal Power Consumption	220 W
Maximum Torque	50 Nm
Rated Torque	30 Nm
Static Holding Torque	130 Nm
Maximum Speed	30 rpm
Nominal Speed	18 rpm
Cycles / Hour	15 at Rated Torque for 3 m Door Height
Encoder	Absolute Encoder
Control Unit	Integrated
Control Technology	BlueBUS
Protection Rating	IP40
Operating Temperature	-20°C to +50°C
Dimensions	115 × 375 × 300 mm
Weight	10.5 KG
Output Shaft Hole	25.5 mm
Backup Battery	NICE PS124 Optional
Courtesy Light	Integrated LED

Sectional Doors Up to 20 m²

The NICE SO2000 is designed for sectional garage doors with a surface area below approximately 20 square metres.

NICE also provides indicative dimensions of up to approximately 5 m height and 4 m width. These dimensions are guidance only and do not automatically guarantee motor suitability.

Actual suitability depends on the force needed to move the door, correct balancing, guide friction and compatibility between the sectional door shaft and the SO2000 output connection.

Important Door Balance Requirement

A sectional garage door should be properly balanced before installing the SO2000.

The motor should not be expected to lift the uncontrolled full dead weight of a poorly balanced door. Damaged springs, worn rollers, bent tracks or excessive friction can significantly increase the force required from the operator.

Direct Shaft-Mounted Installation

One of the main advantages of the NICE SOON SO2000 is its direct shaft-mounted design.

The operator mounts onto the sectional door drive shaft rather than using the long ceiling rail normally found on residential garage door openers.

This makes the SO2000 especially useful where ceiling space is limited or where a clean commercial-style sectional door installation is preferred.

No Conventional Ceiling Rail Required

The SO2000 does not require the long motor guide rail, belt or chain arrangement used by traditional trolley-style garage door openers.

This can simplify installation on compatible sectional doors and reduce the amount of automation equipment visible across the garage ceiling.

50 Nm Maximum Torque

NICE specifies approximately 50 Nm maximum torque for the SO2000, with approximately 30 Nm rated torque.

These two figures should not be confused. The 50 Nm value represents the maximum output, while 30 Nm is the rated operating torque used for duty calculations.

130 Nm Static Holding Torque

The SO2000 provides approximately 130 Nm static holding torque.

This specification relates to the gearbox's static holding capability and should not be presented as the normal driving torque of the motor.

30 rpm Maximum Speed

The SO2000 gearbox reaches approximately 30 rpm maximum speed and approximately 18 rpm nominal speed.

Actual sectional door travel speed depends on drum diameter, shaft arrangement, programmed speed and door mechanics.

350 W Maximum Power

NICE specifies approximately 350 W maximum power consumption and approximately 220 W nominal consumption.

The current official manual lists maximum current draw of approximately 1.5 A and nominal current draw of approximately 1 A.

230V AC Mains Supply

The SO2000 is supplied from 230V AC, 50/60 Hz mains power.

Do not describe the complete operator simply as a “24V supply motor.” NICE documentation historically describes the internal motor architecture as 24V DC, but the installed SO2000 operator receives 230V AC mains power through its integrated electronics.

Absolute Encoder Technology

The NICE SOON uses an absolute encoder to provide precise information about the sectional door position.

This allows the controller to manage door travel accurately and eliminates the need for traditional mechanical limit-switch adjustment.

Integrated Control Unit

The control electronics are integrated directly into the SO2000 operator.

This all-in-one construction reduces the need for a separate external control cabinet in normal installations and helps simplify wiring and commissioning.

NICE BlueBUS Technology

The integrated controller includes a BlueBUS output supporting up to 12 BlueBUS units.

Compatible photocells and other devices can use a simplified two-wire connection for communication and power.

Automatic BlueBUS Device Learning

During programming, the controller can automatically learn compatible devices connected to its BlueBUS connection.

This makes system commissioning easier and helps the controller identify the safety accessories installed on the automation.

Automatic Door Travel Learning

The SO2000 control unit automatically learns the door travel and calculates appropriate deceleration and partial-opening positions.

This learning process should be carried out only after the sectional door is mechanically complete, balanced and correctly connected to the operator.

Obstacle Detection

Through the motor and encoder control system, the SO2000 can react to abnormal resistance during movement when correctly programmed.

Obstacle detection must not be used as a replacement for correctly installed safety devices such as photocells and safety edges.

Programmable Slowdown

The integrated electronics can calculate and manage deceleration points during door travel.

Smoother slowdown reduces mechanical shock as the sectional door approaches the fully open or fully closed position.

15 Cycles per Hour at Rated Torque

NICE specifies approximately 15 cycles/hour at rated torque for a 3 metre-high door.

This is a more accurate way to describe SO2000 duty than simply saying “intensive use” without qualification.

The maximum possible duty depends on the actual force required to move the door.

Duty According to Required Door Force

Force Required to Move Door	Maximum Cycles / Hour	Maximum Consecutive Cycles
Up to 120 N	20	35
120–180 N	18	33
180–220 N	15	30

The operator includes a manoeuvre-limiting function that helps prevent overheating when motor load and operating duration become excessive.

Product Durability

NICE estimates SO2000 durability at approximately 40,000 to 120,000 manoeuvre cycles, depending on the severity of the installation and maintenance conditions.

Door weight, required operating force, high or low temperatures, humidity, dust, sand and frequent interruption of cycles can all influence the estimated product life.

Important for UAE Conditions

NICE specifically includes ambient temperatures above 40°C and the presence of dust, sand or salinity among the factors that increase the product's severity index.

This makes correct installation, ventilation, door balancing and periodic maintenance particularly important for UAE garage and commercial sectional-door applications.

Integrated LED Courtesy Light

The SO2000 includes an integrated LED courtesy light.

This provides illumination around the operator during garage-door operation and is built directly into the motor assembly.

Optional PS124 Battery Backup

The current NICE SO2000 manual confirms compatibility with the optional PS124 backup battery.

This can provide temporary operation during mains power failure, depending on battery condition, system configuration and door load.

OPEN, CLOSE & Step-by-Step Inputs

The integrated control board provides separate command inputs including:

• OPEN
• CLOSE
• Step-by-Step
• STOP

This allows the SO2000 to be integrated with push buttons, access-control systems and other compatible dry-contact command devices.

STOP Input & Safety Edge Support

The STOP input can work with normally open contacts, normally closed contacts or compatible 8.2 kΩ resistive devices.

The controller automatically learns the configured STOP-device type during programming.

NICE Radio Receiver Compatibility

The SO2000 provides an SM-type radio connector for compatible NICE receivers such as OXI-family receivers.

The exact remote-control model should therefore match the receiver physically installed in the operator.

Important Remote Control Note

Your UAE package may include NICE FLO2RE remote controls, and you can list them if they are physically supplied with your stock.

However, they are seller-package accessories rather than components permanently built into the SO2000 motor itself.

Oview Programming Compatibility

The integrated control system supports connection of a compatible NICE Oview programmer.

This allows qualified installers to access advanced parameters, diagnostics and compatible radio-receiver settings.

Solemyo Solar Compatibility

NICE documentation also provides a connection option for the Solemyo solar energy system.

Where a Solemyo system is used, the operator must not be powered by the standard electricity grid at the same time.

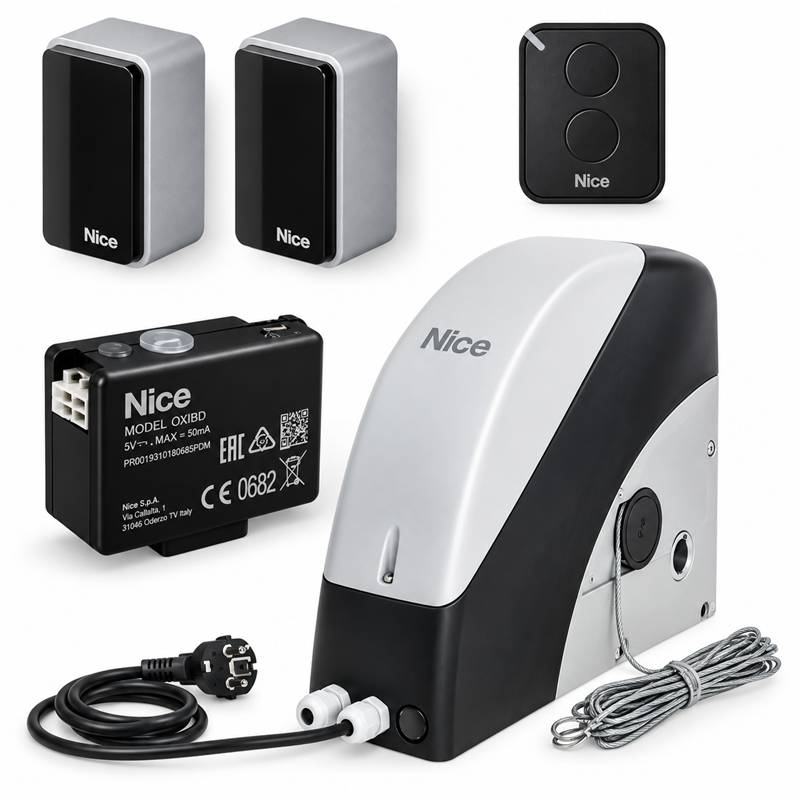

Recommended SO2000 UAE Package

• 1 × NICE SOON SO2000 Sectional Door Motor
• 1 × Integrated SO2000 Control Unit
• 1 × Compatible NICE Radio Receiver
• 2 × NICE Remote Controls if included by seller
• 1 Pair × Compatible Safety Photocells if included by seller
• 1 × Push Button if included by seller
• 1 × Shaft Mounting Bracket
• Installation Accessories
• User & Installation Manual

Important: Remote controls, photocells and push buttons should only be described as included when they are physically part of your UAE seller package. The current official motor package itself includes the gearmotor, release mechanism, mounting hardware, bracket, manual and keys.

What Comes in the Official Motor Package?

The current NICE SO2000 installation manual identifies the main motor-package components as:

• SO2000 gearmotor
• Manual release mechanism
• Mounting bracket
• Mounting screw, washer and locknut
• Fixing screws
• User manual
• 2 manual release keys

NICE SO2000 Applications

• Large residential sectional garage doors
• Villa garage doors
• Apartment building parking garages
• Multi-user residential garages
• Commercial sectional doors
• Small industrial sectional doors
• Loading-area sectional doors within operating limits
• Garages with limited ceiling space
• Shaft-driven sectional doors
• Sectional doors up to approximately 20 m²

Residential Garage Applications

The NICE SO2000 is suitable for large residential garages where a conventional ceiling rail is inconvenient or where the sectional door is larger than typical domestic garage-door applications.

Multi-User Parking Garages

The SO2000 can also be suitable for shared residential parking entrances, provided the actual duty cycle and force required to move the door stay within NICE specifications.

Commercial & Small Industrial Sectional Doors

NICE positions SOON for residential environments with large garage doors, multi-user environments and small industrial sectional doors.

For heavier industrial applications with larger door areas or significantly higher operating frequency, a dedicated industrial operator such as a suitable NICE SUMO model may be more appropriate.

SO2000 vs Conventional Ceiling Garage Motor

Feature	NICE SO2000	Conventional Rail Motor
Installation	Directly on Door Shaft	Ceiling-Mounted Rail
Long Ceiling Rail	Not Required	Required
Door Capacity	Up to 20 m²	Model Dependent
Output	Rotary Torque	Linear Trolley Pull
Typical Application	Large Sectional Doors	Residential Garage Doors

NICE SOON SO2000 vs NICE SUMO

The NICE SOON and SUMO ranges are both shaft-driven sectional-door automation systems, but they target different operating requirements.

The SO2000 is designed for sectional doors up to approximately 20 m² and includes its control unit inside the operator.

NICE SUMO models are intended for larger commercial and industrial sectional-door applications and use their own model-specific control architecture.

Professional NICE SO2000 Installation UAE

Professional installation of the NICE SOON SO2000 sectional garage door motor is available throughout the UAE.

Installation can include sectional-door inspection, shaft compatibility check, motor mounting, bracket fixing, mains wiring, BlueBUS photocells, radio receiver, remote programming, door-travel learning, force adjustment, slowdown setup, safety testing and manual release setup.

Installation Checks Before Fitting SO2000

• Measure door height and width
• Confirm total door area is below 20 m²
• Inspect springs and counterbalance system
• Check door rollers and tracks
• Confirm smooth manual operation
• Measure force required to move the door
• Confirm sectional-door shaft compatibility
• Check motor mounting space
• Ensure wall bracket is sufficiently strong
• Install appropriate safety devices
• Perform BlueBUS device learning
• Program door travel
• Set movement force correctly
• Test STOP and obstacle functions
• Test manual release

Maintenance Requirements

NICE recommends periodic maintenance to maintain safety and long-term operating reliability.

The current manual specifies maintenance at intervals of no more than approximately 6 months or 4,000 manoeuvres from the previous maintenance operation.

Maintenance should include inspection of structural components, moving parts, sectional door balance, tracks, rollers, springs and safety devices.

NICE SO2000 Repair & Spare Parts UAE

Technical support is available for NICE SO2000 repair, programming, maintenance and spare parts throughout the UAE.

Service items can include SO2000 control components, encoder components, manual release parts, mounting hardware, NICE radio receivers, remote controls, BlueBUS photocells, safety edges, warning lights and PS124 backup batteries.

Why Choose NICE SOON SO2000?

• Designed specifically for sectional doors
• Door surface area up to approximately 20 m²
• Maximum indicative height up to 5 m
• Direct shaft-mounted installation
• No conventional ceiling rail required
• 50 Nm maximum torque
• 30 Nm rated torque
• 130 Nm static holding torque
• 30 rpm maximum speed
• Integrated control unit
• Absolute encoder
• BlueBUS technology
• Automatic door-travel learning
• Programmable slowdown
• Optional PS124 battery backup
• Integrated LED courtesy light
• Professional UAE installation available

Buy NICE SOON SO2000 Garage Door Motor UAE

Buy the NICE SOON SO2000 sectional garage door opener in UAE for professional shaft-mounted automation of large residential, multi-user, commercial and suitable small industrial sectional doors up to approximately 20 m².

Supply, professional installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE SO2000?
SO2000 is a shaft-mounted electromechanical sectional garage door operator from the NICE SOON range with an integrated control unit and absolute encoder.

What size door can SO2000 automate?
NICE specifies sectional doors below approximately 20 m².

What is the maximum door height?
The current NICE manual gives an indicative maximum height of approximately 5 metres.

Can it operate a 4 m wide door?
NICE gives approximately 4 m as an indicative maximum width, but the final suitability depends on door balance, required operating force and mechanical conditions.

Does NICE SO2000 require a ceiling rail?
No. It mounts directly to a compatible sectional-door shaft.

What is the maximum torque?
Approximately 50 Nm maximum, with approximately 30 Nm rated torque.

What is the motor speed?
Approximately 30 rpm maximum and 18 rpm nominal.

What is the maximum motor power?
Approximately 350 W maximum and 220 W nominal.

What is the power supply?
The complete operator is supplied from 230V AC, 50/60 Hz.

Does SO2000 have an encoder?
Yes. It uses an absolute encoder for position and movement control.

Does it have a built-in control board?
Yes. The control unit is integrated into the motor.

Does SO2000 support BlueBUS?
Yes. The integrated controller has a BlueBUS output for compatible NICE devices.

How many cycles per hour can SO2000 perform?
NICE specifies approximately 15 cycles/hour at rated torque for a 3 m-high door. Depending on the required moving force, the manual lists up to approximately 20 cycles/hour in lighter conditions.

Does SO2000 support battery backup?
Yes. The current NICE manual confirms compatibility with the optional PS124 battery.

Does it support separate OPEN and CLOSE push buttons?
Yes. The integrated controller includes OPEN, CLOSE, Step-by-Step and STOP command inputs.

Is SO2000 suitable for industrial use?
It can be suitable for small industrial sectional doors within the official 20 m², force and duty limits. Larger or more intensive industrial applications may require a different NICE industrial operator.

Do you provide NICE SO2000 installation in UAE?
Yes. Professional installation, programming, maintenance and repair support is available throughout the UAE.
