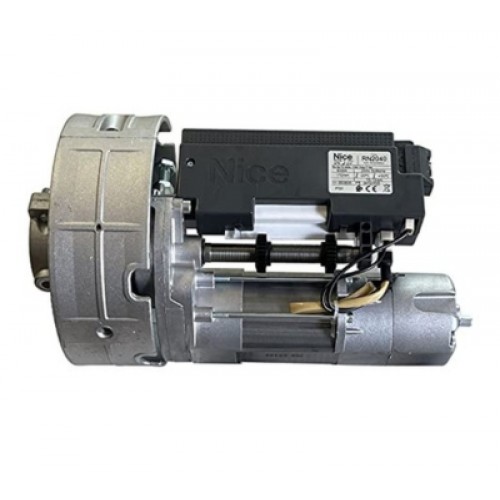

NICE RONDO RN2040 Rolling Shutter Motor – 170 KG

NICE RN2040 230V Rolling Shutter Motor UAE

The NICE RONDO RN2040 is a professional 230V AC electromechanical rolling shutter motor designed specifically for spring-balanced rolling shutters weighing up to approximately 170 KG. The motor installs directly onto the rolling shutter spring-support shaft, providing a compact and reliable automation solution for shops, commercial entrances, workshops, warehouses and compatible rolling doors throughout the UAE.

NICE specifies the RN2040 with approximately 170 Nm maximum torque, 630 W maximum absorbed power, 2.7 A current absorption and 10 rpm maximum speed. It features adjustable mechanical opening and closing limit switches and is designed for balanced rolling shutters with a maximum height of approximately 7 metres.

The RN2040 must not be confused with the larger RN2080 and RN2480 models. RN2040 is rated for approximately 170 KG, RN2080 for approximately 280 KG, and RN2480 for approximately 360 KG.

NICE RONDO RN2040 Key Features

• Original NICE RONDO rolling shutter motor
• Official model: RN2040
• Designed for spring-balanced rolling shutters
• Maximum lifting capacity: approximately 170 KG
• Maximum shutter height: approximately 7 metres
• 230V AC, 50 Hz power supply
• Maximum current absorption: 2.7 A
• Maximum power consumption: 630 W
• Maximum torque: 170 Nm
• Maximum speed: 10 rpm
• Mechanical opening and closing limit switches
• Micrometric limit-switch adjustment system
• Mechanical position memory
• Direct installation on spring-support shaft
• Compatible with multiple shaft diameters using adapters
• Recommended NICE MC200 control unit
• Optional radio remote-control operation through MC200
• Compatible with photocells and safety devices through suitable controller
• Manual release on versions equipped with electric brake
• Aluminium motor housing
• Suitable for commercial rolling shutters
• Suitable for shops, workshops and warehouse entrances

NICE RN2040 Technical Specifications

Brand	NICE
Series	RONDO
Model	RN2040
Product Type	Electromechanical Motor for Spring-Balanced Rolling Shutters
Maximum Lifting Capacity	170 KG
Maximum Shutter Height	Up to 7 Metres
Power Supply	230V AC, 50 Hz
Maximum Current Draw	2.7 A
Maximum Power Consumption	630 W
Maximum Torque	170 Nm
Maximum Speed	10 rpm
Cycles per Hour	Approx. 1 Cycle/Hour at Rated Torque for 3 m Shutter
Continuous Operating Time	Approx. 4 Minutes
Limit Switch	Mechanical Opening & Closing Limit Switches
Protection Rating	IP20
Operating Temperature	Approx. -20°C to +50/+55°C Depending on Document Revision
Dimensions	Approx. Ø200 × 350 mm
Weight	Approx. 7–8 KG Depending on Document Revision
Standard Shaft Compatibility	60 mm with Compatible Adapters for Other Sizes
Recommended Control Unit	NICE MC200
Emergency Battery	No

Correct Capacity – 170 KG, Not 360 KG

The most important specification for this product is the lifting capacity.

The NICE RN2040 is designed for balanced rolling shutters up to approximately 170 KG.

It should not be advertised as a 360 KG rolling shutter motor. The NICE RONDO range uses the following approximate capacities:

• RN2040 – 170 KG
• RN2080 – 280 KG
• RN2480 – 360 KG

If a rolling shutter weighs around 300–360 KG, the RN2480 should be evaluated instead of RN2040.

For Spring-Balanced Rolling Shutters

The NICE RONDO RN2040 is specifically designed for spring-balanced rolling shutters.

The spring system must correctly counterbalance the weight of the shutter before the motor is installed. The motor should not be expected to lift the complete uncontrolled dead weight of an unbalanced shutter.

Important Shutter Balance Requirement

Before installing the RN2040, the rolling shutter should move smoothly by hand and the spring-balancing system should be in good mechanical condition.

Broken springs, weak springs, damaged guides, excessive friction or a shutter that is difficult to move manually should be repaired before motor installation.

Maximum Shutter Height Up to 7 M

The current NICE technical table specifies a maximum shutter height of approximately 7 metres.

NICE's descriptive section in the same manual also refers generally to RONDO shutters up to 6 metres, while the detailed specification table gives 7 metres. For product specifications, the current technical table value of 7 m is the better figure to use.

170 Nm Maximum Torque

The RN2040 provides approximately 170 Nm maximum torque.

This output is intended to automate properly balanced shutters within the official 170 KG lifting limit.

Torque capacity does not compensate for a damaged or poorly balanced spring system.

630 W Maximum Power

NICE specifies approximately 630 W maximum absorbed power for the 230V RN2040.

The corresponding maximum current consumption is approximately 2.7 A.

230V AC Motor

The RN2040 operates directly from approximately 230V AC, 50 Hz.

The motor uses directional mains switching for opening and closing and should be wired through an appropriate shutter control system by a qualified technician.

10 rpm Maximum Speed

The NICE RN2040 has a maximum rotational speed of approximately 10 rpm.

Actual shutter opening and closing speed depends on the effective crown diameter and the number of shutter turns required.

Mechanical Opening & Closing Limit Switches

The RN2040 uses adjustable mechanical limit switches to define the fully open and fully closed positions.

The motor includes separate adjustment mechanisms for the opening and closing limits.

Easy White-Tab Limit Adjustment

NICE redesigned the RONDO limit-switch system to make programming easier.

The white-tab mechanism allows the installer to disengage the adjustment wheels temporarily, making it quicker to set the opening and closing positions.

Mechanical Position Memory

The RONDO limit-switch assembly uses mechanical position memory, allowing the selected shutter travel limits to remain mechanically established without requiring an electronic encoder.

Direct Spring-Shaft Installation

The RN2040 installs directly around the rolling shutter spring-support shaft.

This makes it suitable for central spring-balanced rolling shutter systems and eliminates the need for an external side-mounted industrial gearbox.

Compatible Shaft Diameters

The current installation manual explains that the standard RN2040 sleeves are suitable for a 48 mm spring-support shaft, while other sleeves for approximately 33 mm or 42 mm shafts can be used where required.

Current NICE commercial literature also lists shaft/crown adapter arrangements for the RONDO family. The installer should therefore confirm the actual shutter shaft and spring-box dimensions before ordering adapters.

200 mm Motor Crown

The RN2040 motor body has an approximate outside crown diameter of 200 mm.

Compatible adapters allow the motor to work with suitable rolling shutter spring-box arrangements.

Electric Brake & Release

Current NICE RONDO catalogue information identifies RN2040 as an irreversible motor version with electric brake and release device.

The installation manual also notes that the unlocking system is available on models configured with an electric brake.

For your product page, the safest wording is:

“Electric brake and manual release on the supplied RN2040 brake-equipped version.”

This avoids treating every possible historical RN2040 revision as identical.

Manual Emergency Release

On RN2040 versions equipped with the electric brake, the mechanical release allows the shutter to be operated manually if required.

The release mechanism can be operated from ground level using the appropriate NICE release arrangement.

NICE MC200 Control Unit

The NICE MC200 is the recommended control unit for the current RONDO RN2040 system.

With MC200, the shutter automation can support functions such as:

• Semi-automatic operation
• Automatic closing
• Step-by-step commands
• Programmable Step-by-Step / Open input
• Programmable Stop / Photo input
• Photocell reversal
• Resistive safety-edge input
• Radio remote-control operation

Remote Control Operation

When the RN2040 is connected to the NICE MC200 control unit, the system can support NICE radio remote controls through the appropriate radio configuration.

Compatible transmitter families include selected NICE ERA INTI, ERA ONE, ERA FLOR and NICEWAY systems depending on the installed receiver and control-unit revision.

Safety Photocells

With a compatible MC200 installation, safety photocells can be added to improve rolling shutter safety.

When the photocell is activated during closing, the control system can stop or reverse the shutter according to its programmed logic.

Resistive Safety Edge

The NICE MC200 provides a dedicated input for a compatible resistive safety edge.

For commercial rolling shutters where the closing edge can create a crushing risk, an appropriate bottom safety edge should be considered according to the project safety requirements.

Automatic Closing

The MC200 controller can be programmed for automatic closing after a selected pause period.

Automatic closing should only be enabled after the correct photocells, safety edge and other required protective devices have been installed and tested.

Step-by-Step Operation

The RONDO system can be configured for sequential operation such as:

OPEN → STOP → CLOSE → STOP

through a compatible push button or radio command when programmed through the control unit.

Thermal Protection

The RONDO gearmotor includes thermal protection.

If the motor overheats because the automation is used beyond its operating limits, the thermal cut-out interrupts the power supply and automatically resets after the motor returns to a normal temperature.

Very Important Duty-Cycle Limit

RN2040 is not an intensive-use industrial shutter motor.

The current NICE technical manual specifies approximately 1 cycle/hour at rated torque for a 3 metre-high shutter, while the current product brochure gives approximately 4 minutes maximum continuous operation.

Therefore, do not describe RN2040 as suitable for continuous or intensive industrial operation.

Where RN2040 Is Best Used

The RN2040 is best suited to balanced rolling shutters that operate a limited number of times per hour, such as:

• Retail shops
• Small commercial entrances
• Workshops
• Storage rooms
• Small warehouse shutters
• Service entrances
• Commercial rolling doors within the 170 KG limit

Not Suitable for High-Frequency Operation

For warehouse or industrial shutters that open and close repeatedly throughout the day, a more appropriate industrial-duty shutter operator should be selected.

The motor must be selected according to shutter weight, height, balancing and operating frequency rather than only physical dimensions.

IP20 Protection Rating

The current NICE RN2040 technical specification lists an IP20 protection rating.

This is another important correction to keep in mind: RN2040 should not be described as a weatherproof outdoor motor.

The operator should be installed within the protected rolling shutter assembly and should not be exposed directly to rain or water.

Operating Temperature

The current NICE installation manual gives approximately -20°C to +55°C, while the current RONDO product brochure lists approximately -20°C to +50°C.

Because NICE documentation revisions differ slightly, using -20°C to +50°C on the sales page is the conservative specification.

RN2040 Dimensions

The 230V NICE RN2040 measures approximately:

• Diameter: 200 mm
• Length: 350 mm

This compact shaft-mounted design allows the motor to fit inside compatible spring-balanced shutter assemblies.

NICE RN2040 Applications

• Shop rolling shutters
• Retail rolling shutters
• Commercial rolling doors
• Workshop shutters
• Small warehouse shutters
• Service entrance shutters
• Storage-room shutters
• Spring-balanced shutters
• Rolling shutters up to approximately 170 KG
• Rolling shutters up to approximately 7 m high within operating limits

Recommended NICE RN2040 UAE Package

• 1 × NICE RONDO RN2040 Rolling Shutter Motor
• 1 × Electric Brake / Release Assembly where supplied
• 1 × Compatible Shaft / Crown Adapter Set
• 1 × NICE MC200 Control Unit if included in seller package
• 1 × Compatible NICE Radio Control System if included
• 2 × Remote Controls if included by seller
• 1 Pair × Safety Photocells if included
• 1 × Push Button or Key Selector if included

Important: MC200, remote controls, photocells and push buttons should only be described as included if they are physically part of your UAE package. NICE's RN2040 motor package and optional accessories can vary by market and product revision.

NICE RN2040 vs RN2080 vs RN2480

Specification	RN2040	RN2080	RN2480
Lifting Capacity	170 KG	280 KG	360 KG
Power Supply	230V AC	230V AC	230V AC
Maximum Current	2.7 A	5.4 A	5.4 A
Maximum Power	630 W	1260 W	1260 W
Maximum Torque	170 Nm	280 Nm	400 Nm
Maximum Speed	10 rpm	10 rpm	9 rpm
Maximum Shutter Height	7 m	7 m	7 m
Protection Rating	IP20	IP20	IP20

Choose RN2040 for balanced shutters up to approximately 170 KG. Choose RN2080 for heavier shutters up to approximately 280 KG, and choose RN2480 for shutters up to approximately 360 KG.

RN2040 vs Side-Mounted Rolling Shutter Motor

The RONDO RN2040 mounts directly on the spring-support shaft and is designed specifically for balanced rolling shutters.

A conventional side-mounted industrial shutter motor is installed externally at the side of the shutter barrel and is normally selected for heavier shutters or more demanding duty requirements.

The correct motor depends on the shutter construction rather than only the shutter weight.

Professional NICE RN2040 Installation UAE

Professional installation of the NICE RONDO RN2040 rolling shutter motor is available throughout the UAE.

Installation can include shutter inspection, spring-balance testing, motor fitting, shaft and crown adapter selection, electrical wiring, mechanical limit adjustment, MC200 control-board installation, remote programming, photocell installation and complete safety testing.

Installation Checks Before Fitting RN2040

• Confirm actual shutter weight is within 170 KG
• Check shutter height
• Inspect spring balancing
• Check spring-support shaft diameter
• Check spring-box diameter
• Confirm shutter moves freely by hand
• Check guide rails for excessive friction
• Confirm correct motor orientation
• Set opening mechanical limit switch
• Set closing mechanical limit switch
• Install appropriate control devices
• Test emergency manual release
• Test photocells and safety edge where installed
• Verify motor operating time remains within limits

NICE RN2040 Repair & Spare Parts UAE

Technical support is available for NICE RONDO RN2040 repair, maintenance and spare parts throughout the UAE.

Service work can include motor replacement, brake repair, release mechanism service, mechanical limit-switch adjustment, capacitor replacement, MC200 control-board troubleshooting, remote programming, photocell replacement and rolling shutter mechanical inspection.

Why Choose NICE RONDO RN2040?

• Designed specifically for balanced rolling shutters
• Official capacity up to approximately 170 KG
• 230V AC motor
• 630 W maximum power
• 170 Nm maximum torque
• 10 rpm maximum speed
• Maximum shutter height up to approximately 7 m
• Mechanical opening and closing limit switches
• Fast white-tab limit adjustment
• Direct spring-shaft installation
• Multiple adapter options
• Electric brake and manual release on appropriate version
• Compatible with NICE MC200
• Suitable for commercial shop shutters
• Professional UAE installation available

Buy NICE RONDO RN2040 Rolling Shutter Motor UAE

Buy the NICE RONDO RN2040 rolling shutter motor in UAE for professional automation of balanced commercial and residential rolling shutters weighing up to approximately 170 KG.

Supply, professional installation, programming, maintenance and repair support is available across Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE RN2040?
RN2040 is a 230V electromechanical shaft-mounted motor from the NICE RONDO range for spring-balanced rolling shutters.

What is the maximum shutter weight?
The official lifting capacity is approximately 170 KG.

Is RN2040 a 360 KG shutter motor?
No. RN2040 is rated for approximately 170 KG. The 360 KG model in the RONDO range is RN2480.

What is the maximum shutter height?
The current NICE technical table lists approximately 7 metres.

What voltage is RN2040?
The standard RN2040 operates from 230V AC, 50 Hz.

What is the motor power?
NICE specifies approximately 630 W maximum power consumption.

What is the maximum torque?
Approximately 170 Nm.

What is the motor speed?
Approximately 10 rpm maximum.

Does RN2040 have mechanical limit switches?
Yes. Opening and closing positions are set using adjustable mechanical limit switches.

Does RN2040 have an electric brake?
Current NICE catalogue information identifies RN2040 as being supplied with electric brake and release device. Package revision should still be confirmed against actual stock.

Does it have manual release?
Brake-equipped RN2040 versions include a mechanical release arrangement for manual operation.

Which control board is recommended?
NICE recommends the MC200 control unit for the current RONDO system.

Can RN2040 use remote controls?
Yes. Remote control operation can be added through the compatible MC200 radio system.

Can I add photocells?
Yes. Compatible safety photocells can be connected through the appropriate control unit.

Is RN2040 suitable for intensive industrial operation?
No. NICE specifies approximately one cycle per hour at rated torque for a 3 m shutter and approximately four minutes maximum continuous operation. For intensive operation, a different industrial shutter motor should be selected.

Is RN2040 waterproof?
No. Its official protection rating is IP20, so it should be installed inside the protected shutter assembly and not exposed directly to rain or water.

Do you provide NICE RN2040 installation in UAE?
Yes. Professional installation, limit adjustment, repair and maintenance support is available throughout the UAE.
