NICE M-FAB MFAB3000 Underground Swing Gate Motor UAE

Italian Underground Swing Gate Automation for Premium Residential Gates

The NICE M-FAB MFAB3000 Underground Swing Gate Motor is a premium Italian-made electromechanical automation system designed for swing gates with leaves up to 3 meters. Installed below ground level, the M-FAB system preserves the original appearance of the gate while delivering powerful, smooth and reliable automation.

Manufactured by Nice Italy, the MFAB3000 is an irreversible electromechanical gear motor engineered for residential villas, luxury properties, compounds and commercial entrances where aesthetics and performance are equally important. The concealed underground installation makes it ideal for high-end architectural projects throughout Dubai, Sharjah, Abu Dhabi and the UAE.

The system features solid internal metal components, a robust die-cast aluminium structure and an impressive IP67 waterproof protection rating, ensuring long-term reliability even in demanding outdoor environments. Stainless steel foundation boxes are available for extreme conditions and enhanced corrosion resistance.

The M-FAB series offers maximum flexibility with inside and outside manual release options, mechanical stop on closure, and optional opening angles up to 360°. Compatible with previous NICE Metro installations, it provides an excellent upgrade solution for existing underground gate automation systems.

Designed to withstand UAE heat, humidity and dust, the NICE M-FAB MFAB3000 combines discreet installation, advanced engineering and dependable performance for premium gate automation projects.

Key Features

• Underground swing gate automation system
• Suitable for gate leaves up to 3 meters
• Concealed installation preserves gate aesthetics
• Irreversible electromechanical gear motor
• Available in 230V AC and 24V DC versions
• Magnetic encoder available on 24V models
• Solid internal metal components
• Die-cast aluminium construction
• IP67 waterproof protection
• Mechanical stop on closure
• Maximum standard opening angle 110°
• Optional opening angle up to 360°
• Inside and outside manual release system
• Stainless steel foundation box option available
• Compatible with NICE Metro series
• Made in Italy

Technical Specifications

• Model: MFAB3000
• Motor Type: Underground Electromechanical Gear Motor
• Maximum Gate Leaf Width: Up to 3 meters
• Power Supply: 230 Vac 50 Hz
• Current Absorption: 1.2 A
• Power Consumption: 250 W
• Speed: 1.14 rpm
• Torque: 300 Nm
• Work Cycle: 30 Cycles/Hour
• Protection Rating: IP67
• Operating Temperature: -20°C to +50°C
• Dimensions: 390 × 322 × 194.5 mm
• Weight: 11 kg
• Country of Origin: Italy

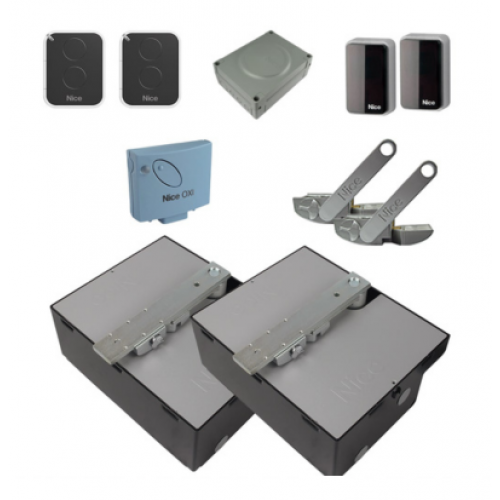

NICE M-FAB Kit Includes

• 2 × NICE MFAB3000 Underground Gear Motors
• 2 × NICE MECFR00 Galvanized Steel Foundation Boxes
• 2 × NICE MEA3 Lever Unlock Systems
• 2 × NICE FLO2RE Remote Controls (433.92 MHz)
• 1 × NICE OXIBD Radio Receiver
• 1 × NICE MC800 Control Unit
• 1 × Pair of NICE EPM Outdoor Photocells
• 1 × NICE ELAC Flashing Warning Light
• 1 × Push Button

Ideal Applications in UAE

• Luxury Residential Villas
• Architectural Gates Requiring Hidden Automation
• Premium Residential Compounds
• Commercial Property Entrances
• Decorative Wrought Iron Gates
• High-End Gate Automation Projects
• Properties Requiring Invisible Automation Systems

Why Choose NICE M-FAB MFAB3000?

• Completely hidden underground installation
• Premium Italian engineering
• IP67 waterproof protection
• Suitable for harsh UAE weather conditions
• High torque performance
• Multiple manual release options
• Compatible with existing Metro systems
• Long-lasting corrosion-resistant construction

NICE M-FAB MFAB3000 Supplier in UAE

We supply and install NICE M-FAB MFAB3000 Underground Swing Gate Motors across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain. Contact us for professional installation, maintenance services, technical support and genuine NICE spare parts.
