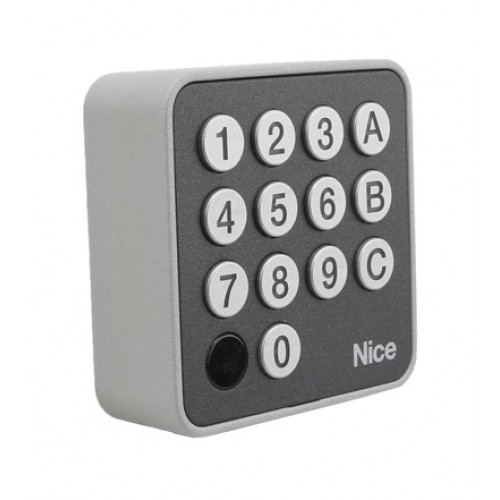

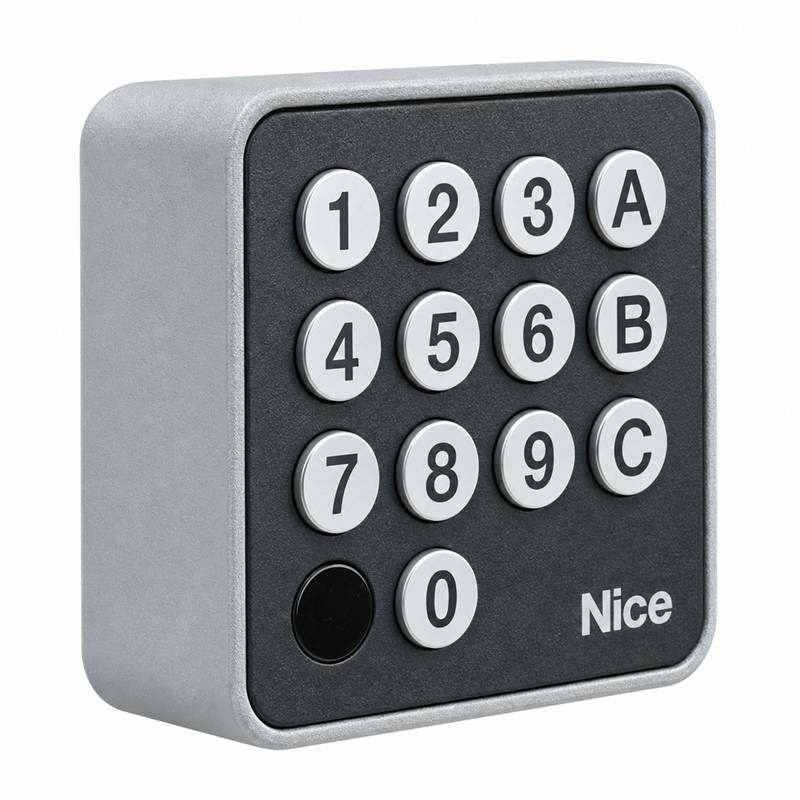

NICE ERA EDSWG Wireless Gate Keypad – 3 Channel

NICE EDSWG 433.92 MHz Wireless Access Keypad UAE

The NICE ERA EDSWG Wireless Keypad is a genuine NICE fixed radio transmitter designed for convenient code-based control of compatible automatic gates, garage doors, rolling shutters, awnings and other automation systems.

The EDSWG combines a numeric keypad from 0 to 9 with three independent command buttons labelled A, B and C. Each command can be associated with its own security password, allowing users to operate up to three compatible automation commands without carrying a conventional handheld remote control.

The keypad communicates wirelessly at 433.92 MHz, requires no control cable between the keypad and automation receiver, and features an IP54-rated aluminium housing suitable for correctly installed outdoor applications.

NICE EDSWG Key Features

• Original NICE ERA wireless keypad
• Official model: EDSWG
• Fixed wireless radio transmitter
• 433.92 MHz radio frequency
• Numeric keypad from 0 to 9
• 3 independent command buttons: A, B and C
• 3 separately configurable security passwords
• Password length from 1 to 8 digits
• Password protection can be disabled for selected commands
• Wireless battery-powered operation
• No control cable required to the automation receiver
• Automatic keypad illumination
• 6-second keypad entry interval
• IP54 protection rating
• Aluminium housing
• Surface-mounted installation
• Suitable for indoor and outdoor use when correctly installed
• Compatible with suitable NICE radio receivers

NICE EDSWG Technical Specifications

Brand	NICE
Series	ERA
Model	EDSWG
Product Type	Wireless Digital Keypad / Fixed Radio Transmitter
Radio Frequency	433.92 MHz
Channels / Commands	3 – A, B and C
Numeric Keys	0–9
Security Passwords	3 Independent Passwords
Password Length	1–8 Digits
Password Disable Function	Yes
Installation	Surface Mounted
Housing	Aluminium
Protection Rating	IP54
Operating Temperature	-10°C to +55°C
Dimensions	70 × 70 × 27 mm
Weight	Approx. 215 g
Power	Battery Powered – verify battery type against current stock revision

Wireless Gate Access Without a Remote Control

The NICE EDSWG allows authorised users to operate a compatible automation by entering a security code directly on the installed keypad.

This is particularly convenient for properties where users should have gate access without carrying a physical handheld remote.

Three Independent Command Buttons

The keypad provides three command buttons:

• A
• B
• C

Each button can transmit a separate radio command and can have its own security password.

The exact automation function assigned to each button depends on how the EDSWG is memorised in the compatible radio receiver.

Three Separate Security Passwords

The EDSWG supports three security passwords, with one password associated with each A, B or C command.

This means one installed keypad can provide different command functions while maintaining separate code protection for each function.

1 to 8 Digit Security Codes

Each password can contain from 1 to 8 numeric digits using numbers from 0 to 9.

Longer and non-obvious passwords are recommended where stronger access restriction is required.

Change the Factory Passwords

The EDSWG is supplied with factory-programmed passwords.

For security, the factory passwords should be replaced with private user-selected codes during commissioning.

Do not leave the keypad permanently operating with its default codes.

Password Can Be Disabled

NICE allows password protection to be disabled for an individual command.

This means a selected A, B or C command can operate without requiring a numeric password.

Important: disabling the password removes the access restriction for that command, so anyone who can reach the keypad may be able to activate it.

433.92 MHz Wireless Communication

The NICE EDSWG communicates by radio at 433.92 MHz.

Because it is a wireless transmitter, there is no need to install a command cable from the keypad position all the way to the gate control unit.

Radio Protocol Compatibility

Frequency alone does not guarantee compatibility.

The installed NICE receiver must support the radio coding used by the exact EDSWG revision.

Before programming the keypad, verify the receiver model and its supported radio protocol.

Do Not Select Compatibility by Frequency Alone

A receiver operating at 433.92 MHz is not automatically compatible with every NICE or third-party 433.92 MHz transmitter.

Always check:

• Receiver model
• Radio coding protocol
• Receiver memory availability
• Programming mode
• Exact EDSWG product revision

Automatic Keypad Backlight

The EDSWG includes illuminated keypad operation to make code entry easier in low-light conditions.

The illumination activates during keypad use and switches off automatically after the operating interval.

6-Second Entry Interval

During password and command entry, the user has approximately 6 seconds after pressing a key to press the next required key.

If this interval expires, the password sequence must be started again.

IP54 Protection

The NICE EDSWG has an official IP54 protection rating.

This makes it suitable for correctly installed outdoor locations, but it should not be described as waterproof or submersible.

Aluminium Housing

The EDSWG uses a robust aluminium enclosure designed for fixed wall installation.

Its compact appearance suits villa entrances, pedestrian access areas, commercial entrances and other automation-control locations.

Surface-Mounted Installation

The EDSWG is designed for surface mounting.

Because command communication is wireless, installation is simpler than a conventional hard-wired digital keypad where a cable would need to run back to an access controller.

Battery-Powered Operation

The EDSWG is powered by internal battery power and therefore does not normally require an external power cable for standard installation.

Battery specification has changed across documented product revisions, so the replacement battery should always match the marking inside the exact keypad being serviced.

Battery Life

Official documentation for EDSWG revisions indicates an estimated battery life of approximately 2 years with around 10 transmissions per day.

Actual life depends on frequency of use, temperature, battery quality and operating conditions.

Low Battery and Reduced Performance

If the keypad becomes unreliable or its radio range decreases, check the battery before replacing the complete keypad.

Always use the correct battery type and polarity specified for the installed EDSWG revision.

70 × 70 × 27 mm Compact Design

The NICE EDSWG measures approximately 70 × 70 × 27 mm.

Its compact housing allows installation near gate entrances, pedestrian gates, garage doors and access points without requiring a large mounting area.

Operating Temperature

The documented operating temperature range is approximately -10°C to +55°C.

For UAE installations, correct positioning and mounting should be used to avoid unnecessary exposure to extreme reflected heat.

Sliding Gate Applications

The EDSWG can operate compatible NICE sliding gate automation where the installed radio receiver supports the keypad's radio coding.

Typical uses include villa entrances, residential compounds and commercial sliding gates.

Swing Gate Applications

The wireless keypad can also operate compatible swing gate systems.

For example, separate commands may be assigned to full gate opening and pedestrian opening where the control unit and receiver configuration support those functions.

Garage Door Applications

NICE documents EDSWG for compatible garage-door automation.

This allows users to open a garage without carrying a handheld transmitter when the installed receiver is compatible.

Rolling Shutter Applications

The EDSWG can be used for compatible rolling shutter automation systems.

Its three command channels can be useful where separate functions are required, depending on receiver and controller configuration.

Awning and Screen Automation

NICE also documents the EDSWG for compatible sun-screen and awning automation applications.

Parking Gate and Barrier Applications

The EDSWG can be useful for compatible parking-access automation where users need code-based entry without individual handheld remotes.

Receiver compatibility must be confirmed before installation.

Villa Gate Access

For residential villas, the EDSWG provides a convenient fixed access point for family members, staff or authorised visitors who know the security code.

Apartment and Building Access

The keypad may also be suitable for compatible apartment parking entrances and building gate systems.

For high-user-count access control requiring individual user codes, audit logs or remote credential management, a dedicated access-control keypad may be more appropriate than a three-password radio transmitter.

Commercial Applications

The EDSWG can be used in compatible offices, warehouses, commercial properties and controlled parking entrances.

It is important to understand that EDSWG provides three command passwords; it is not a large multi-user access-control database.

EDSWG vs Wired Access-Control Keypad

Feature	NICE EDSWG	Wired Access Keypad
Communication	Wireless Radio	Wired
Frequency	433.92 MHz	Not Required for Local Wired Output
Power	Battery	External Power Supply
Command Buttons	3	Depends on Model
User Management	3 Command Passwords	Can Support Many Individual Users
Cabling to Controller	No Radio Command Cable	Normally Required

EDSWG vs NICE EKS Key Selector

Feature	NICE EDSWG	NICE EKS
Access Method	Numeric Password	Physical Key
Connection	Wireless Radio	Wired Contacts
Battery	Yes	No
Commands	3 Radio Commands	2 Key Directions
Protection	IP54	IP44

EDSWG vs Handheld Gate Remote

A handheld remote travels with the user, while EDSWG remains fixed at the entrance.

The keypad is useful where several authorised people need occasional access without each person carrying a separate remote control.

Programming to the Receiver

The EDSWG must be memorised into a compatible radio receiver in a similar way to a fixed radio transmitter.

The exact programming procedure depends on the receiver model.

Always use the receiver's official programming procedure rather than assuming one method applies to every NICE control unit.

Changing the Security Password

Each A, B and C command password can be changed independently.

For security, replace the factory passwords during installation and record the new codes securely.

Forgotten Password

If the security password is forgotten, follow the official EDSWG recovery or reset procedure for the exact product revision.

Do not repeatedly guess passwords or dismantle the unit unnecessarily.

Keypad Does Not Operate the Gate

If the EDSWG does not activate the automation, check:

• Correct password entry
• Correct A, B or C command button
• Battery condition
• Radio receiver compatibility
• Receiver programming
• Distance from receiver
• Radio interference
• Receiver antenna condition

Keypad Works Only Near the Gate

Reduced radio range can be caused by:

• Weak battery
• Metal mounting surfaces
• Walls or reinforced concrete
• Poor receiver antenna position
• Radio interference
• Incorrect receiver antenna

Radio Range

Published range figures vary between EDSWG documentation revisions.

Because actual radio range also depends heavily on the installation environment, avoid advertising an absolute guaranteed distance. Walls, metal structures, radio interference, receiver antenna positioning and battery condition can significantly affect performance.

Security Recommendations

• Change all factory passwords after installation
• Avoid simple codes such as 1111 or 1234
• Do not display the access code near the keypad
• Change the code when an authorised user's access should be removed
• Keep password protection enabled where access restriction is required
• Delete lost radio credentials from the receiver where applicable

Maintenance

The EDSWG requires minimal maintenance.

Periodically inspect:

• Battery condition
• Housing and mounting
• Keypad buttons
• Signs of moisture or oxidation
• Cover sealing
• Radio operation

Recommended NICE EDSWG UAE Package

• 1 × NICE ERA EDSWG Wireless Keypad
• Battery / batteries as supplied with current stock
• Mounting accessories if included in factory packaging
• Installation instructions if included

Professional installation and receiver programming should be listed separately unless included in your selling package.

NICE EDSWG Installation UAE

Professional installation and programming support is available for compatible NICE gate, garage-door, barrier and shutter automation systems.

Service is available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Why Choose NICE EDSWG?

• Original NICE wireless access accessory
• 433.92 MHz radio operation
• 3 independent command buttons
• 3 configurable security passwords
• 1–8 digit password length
• No control cable required to automation receiver
• Battery-powered operation
• Automatic keypad illumination
• IP54 protection
• Aluminium housing
• Compact 70 × 70 × 27 mm design
• Suitable for compatible gates, garage doors, shutters and awnings

Buy NICE ERA EDSWG Wireless Keypad UAE

Buy the NICE ERA EDSWG wireless gate keypad in UAE for compatible automatic sliding gates, swing gates, garage doors, rolling shutters, barriers and other NICE automation systems.

Supply, programming and professional installation support are available throughout Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE EDSWG?
NICE EDSWG is a fixed wireless digital keypad and radio transmitter for controlling compatible automation systems using security passwords.

How many commands does EDSWG have?
Three independent command buttons: A, B and C.

How many passwords can be configured?
Three security passwords, one associated with each command button.

How long can the password be?
From 1 to 8 numeric digits.

Can password protection be disabled?
Yes, for selected commands. However, doing so allows that command to be used without entering a security password.

What frequency does EDSWG use?
433.92 MHz.

Is EDSWG wired to the gate control board?
No control-command cable is normally required because EDSWG communicates wirelessly with a compatible radio receiver.

Does EDSWG need a battery?
Yes. It is battery powered. Check the battery specification marked on the exact product revision before replacement.

Is NICE EDSWG waterproof?
No. It is IP54 rated and suitable for correctly installed outdoor applications, but it should not be described as waterproof or submersible.

What are the dimensions?
Approximately 70 × 70 × 27 mm.

What is the weight?
Approximately 215 g.

What is the operating temperature?
Approximately -10°C to +55°C.

Can EDSWG control a sliding gate?
Yes, when the installed radio receiver is compatible with the exact EDSWG radio coding.

Can it control a garage door?
Yes. NICE documents EDSWG for compatible garage-door automation.

Can one button open the full gate and another pedestrian opening?
Potentially yes, if the compatible receiver and control unit allow those commands to be memorised separately.

Does every 433.92 MHz NICE receiver work with EDSWG?
No. Frequency alone does not guarantee compatibility. The receiver's supported radio coding must also match.

Do you provide EDSWG programming and installation in UAE?
Yes. Programming and installation support is available for compatible NICE automation systems throughout the UAE.
