NICE ERA ELDC LED Flashing Gate Warning Light UAE

NICE ELDC 12–36 V Gate Flashing Light with Integrated Aerial

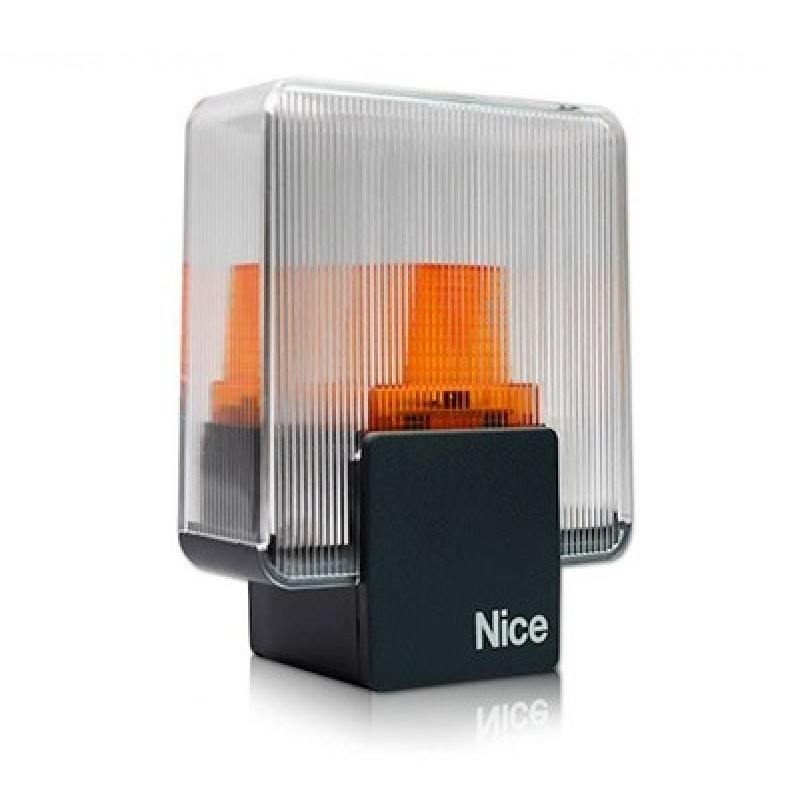

The NICE ERA ELDC LED Flashing Light is a genuine NICE visual warning device designed for automatic gates, garage doors and road-barrier automation systems.

The ELDC provides a highly visible flashing signal while the connected automation is operating, helping pedestrians, drivers and property users recognise that a gate, barrier or garage door is moving.

NICE equips the ELDC with a white LED light source, built-in flashing circuit and integrated aerial. The unit operates from a 12–36 V supply and has an official IP44 protection rating for correctly installed outdoor automation applications.

NICE ELDC Key Features

• Original NICE ERA flashing warning light
• Official model: ELDC
• LED visual warning signal
• White LED light source
• Built-in flashing circuit
• Integrated aerial for compatible NICE radio installations
• 12–36 V power supply
• Maximum operating cycle 50%
• IP44 protection rating
• Operating temperature -20°C to +50°C
• 132 × 72 × 155 mm dimensions
• Can be installed on horizontal or vertical surfaces
• Designed for automatic gates
• Designed for garage-door automation
• Designed for road and parking barriers
• Suitable for compatible residential and commercial automation systems

NICE ELDC Technical Specifications

Brand	NICE
Series	ERA EL
Model	ELDC
Product Type	LED Flashing Warning Light
Power Supply	12–36 V
Light Source	White LED
Internal Flashing Circuit	Yes
Maximum Operating Cycle	50% – 5 s ON / 5 s OFF
Integrated Aerial	Yes
Protection Rating	IP44
Operating Temperature	-20°C to +50°C
Dimensions	132 × 72 × 155 mm
Mounting	Horizontal or Vertical Surface
Applications	Automatic Gates, Garage Doors & Road Barriers

12–36 V Power Supply

NICE specifies a 12–36 V supply range for the ELDC.

This wide low-voltage operating range makes the flashing lamp suitable for various compatible NICE gate and barrier control units.

The installer must always confirm the voltage and electrical characteristics of the automation control unit's FLASH output before connection.

Do Not Describe ELDC as Only 24 V

The NICE ELDC is often described in the market as a “12/24V” or “24V” flashing light, but the official NICE ELAC/ELDC installation manual gives the ELDC supply specification as 12–36 V.

For the technical table, therefore, use the official specification:

Power Supply: 12–36 V

White LED Warning Light

The ELDC uses an energy-efficient white LED light source rather than a traditional replaceable incandescent bulb.

LED technology offers low maintenance and reliable visual signalling for gate and barrier automation.

Built-In Flashing Circuit

The ELDC includes its own internal flashing circuit.

This is an important distinction because the lamp is designed to generate its flashing warning pattern when powered from the appropriate automation output.

50% Maximum Operating Cycle

The official NICE manual specifies a maximum operating cycle of 50% for ELDC, expressed as:

• 5 seconds ON
• 5 seconds OFF

This specification belongs to the flashing lamp itself and should not be confused with the duty cycle of the gate motor.

Integrated Aerial

The NICE ELDC includes an integrated aerial for compatible NICE radio receiver installations.

This can provide a convenient antenna position above the gate or barrier area where the installation design uses the ELDC aerial connection.

Integrated Aerial Does Not Make ELDC a Radio Receiver

The aerial inside ELDC does not store remotes or receive commands by itself.

It functions as an antenna for a compatible radio receiver connected to the automation system.

The actual remote-control protocol and compatibility are determined by the installed receiver.

433.92 MHz Radio Systems

ELDC is widely used as an aerial accessory with compatible NICE 433.92 MHz radio receiver installations.

However, the flashing lamp should not be advertised as a universal 433.92 MHz receiver.

The radio receiver, not the lamp, determines transmitter compatibility.

IP44 Outdoor Protection

The NICE ELDC has an official IP44 protection rating.

This makes it suitable for correctly installed outdoor gate and barrier applications.

IP44 does not mean waterproof or submersible, so the product should not be marketed as completely waterproof.

Outdoor Installation in UAE

For UAE installations, ensure the ELDC is:

• Securely fixed to a solid surface
• Installed in the approved orientation
• Correctly sealed at cable entry points
• Positioned away from unnecessary direct physical impact
• Kept within the official operating-temperature range

Avoid statements guaranteeing operation under unlimited extreme heat, dust or water exposure.

Operating Temperature

The official NICE operating-temperature range is -20°C to +50°C.

For exposed UAE sites, avoid mounting the unit where surrounding surfaces or enclosed locations can raise temperatures beyond the manufacturer's specified limit.

132 × 72 × 155 mm Dimensions

The ELDC measures approximately 132 × 72 × 155 mm.

The distinctive vertical design provides strong visual presence while remaining compact enough for installation on gate posts, pillars, walls and barrier cabinets.

Horizontal or Vertical Mounting

NICE specifies that the flashing light can be installed on an approved horizontal or vertical surface.

The installation position should ensure:

• Good long-distance visibility
• Easy access for future maintenance
• Stable attachment to a solid surface

Gate Movement Warning

The primary function of the ELDC is to provide a clear visual warning when an automation system is operating.

This can improve awareness for:

• Drivers
• Pedestrians
• Security staff
• Property occupants
• Visitors

ELDC Does Not Detect Obstacles

The ELDC is a visual signalling accessory.

It is not a photocell, safety edge, loop detector or obstacle sensor.

It does not detect people or vehicles and should not be presented as a replacement for appropriate safety devices.

ELDC Is Not a Safety Control Device

The flashing lamp can improve awareness of automation movement, but it does not itself stop or reverse a gate.

The control unit, photocells, safety edges and other configured safety devices determine the actual automation safety response.

Sliding Gate Applications

The NICE ELDC can be used with compatible NICE sliding gate controllers providing the correct flashing-light output.

Typical applications include:

• Villa sliding gates
• Residential compounds
• Commercial entrances
• Warehouse gates
• Industrial access gates

NICE ROBUS Applications

ELDC is used in current NICE ROBUS kit configurations and is suitable for compatible ROBUS control units equipped with the required flashing-light output.

For example, current NICE RBS-series kits are supplied with EPMB photocells and ELDC flashing lights.

NICE RUN Applications

The ELDC can be used with compatible NICE RUN sliding gate systems where the control unit provides the appropriate low-voltage flashing-light connection.

Swing Gate Applications

The ELDC can also provide movement warning for compatible NICE swing gate automation systems.

Compatibility depends mainly on the control unit and its flashing-light output rather than simply on the motor model.

NICE TOONA Applications

Compatible NICE TOONA control-unit installations can use the ELDC where the selected controller provides the correct output.

NICE WINGO Applications

The ELDC is also commonly supplied in current NICE swing-gate kits using compatible control units.

Always verify the exact kit and control board before installation.

MC824H Applications

The NICE MC824H can be used in automation systems where an appropriate flashing-light output is configured for a compatible warning lamp.

The correct output terminals and settings must be confirmed from the MC824H installation manual.

MC800 Applications

Compatible MC800 installations may also use a NICE flashing warning light.

Always connect ELDC to the control unit output intended for a compatible flashing lamp rather than to an arbitrary accessory terminal.

Parking Barrier Applications

NICE specifies the ERA EL range for road-barrier automation as well as gates and garage doors.

The ELDC can therefore provide clear visual movement indication on compatible parking barrier systems.

Garage Door Applications

NICE's official manual specifically identifies garage-door automation as one of the intended applications of ERA EL flashing lights.

ELDC is therefore suitable where the garage-door control unit provides the correct flashing-light output.

Do Not Connect Directly to 230 V

Important: ELDC is the low-voltage 12–36 V model.

It must not be connected directly to a 230 V mains output unless an approved interface or supply arrangement specifically provides the correct ELDC voltage.

For higher-voltage applications, NICE also has a separate ELAC model.

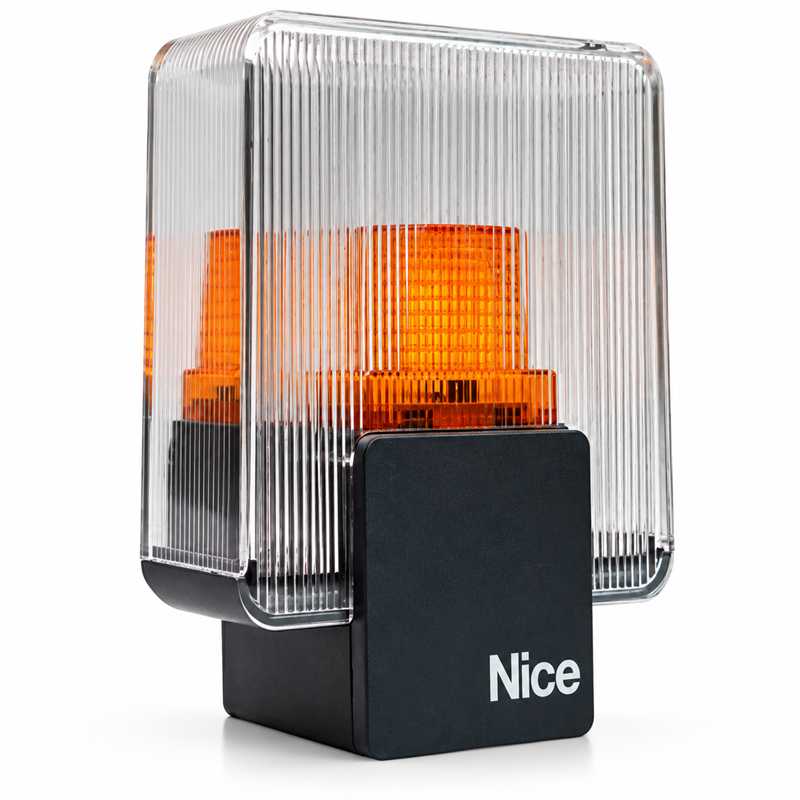

NICE ELDC vs ELAC

Feature	NICE ELDC	NICE ELAC
Power Supply	12–36 V	90–240 V AC, 50/60 Hz
Light Source	White LED	White LED
Internal Flasher	Yes	Yes
Maximum Operating Cycle	50%	33%
Protection	IP44	IP44
Temperature	-20°C to +50°C	-20°C to +50°C
Dimensions	132 × 72 × 155 mm	132 × 72 × 155 mm

Choosing ELDC or ELAC

Select the flashing-light model according to the voltage and type of FLASH output provided by the automation control unit.

Do not choose ELDC or ELAC solely according to the motor's name.

Connection to FLASH Output

The ELDC is normally connected to the dedicated flashing-light output of a compatible control unit.

The terminal name may be shown as:

• FLASH
• FLASHING LIGHT
• WARNING LIGHT

The exact voltage, polarity and wiring instructions must be checked in the control-unit manual.

Flashing Controlled During Gate Movement

When connected and configured correctly, the automation control unit supplies the ELDC during the required gate or barrier operating sequence.

The ELDC's internal electronics then produce the flashing visual indication.

Pre-Flashing Function

Some NICE control units can be programmed to activate a flashing lamp before the gate starts moving.

This is a function of the control unit, not an independent ELDC setting.

Do not claim that ELDC itself provides a programmable pre-flash delay.

Aerial Connection

The integrated aerial has a separate aerial connection from the flashing-light power terminals.

Where used, the aerial should be connected according to the compatible NICE receiver or control-unit instructions.

Do Not Confuse AERIAL and FLASH Terminals

The lamp power connection and radio aerial connection serve different functions.

Incorrect wiring can cause poor radio performance or prevent the warning lamp from operating correctly.

Improving Remote-Control Reception

Where the integrated aerial is connected to a compatible NICE receiver, locating the ELDC higher on a gate post can provide a more favourable antenna position than leaving the radio antenna inside a metal control cabinet.

Actual radio range still depends on the receiver, transmitter, installation environment, interference, antenna cable and surrounding structures.

No Guaranteed Remote Range Increase

Do not advertise a fixed number of metres by which ELDC will increase remote range.

The integrated aerial may improve reception in a suitable installation, but results vary according to site conditions.

Installation Position

NICE requires the chosen position to provide good visibility of the flashing lamp from a distance.

The location should also allow easy maintenance and secure fixing to a stable surface.

Gate Flashing Light Installation UAE

A professional ELDC installation can include:

• Mounting the warning lamp
• Running the flashing-light cable
• Connecting the FLASH output
• Connecting the integrated aerial where required
• Checking supply voltage
• Testing lamp operation
• Testing remote reception where aerial is used
• Checking weather sealing and mounting

ELDC Does Not Flash

If the lamp does not operate, check:

• Control-unit FLASH output voltage
• 12–36 V compatibility
• Wiring continuity
• Loose terminals
• Controller programming
• Damaged cable
• ELDC internal electronics

ELDC Stays On Continuously

If the LED remains continuously illuminated instead of flashing, verify:

• Correct ELDC model
• Correct connection terminals
• Control-unit output type
• Supply voltage
• Any incorrect external bypass wiring

The official ELDC includes an internal flashing function.

ELDC Flashes but Remote Range Is Poor

The warning lamp and aerial functions are electrically separate.

If the lamp operates but radio range remains poor, check:

• Aerial connection
• Receiver antenna terminal
• Coaxial / antenna wiring where applicable
• Receiver compatibility
• Nearby metal structures
• Radio interference
• Remote-control battery

Maintenance

Periodically inspect the ELDC for:

• Loose mounting screws
• Cracked housing
• Water ingress
• Damaged cable entries
• Dirt reducing light visibility
• Loose electrical connections
• Aerial wiring damage

Disconnect automation power before opening or servicing electrical connections.

Recommended NICE ELDC UAE Package

• 1 × NICE ERA ELDC LED Flashing Light
• Integrated Aerial
• Mounting Components if Included in Current Factory Box
• Installation Instructions if Included

Additional wiring, brackets or installation service should only be shown as included if they are physically supplied with your selling package.

NICE ELDC Installation & Replacement UAE

Supply, replacement and professional installation support is available for compatible NICE automatic gates, parking barriers and garage-door systems.

Service is available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Why Choose NICE ELDC?

• Original NICE ERA accessory
• 12–36 V operating supply
• Energy-efficient white LED
• Built-in flashing circuit
• Integrated aerial
• 50% maximum flashing operating cycle
• IP44 protection
• -20°C to +50°C operating temperature
• Horizontal or vertical mounting
• Suitable for compatible gates, garage doors and barriers
• Compact 132 × 72 × 155 mm design

Buy NICE ELDC LED Flashing Light UAE

Buy the NICE ERA ELDC LED gate flashing light in UAE for compatible sliding gates, swing gates, garage doors and parking barrier automation.

Supply, installation, replacement and technical support are available throughout Dubai, Sharjah, Abu Dhabi, Ajman, Al Ain, Ras Al Khaimah, Fujairah and Umm Al Quwain.

Frequently Asked Questions

What is NICE ELDC?
NICE ELDC is an LED flashing warning light with integrated aerial for compatible automatic gates, garage doors and road barriers.

What voltage does NICE ELDC use?
The official NICE specification is 12–36 V.

Is ELDC only 24V?
No. It is often marketed as a 12/24V lamp, but the official ELDC manual specifies a 12–36 V supply range.

What type of lamp does ELDC use?
A white LED light source.

Does ELDC have its own flashing circuit?
Yes. NICE specifies an internal flashing function.

What is the maximum operating cycle?
50%, specified as approximately 5 seconds ON and 5 seconds OFF.

Does ELDC include an aerial?
Yes. ELDC is officially described by NICE as a flashing LED light with an integrated aerial.

Is the ELDC aerial itself a radio receiver?
No. The aerial works with a compatible radio receiver; the ELDC does not store remote controls.

Is ELDC waterproof?
No. It has an official IP44 rating and is suitable for correctly installed outdoor use, but it should not be described as waterproof or submersible.

What is the operating temperature?
Approximately -20°C to +50°C.

What are the ELDC dimensions?
Approximately 132 × 72 × 155 mm.

Can ELDC be wall mounted?
Yes. NICE allows installation on approved horizontal or vertical surfaces.

Can ELDC work with NICE ROBUS?
Yes, with compatible ROBUS control units and the correct flashing-light output. ELDC is included in current NICE ROBUS kit configurations.

Can ELDC work with NICE RUN?
Yes, where the RUN control unit provides the appropriate compatible flashing-light output.

Can ELDC work with NICE TOONA or WINGO?
Yes, when connected to a compatible swing-gate control unit providing the correct output.

Can ELDC work with a parking barrier?
Yes. NICE officially lists road-barrier automation as an intended application for the ERA EL flashing-light range.

Can ELDC be connected directly to 230V?
No. ELDC is a 12–36 V model. For high-voltage applications, verify the correct lamp model and control-unit output before connection.

What is the difference between ELDC and ELAC?
ELDC uses a 12–36 V supply, while ELAC is the higher-voltage version specified for 90–240 V AC, 50/60 Hz.

Does the flashing light detect vehicles or obstacles?
No. ELDC provides a visual warning only. Photocells, safety edges and loop detectors perform obstacle or vehicle detection functions.

Do you provide NICE ELDC installation in UAE?
Yes. Installation, replacement and technical support are available for compatible NICE gate, garage-door and parking-barrier systems throughout the UAE.
