NICE EKS Era Outdoor Key Selector Switch UAE

NICE EKS Key-Operated Gate Control Selector UAE

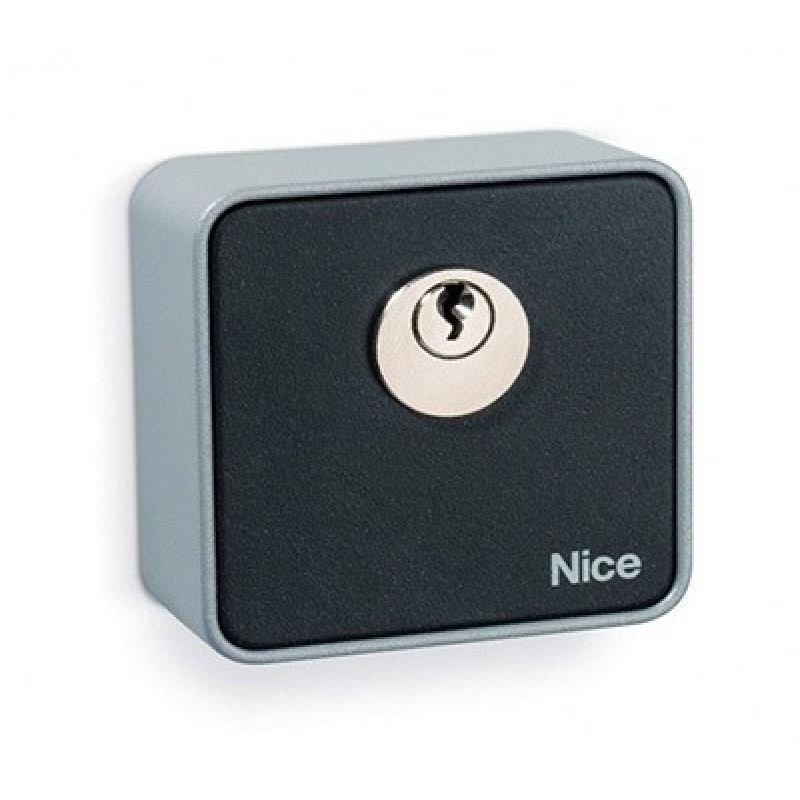

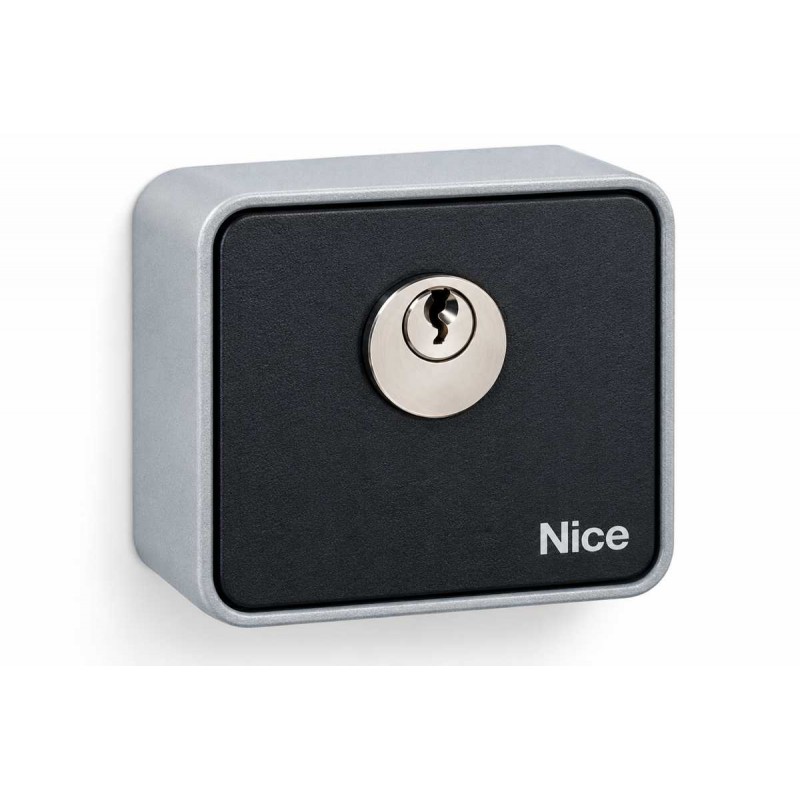

The NICE EKS Era Key Selector is a genuine NICE outdoor key-operated selector switch designed to provide secure manual command control for compatible automatic gates, parking barriers, garage doors, shutters and other automation systems.

The EKS is a surface-mounted key selector with a round lock cylinder. Turning the key to the left or right operates one of two internal microswitches, while a spring automatically returns the key mechanism to the centre position.

With an official IP44 protection rating, robust 70 × 70 × 32 mm housing and electrical contacts rated up to 10(2)A at 250VAC, the NICE EKS provides a simple wired control solution for residential, commercial and compatible industrial automation installations.

NICE EKS Key Features

• Original NICE Era key selector
• Official model: EKS
• Outdoor surface-mounted installation
• Round lock cylinder
• 2 key operating positions
• Left and right command positions
• Automatic spring return to centre
• 2 internal microswitches
• Changeover electrical contacts
• Contact rating up to 10(2)A at 250VAC
• IP44 protection rating
• No battery required
• No radio receiver required
• Hard-wired command control
• Suitable for compatible gate automation systems
• Suitable for barriers and garage-door controllers
• Compact 70 × 70 × 32 mm housing
• Approx. 360 g weight

NICE EKS Technical Specifications

Brand	NICE
Series	Era Key Selector
Model	EKS
Product Type	Key-Operated Selector Switch
Installation	Surface Mounted / Outdoor
Lock Cylinder	Round Cylinder
Key Positions	2 Positions – Left and Right
Return Mechanism	Spring Return to Centre
Internal Contacts	2 Microswitches with Changeover Contacts
Contact Rating	10(2)A – 250VAC
Protection Rating	IP44
Dimensions	70 × 70 × 32 mm
Weight	Approx. 360 g
Power / Battery	No Battery Required

2-Position Key Operation

The NICE EKS provides two operating directions: turn the key left or turn the key right.

After the key is released, the internal spring returns the selector to its centre position.

This makes it suitable for automation commands such as:

• OPEN / CLOSE
• UP / DOWN
• START / PEDESTRIAN
• Two separate command inputs

The actual function depends entirely on how the selector is wired to the connected control board.

2 Internal Microswitches

The EKS contains two microswitches with changeover contacts.

Each key direction can therefore operate a separate electrical command.

This is useful where a controller provides separate OPEN and CLOSE terminals or where two different automation functions are required.

Spring Return to Centre

The NICE EKS does not remain mechanically held in the left or right operating position during normal selector use.

The key mechanism is designed to return to the centre through a spring after the command is released.

This makes it especially suitable for momentary gate-control commands.

10(2)A at 250VAC Contact Capacity

NICE specifies an electrical contact capacity of 10(2)A at 250VAC for the EKS family.

For automatic gate systems, however, the selector is normally connected to low-current control-board inputs rather than used to switch the gate motor directly.

Use as a Dry-Contact Gate Command

For many gate automation systems, the safest and most common installation is to connect the EKS microswitch contacts to the controller's command terminals.

Typical inputs include:

• OPEN
• CLOSE
• START
• STEP-BY-STEP
• SBS
• PEDESTRIAN

The exact terminal numbers and logic depend on the automation control board.

Important Electrical Safety

NICE states that if the selector is used at voltages above 50VAC or 75VDC, the relevant metal parts must be correctly earthed according to the official installation instructions.

For gate and barrier automation, professional low-voltage control-input wiring is normally recommended where supported by the controller.

IP44 Outdoor Protection

The NICE EKS has an official IP44 protection rating.

This means the unit is suitable for outdoor selector applications when installed correctly, but it should not be described as fully waterproof or submersible.

Correct mounting, sealing and cable entry remain important, especially in exposed UAE installations.

Outdoor Surface Mounting

The EKS version is intended for external surface mounting.

This differs from NICE EKSI, which is the recessed / flush-mounted version.

NICE EKS vs EKSI

Feature	EKS	EKSI
Installation	Surface Mounted	Recessed / Flush Mounted
Cylinder	Round	Round
Protection	IP44	IP44
Dimensions	70 × 70 × 32 mm	70 × 70 × 80 mm
Weight	360 g	450 g

NICE EKS vs EKSEU

The EKS uses the NICE round-cylinder format, while the EKSEU version uses a European-style cylinder.

Both are external surface-mounted selectors, but their cylinder and housing depth differ.

Model	Cylinder	Mounting	Dimensions
EKS	Round	Surface	70 × 70 × 32 mm
EKSEU	European	Surface	70 × 70 × 43 mm

NICE Era Key Selector Family

The NICE Era key-selector family includes several configurations:

• EKS – round cylinder, surface mounted
• EKSEU – European cylinder, surface mounted
• EKSI – round cylinder, recessed mounted
• EKSIEU – European cylinder, recessed mounted

Coded EKS Versions

Current NICE catalogue documentation also lists coded EKS references such as EKS1001 through EKS1010.

These correspond to selector units supplied with predefined key coding. When ordering replacement selectors or extra keys, the exact key code should be checked.

Replacement Key

NICE lists the CHS neutral key accessory for EKS and EKSI selectors.

Key compatibility and final key cutting/coding should match the installed lock cylinder.

No Battery Required

The NICE EKS is a mechanical/electrical wired selector and does not require a battery.

This makes it useful as a dependable local command point even where radio remotes are unavailable or batteries are flat.

No Radio Receiver Required

Unlike a gate remote, the EKS does not communicate by 433.92 MHz or another radio frequency.

It is physically wired to the automation controller or relevant command circuit.

NICE EKS vs Gate Remote Control

Feature	NICE EKS	Gate Remote
Control Method	Physical Key + Wired Contact	Wireless Radio
Battery Required	No	Yes
Receiver Required	No Radio Receiver	Yes
Operating Distance	At Installed Selector	Wireless Range
User Authentication	Physical Key	Stored Radio Transmitter

Gate Backup Command

The EKS can provide a useful alternative local command method where the user does not want to rely solely on radio remotes.

It should not be confused with a mechanical motor-release key. The EKS sends an electrical command to the automation system; it does not manually disengage the motor gearbox.

Sliding Gate Applications

The NICE EKS can be connected to compatible NICE sliding gate control units providing START, SBS, OPEN, CLOSE or similar wired command inputs.

It can be used with compatible residential and commercial NICE sliding automation systems when correctly wired.

Swing Gate Applications

The selector can also operate compatible NICE swing gate control boards through their wired command terminals.

One direction may be programmed for full opening while another can be assigned to another supported command if the controller permits it.

Parking Barrier Applications

The EKS is suitable for compatible parking barrier controllers where a local key-operated opening command is required.

This is useful at security gates, car parks, guard houses and staff entrances.

Garage Door Applications

Compatible garage door controllers can use the EKS where external wired command inputs are available.

Rolling Shutter Applications

The official NICE instructions also address connection scenarios involving rolling-shutter motors.

Where mains-voltage switching is involved, electrical installation must follow the exact NICE wiring instructions and local electrical requirements.

Security Gate Applications

A keyed selector is particularly useful where gate operation should be restricted to people who physically possess the correct key.

Common locations include:

• Villa entrances
• Building gates
• Warehouse entrances
• Security checkpoints
• Staff parking gates
• Guard rooms
• Service entrances
• Industrial access points

Installation Height

The selector should be installed at a convenient operating height with sufficient clearance for inserting and turning the key.

It should also be positioned where the user can safely observe the gate or door during operation wherever manual hold-to-run logic is used.

Cable Requirements

The number of conductors required depends on whether one or both key directions will be used and on the connected control-board inputs.

Use cable suitable for the installation environment and keep low-voltage command wiring separated from mains-voltage wiring where required.

Professional Installation UAE

A typical EKS installation can include:

• Selector mounting
• Control cable installation
• Microswitch contact wiring
• OPEN / CLOSE / SBS command configuration
• Continuity testing
• Gate-control testing
• Weather sealing of cable entry

EKS Key Turns but Gate Does Not Move

If the key operates mechanically but the automation does not respond, check:

• Control cable continuity
• Microswitch operation
• Correct COM / NO / NC wiring
• Control-board command input
• Controller power supply
• Gate safety inputs
• Whether the selected input has been programmed correctly

Gate Operates Only in One Key Direction

If one key direction works and the other does not, verify the second microswitch, its wiring and the associated control-board input.

The EKS contains two separate microswitches, so each command path can be tested individually.

Maintenance

Periodically inspect the selector for:

• Loose mounting screws
• Damaged cable glands
• Water or dust ingress
• Worn keys
• Stiff lock-cylinder movement
• Loose electrical terminals

Do not force the key if the cylinder becomes difficult to operate.

Recommended NICE EKS UAE Package

• 1 × NICE EKS Key Selector
• Keys supplied with the exact stock version
• Mounting accessories if physically included
• Installation instructions if physically included

Important: Do not guarantee “2 keys included” unless every EKS unit in your current stock is supplied with two keys. NICE sells coded variants, so package contents should match the actual boxed unit.

Why Choose NICE EKS?

• Genuine NICE automation accessory
• Outdoor surface-mounted design
• 2-position key operation
• Spring return to centre
• 2 internal changeover microswitches
• 10(2)A / 250VAC contact rating
• IP44 protection
• No battery required
• No radio programming required
• Compact 70 × 70 × 32 mm housing
• Compatible with many wired automation command inputs
• Suitable for gates, barriers and garage systems

Buy NICE EKS Key Selector UAE

Buy the NICE EKS Era outdoor key selector in UAE for compatible automatic gates, parking barriers, garage doors and access-control automation systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Frequently Asked Questions

What is NICE EKS?
NICE EKS is a surface-mounted outdoor key selector with two spring-return operating positions and two internal microswitches.

Is NICE EKS a genuine NICE product?
Yes. EKS is an official NICE key-selector accessory documented in NICE manuals and gate-automation catalogues.

Is EKS suitable for outdoor installation?
Yes. It has an official IP44 protection rating when correctly installed.

How many key positions does EKS have?
Two operating positions: left and right, with automatic spring return to centre.

How many microswitches are inside?
Two microswitches with changeover contacts.

What is the electrical contact rating?
NICE specifies 10(2)A at 250VAC.

What are the dimensions?
Approximately 70 × 70 × 32 mm.

What is the weight?
Approximately 360 g.

Does NICE EKS need batteries?
No. It is a wired mechanical/electrical selector switch.

Does EKS use 433.92 MHz?
No. EKS is a wired selector and does not use radio frequency.

Can one direction open and the other close?
Yes, where the connected automation control board provides separate OPEN and CLOSE inputs and the selector is wired accordingly.

Can it operate Step-by-Step?
Yes. One key direction can be connected to an SBS / START input on a compatible controller.

Is EKS the same as the motor manual-release key?
No. EKS sends an electrical command to the controller. It does not mechanically release the gate motor.

What is the difference between EKS and EKSI?
EKS is surface mounted, while EKSI is designed for recessed installation.

Do you provide NICE EKS installation in UAE?
Yes. Installation and wiring support can be provided for compatible gate, barrier and garage-door systems throughout the UAE.
